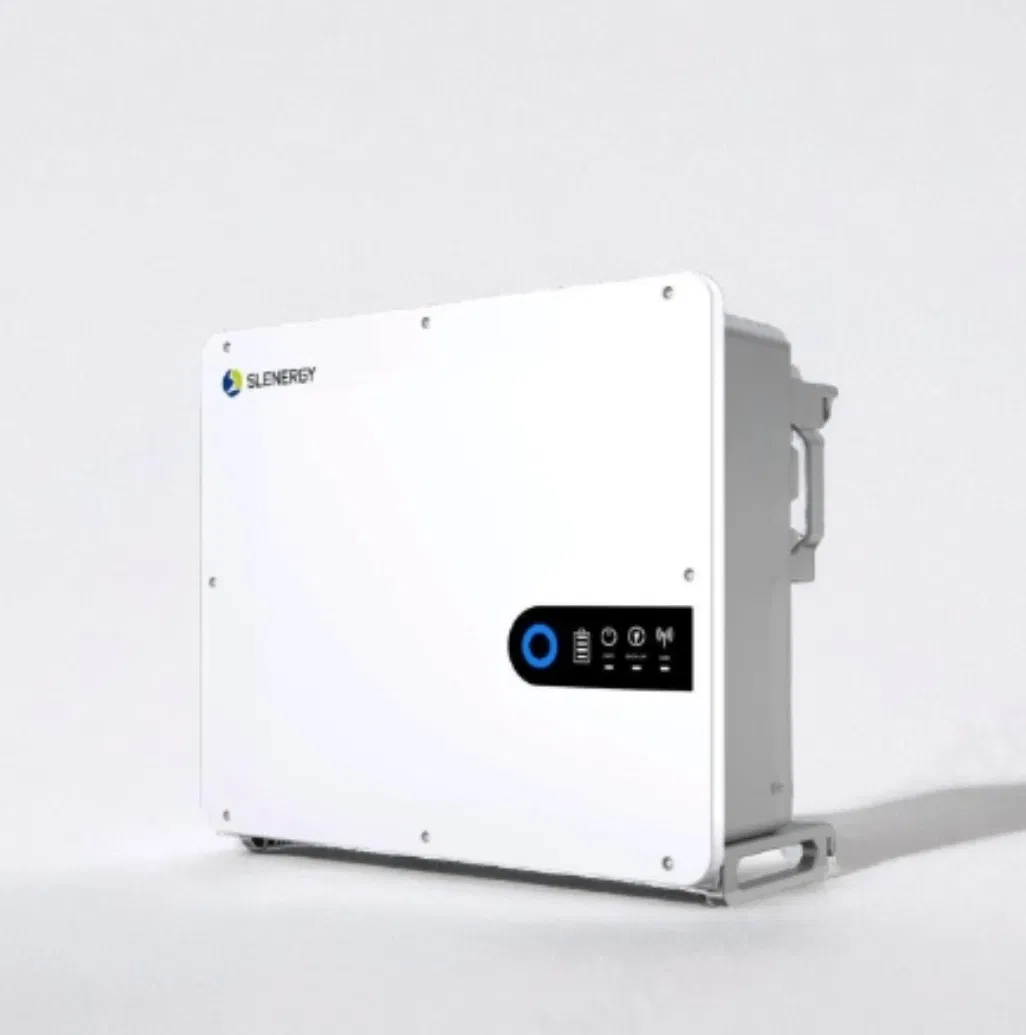

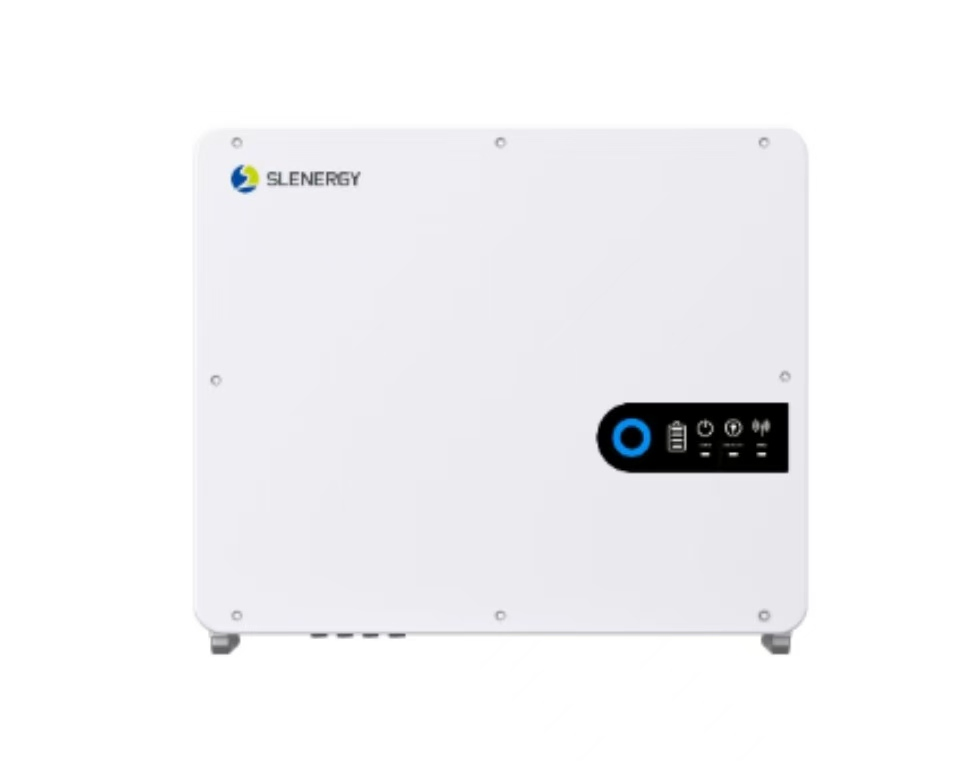

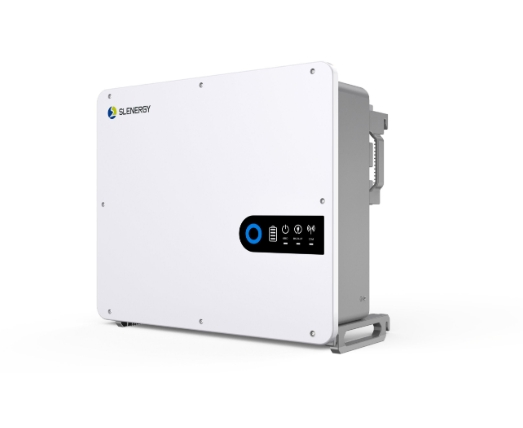

LA Charger
1 / 5
| DC Side (DC) | |
| Maximum Recommended Module Power | 15000 Wp |
| Maximum Input Voltage | 1000 V |
| Rated Input Voltage | 600 V |
| MPPT Operating Voltage Range | 135-900 V |
| Number of MPPTs / Strings | 2 / (1/2) |
| AC Grid Side (AC) | |
| Rated Output Power | 10000 W |
| Maximum Output Apparent Power | 11000 VA |
| Rated Output Voltage | 3L/N/PE; 230/400V |
| Rated Output Current | 14.5 A |
| Battery (DC) | |
| Battery Voltage Range | 135-800 V |
| Max Charging/Discharging Current | 25 A / 25 A |
| Efficiency | |
| Maximum Efficiency | 97.6% |
| MPPT Efficiency | 99.9% |
4 MPPT inputs, compatible with high-power PV modules. Supports 130% power for unbalanced loads.
Unique push-in connector saves time. Touch-free troubleshooting via smartphone app.
Fast charging/discharging with 3 battery inputs. 110% continuous output overload capability.
This product won the 2024 Red Dot Design Award in Germany. Featuring modern industrial aesthetics and SiC (silicon carbide) technology, it enhances conversion efficiency while reducing weight and volume.
The Smart V-curve scanning identifies potential issues within strings, providing precise guidance for maintenance and eliminating fire hazards.
