| Model NO. | HBGQ19M-10/J/T/G |

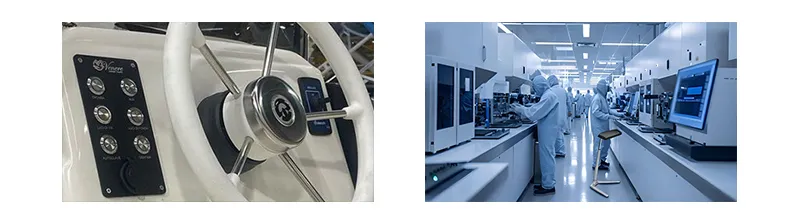

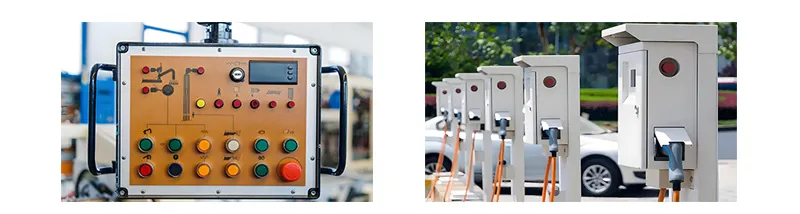

| Application | Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home |
| Type | Normal Open |
| Contact Configuration | 1NO |
| Crust Material | Aluminum Alloy |
| Protection Degree | IP65, IK08 |
| Switch Rating | 3A/250V |

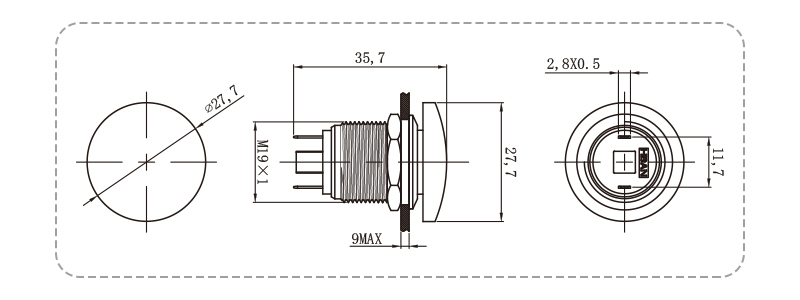

| Mounting Hole Size | 19mm |

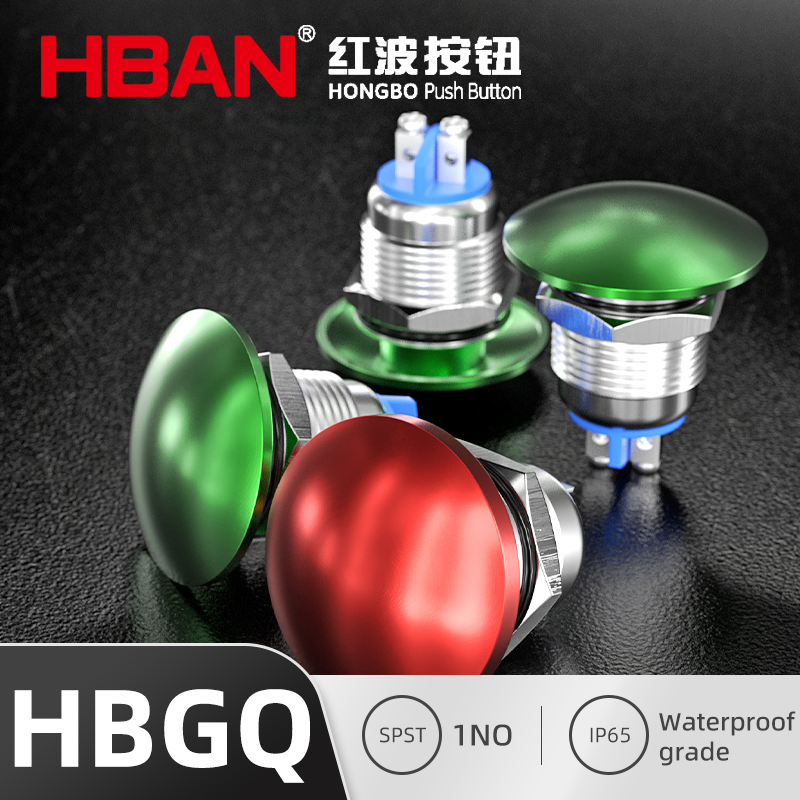

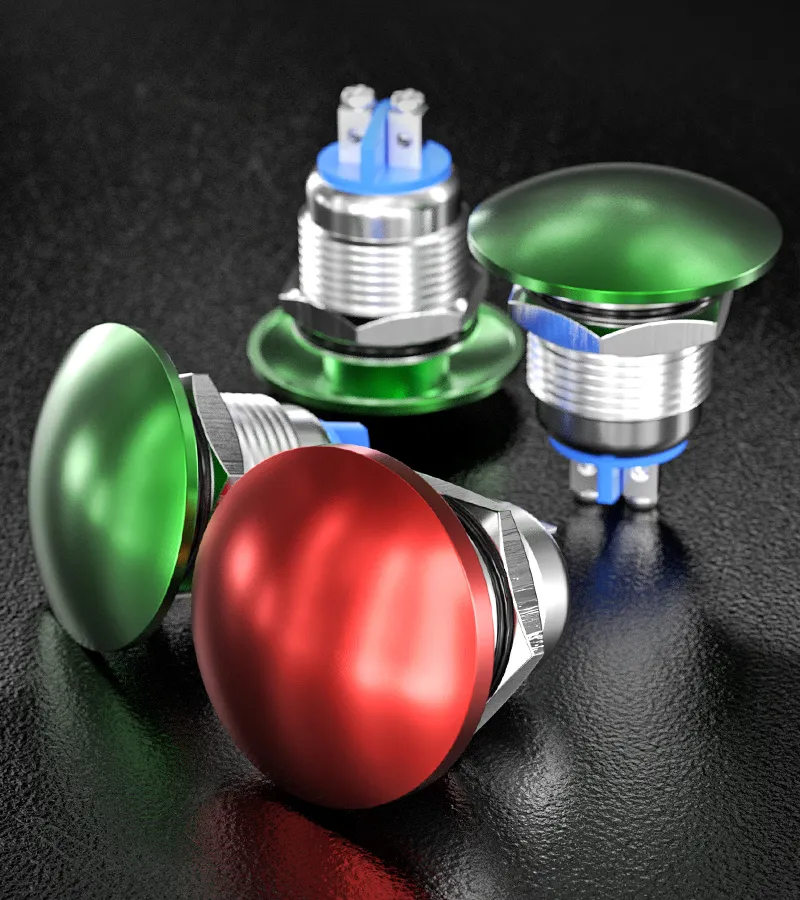

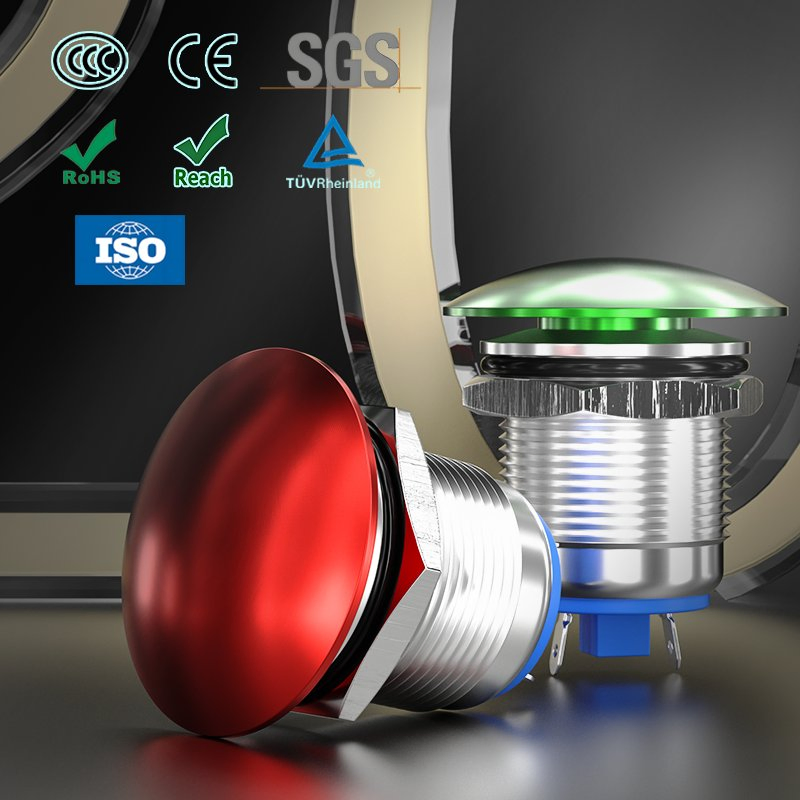

19mm Metal Zn-Al Alloy Waterproof Mushroom Push Button Switch

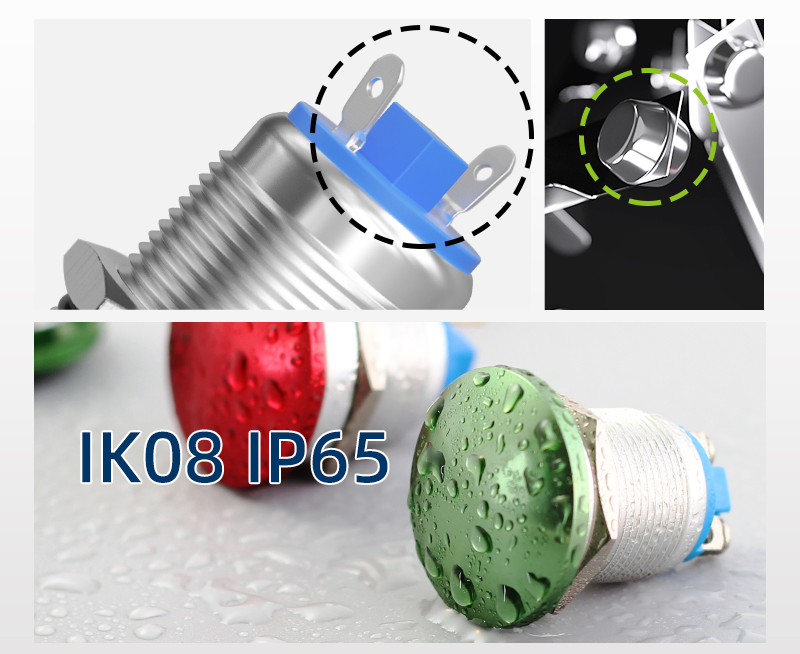

🔵 Aluminum alloy housing: IK08 IP65 protection.
🔵 High-sensitivity silver contacts: Brass base with heavy silver plating.
🔵 Terminal Options: Gold/Silver plating process with high-sensitivity conductivity.
| Mounting Hole | Ø12mm, Ø16mm, Ø19mm, Ø22mm, Ø25mm |
| Front Shape | Flat, Concave, Domed, Mushroom head |
| Lamp Type | Dot LED, Ring LED, Power Symbol (Optional) |
| Shell Material | Nickel-plated brass, Stainless steel, Aluminum, Plastic |
| Voltage | 6V - 220V AC/DC |

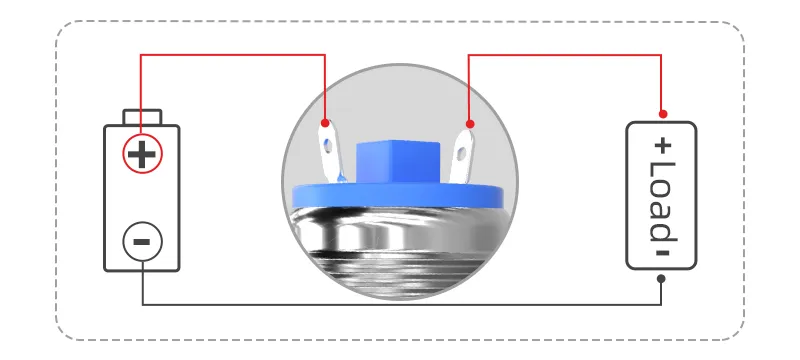

1. NO (normally open) contact function - energizes when pressed
