30kw DC Charging Single-Gun Electric Car Charger Installation for Residential and Commercial

1 / 5

30kw DC Charging Single-Gun Electric Car Charger Installation for Residential and Commercial

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.	MS01	Location	Public Use
Charging Interfaces	One Pile with One Charge	Start Mode	Credit Card, Mobile Remote, RFID
Dimensions	600mm X 470mm X 100mm	Weight	40kg
Cable Length	3.5m	Connectors	Gbt, CCS2, CCS1, Chademo, Nacs
Input Voltage	400VAC(3p+N+PE)	Output Voltage	200 - 1000VDC
Rated Power	20kW, 30kW, 40kW	Ingress Protection	IP30 / IP54

Product Description

⚡

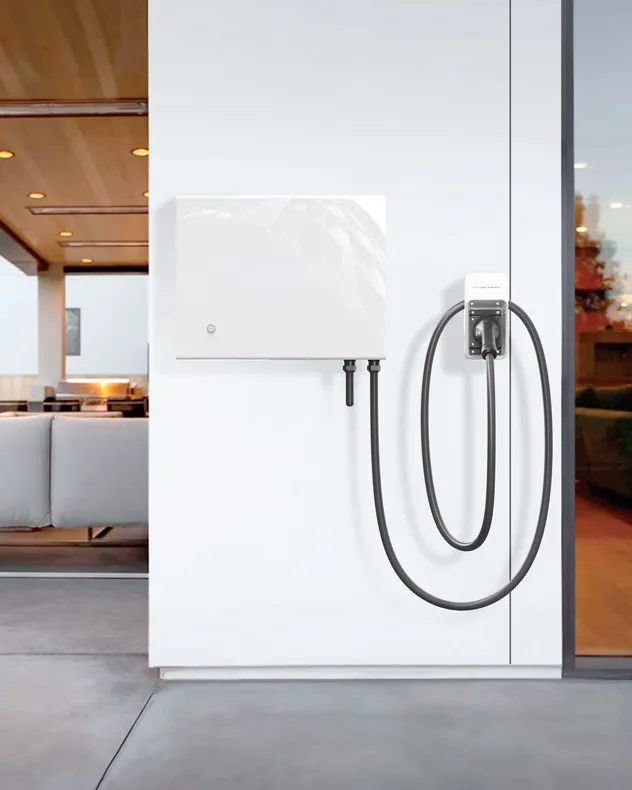

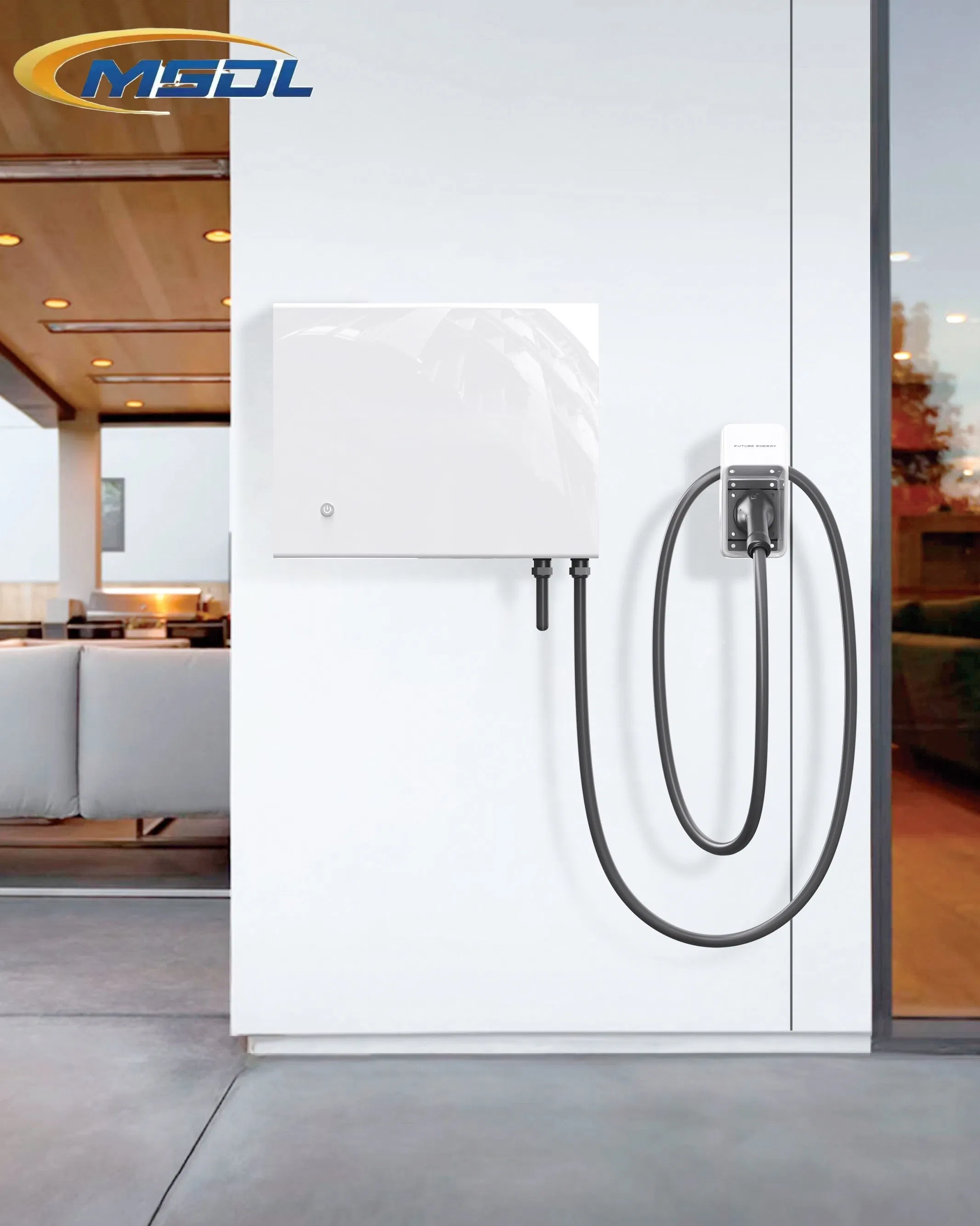

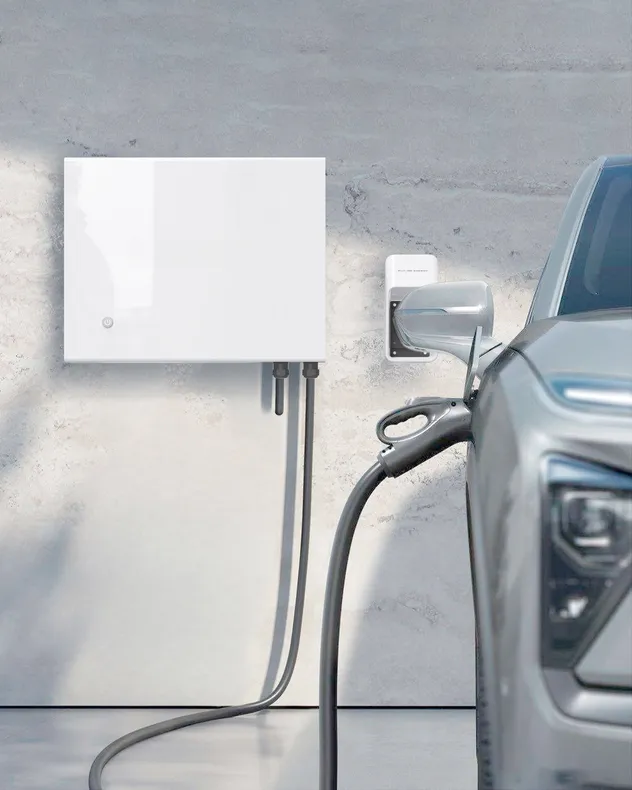

20kW-40kW Wall-Mounted DC Charging
This series features a minimalist black-and-white contrasting design, balancing aesthetics and practicality with a streamlined structure.

📐

Compact & Efficient

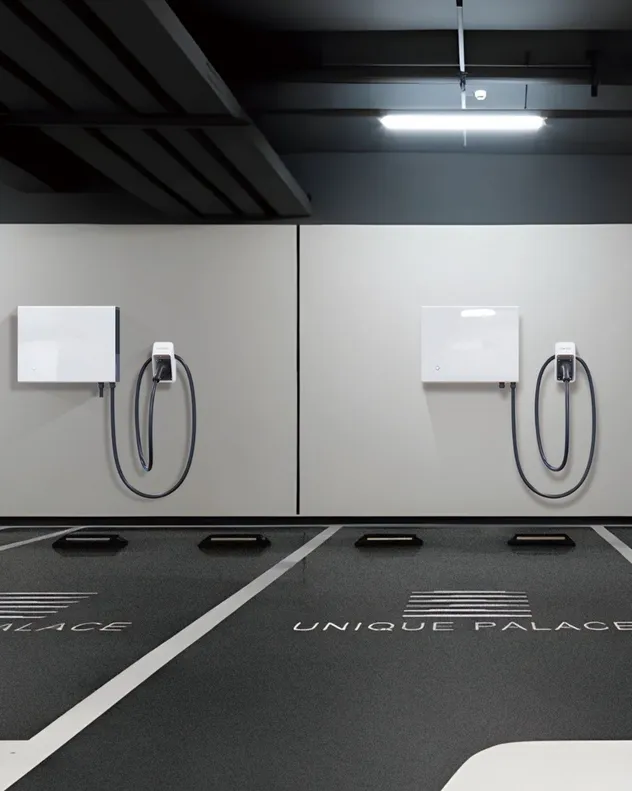

With a compact size (600mm × 470mm × 100mm) and light weight (40kg), it requires minimal space and adapts well to homes and community parking lots.

🛡️

High Performance & Safety
Peak efficiency up to 96%. Equipped with air-cooled heat dissipation and multiple safety protections such as overvoltage and lightning protection.

It meets the fast-charging needs of home and small commercial scenarios while ensuring long-term reliable use. Supports one-click charging start and comes standard with a gun holder for easy cable storage.

Detailed Specifications

Category	Feature	Details
Appearance	Weight	40kg (Wall-mounted)
	Cable Length	3m / 3.5m
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
Electrical	Input Frequency	50/60Hz
	Output Current	1-125A
	Efficiency	Peak efficiency ≥ 96%
	Power Factor	> 0.99
Environment	Operating Temp	-30°C to 75°C
	Altitude	< 2000m
	Protection	IP54 / IK10

Frequently Asked Questions

Q1: What is the warranty period for the DC charger?

A: The warranty ranges from 12 to 60 months. During this period, we provide technical support and replacement parts free of charge.

Q2: What are the available power outputs for this series?

A: We can produce power outputs ranging from 20kW up to 1.5MW to suit various residential and commercial needs.

Q3: How are the products packaged for transport?

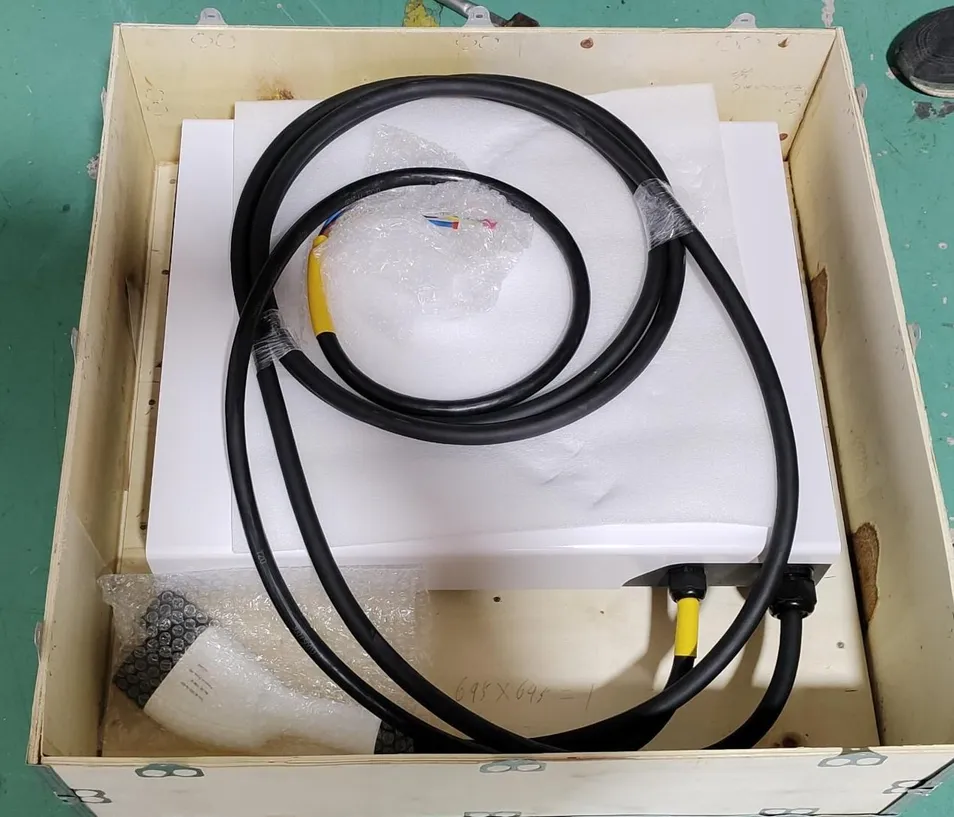

A: We use standard wooden box packaging and standard carton packaging to ensure the safety of the equipment during delivery.

Q4: What is the typical delivery time?

A: Generally, it takes 5 to 25 working days after receiving advance payment, depending on the specific items and order quantity.

Q5: Do you test the chargers before they are shipped?

A: Yes, we perform 100% testing on all goods before delivery to ensure quality and safety.

Q6: What is the difference between a Movable Charger and a Wallbox?

A: The main difference is the application scenario. Portable/Movable chargers are for mobility and temporary power top-ups, while Wallbox chargers are fixed installations for permanent use.
