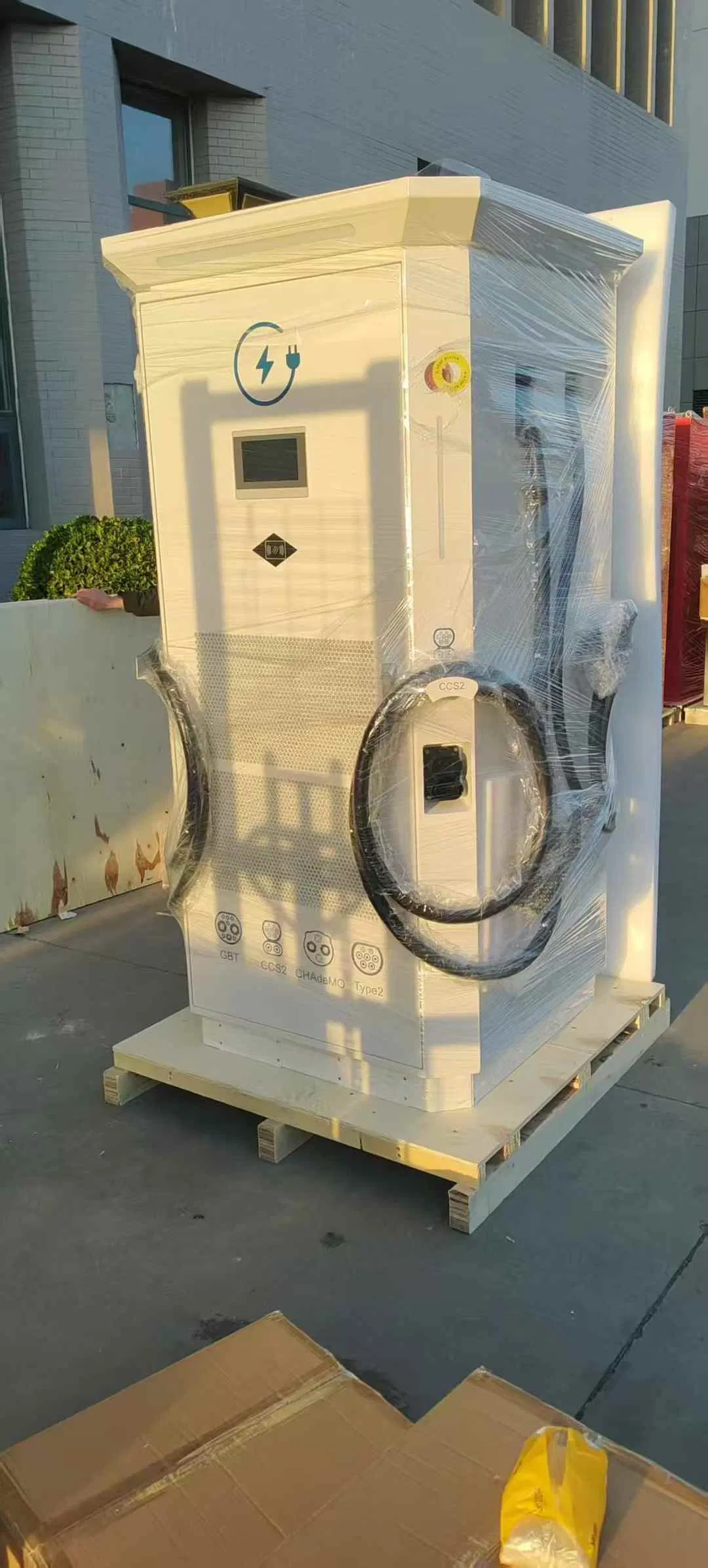

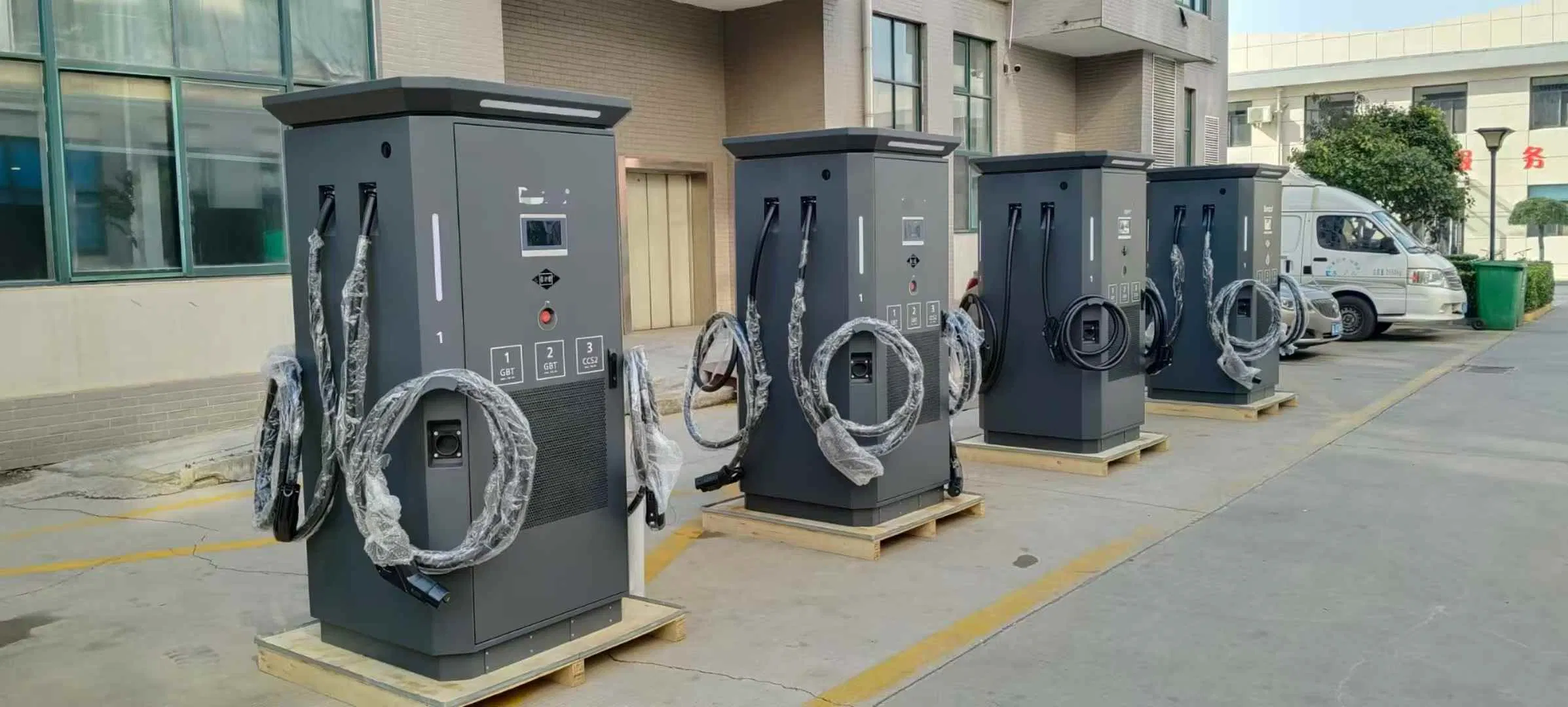

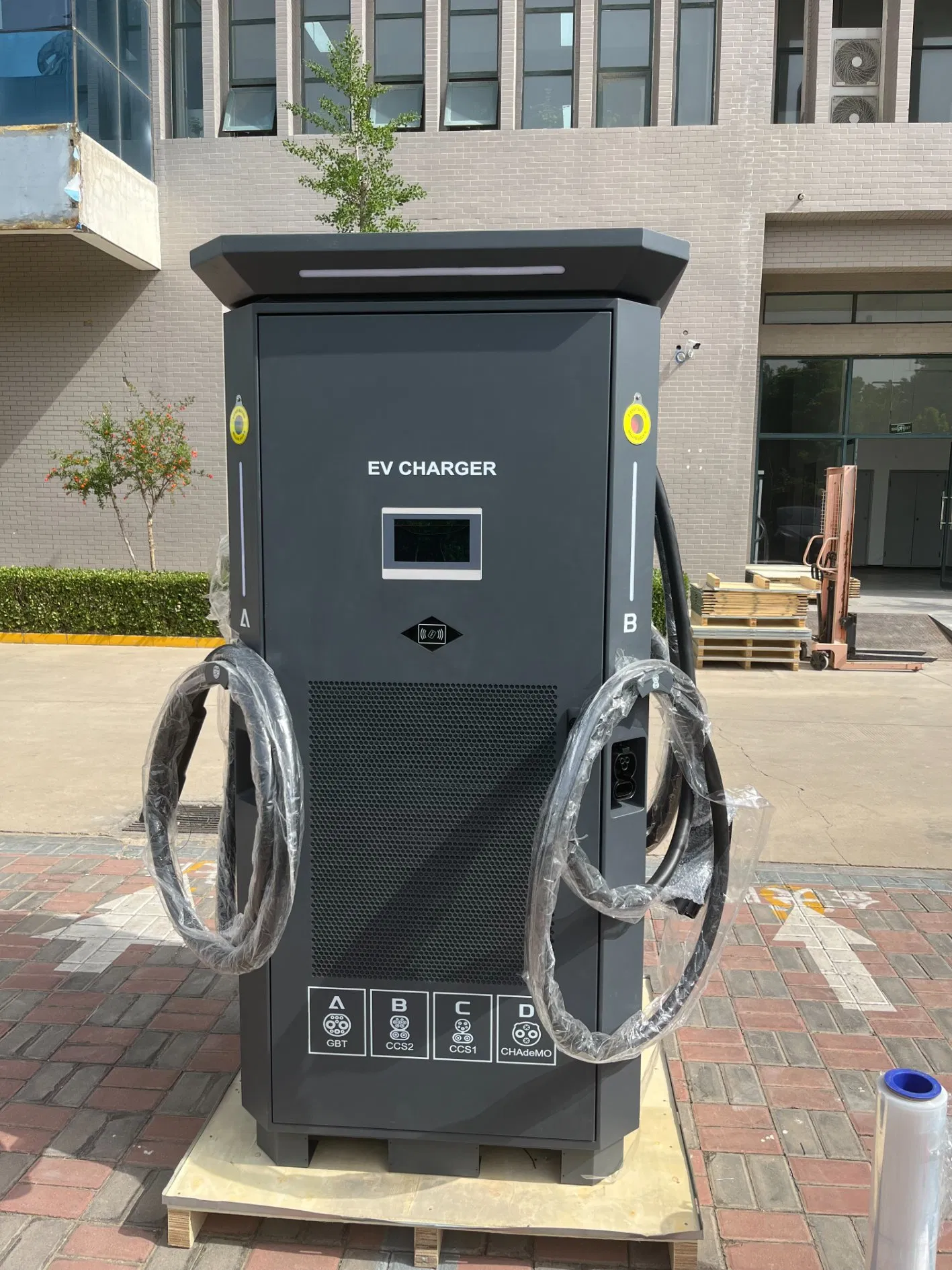

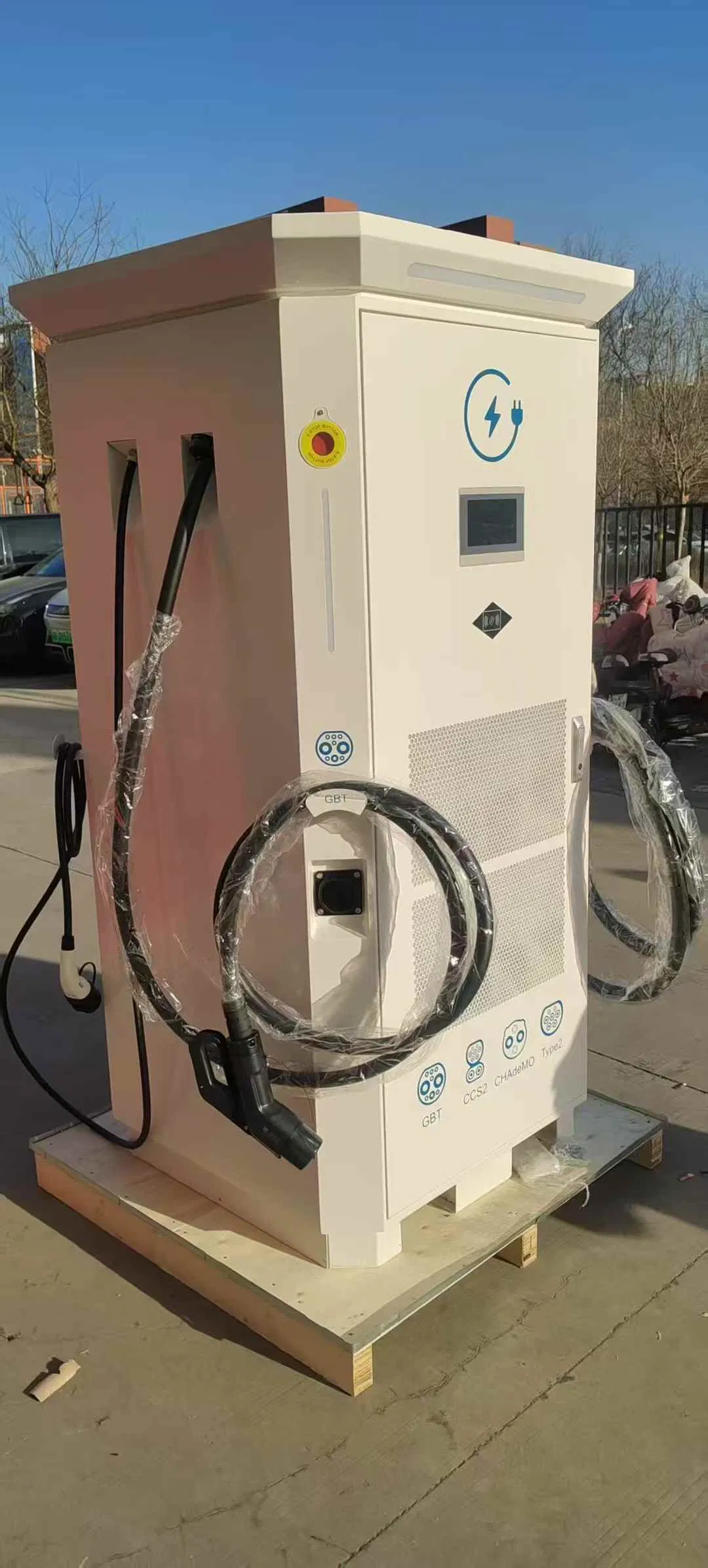

320kw DC Fast Charging Station with 4 Guns IP54 Rated for Outdoor Use

1 / 5

320kw DC Fast Charging Station with 4 Guns IP54 Rated for Outdoor Use

Customization:	Available
Connector Type:	CCS1, CCS2, CHAdeMO, GB/T
Installation:	Floor Type

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

MD-WYS-320KW

Location

Public Use

Charging Interfaces

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

Rated Power

320kw

Rated Input Voltage

380VAC±15%

Output Voltage

150-1000VDC

Max Output Current

300A

Display

7" LCD Touch Screen

Network

4G, WiFi, Ethernet

Protection

IP54

Dimensions

1000*1000*1970mm

⚡ Product Description

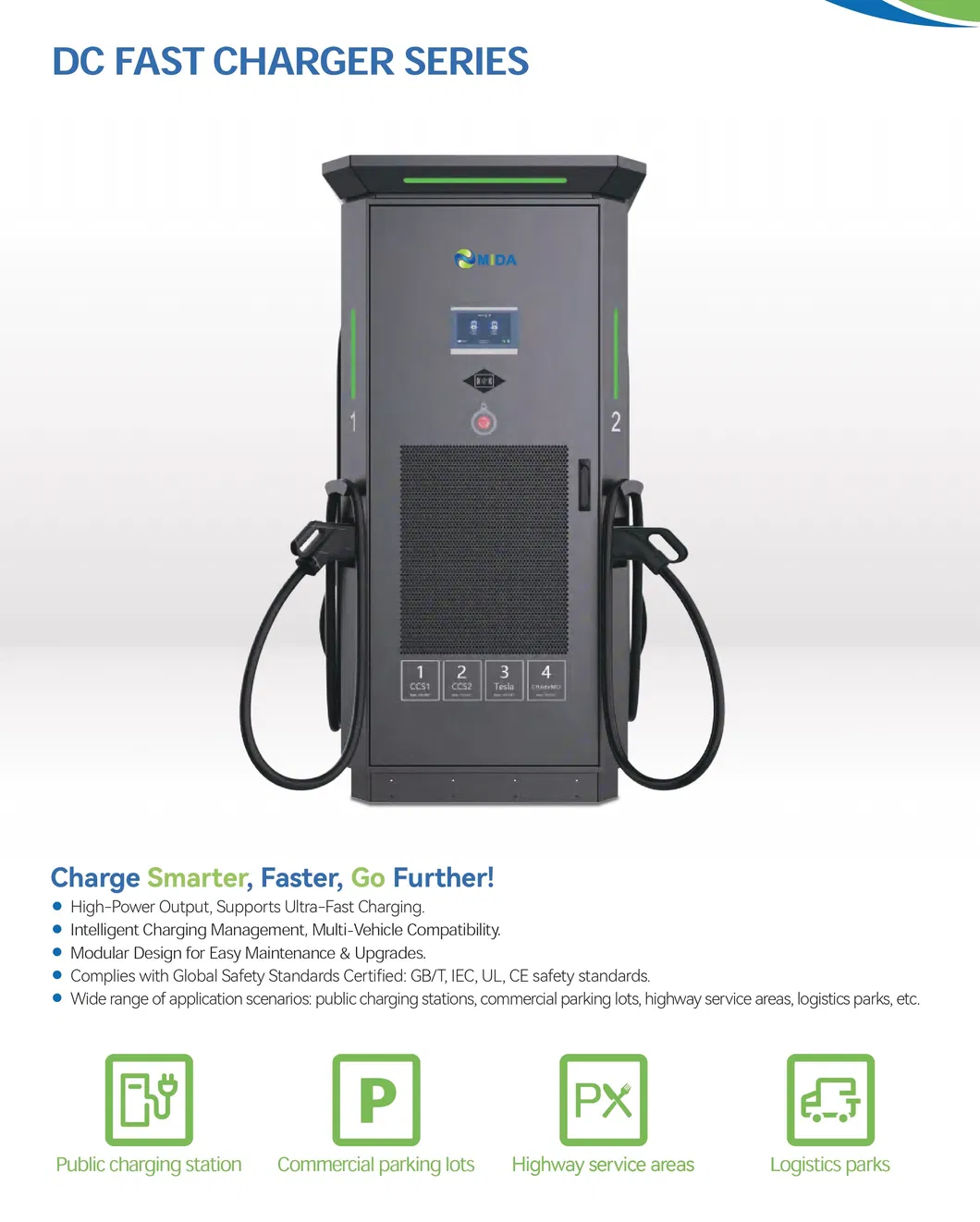

320kW DC Fast Charging Station with 4 Guns | IP54 Rated for Outdoor Use

Model	MD-WYS-320KW
Rated Power	320kW
Efficiency	>95% at nominal output power
Output Voltage Range	150-1000Vdc
Emergency Stop	Manual release switch & button isolation
Authentication	RFID / POS / APP
Protocols	CHAdeMO2.0/ DIN70121/ ISO 15118/ IEC61851
Input Protection	OVP, OCP, OPP, OTP, UVP, Surge Protection

❓ Frequently Asked Questions

Q1: What is the maximum output power of this charging station? A: This DC fast charging station delivers a maximum rated power of 320kW, suitable for high-speed charging requirements.

Q2: Can this station be installed outdoors? A: Yes, it is IP54 rated, which provides protection against dust and water, making it ideal for outdoor public use.

Q3: What charging protocols are supported? A: It supports a wide range of standards including CHAdeMO 2.0, DIN 70121, ISO 15118, and IEC 61851 series.

Q4: How do users authenticate and start charging? A: Users can start the charging process via RFID cards, Credit Card payments (POS), or through a mobile application.

Q5: What is the output voltage range? A: The station offers a broad output voltage range from 150VDC to 1000VDC, compatible with various electric vehicle battery systems.

Q6: Is it equipped with safety protection features? A: Absolutely. It includes over-voltage, over-current, over-temperature, and surge protection, along with emergency stop controls.

320kw DC Fast Charging Station with 4 Guns IP54 Rated for Outdoor Use

Product Description

320kW DC Fast Charging Station with 4 Guns | IP54 Rated for Outdoor Use

Related Products

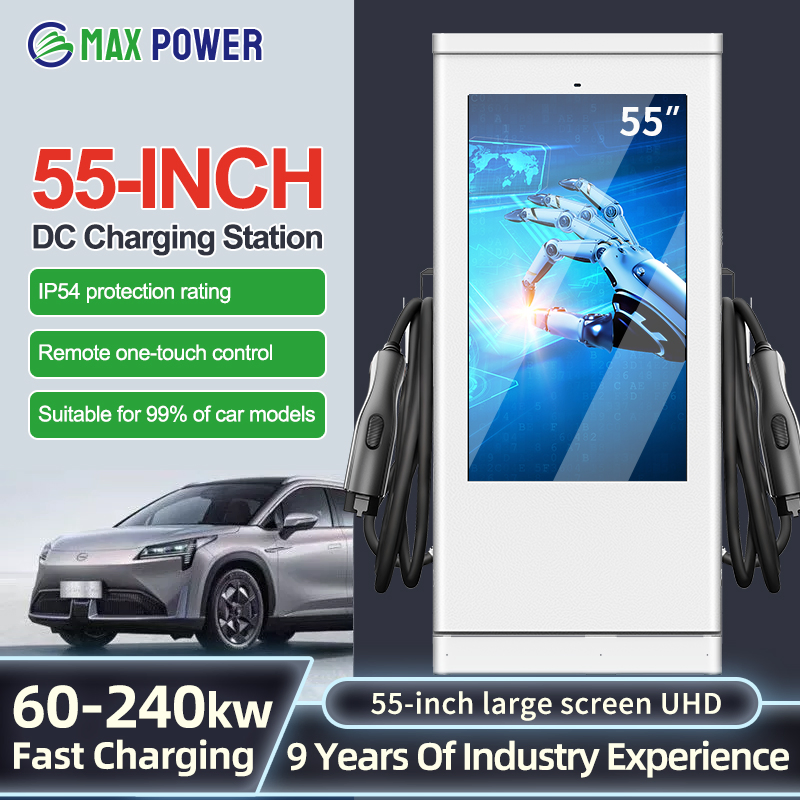

60kw/120kw/180kw Ocpp 1.6j Chademo, CCS2, Type 2 DC+ AC Connector EV Car Charging Station Charging Pile for Outdoor Commercial Use

Premium Type 2 Electric Vehicle Charging Station Connector

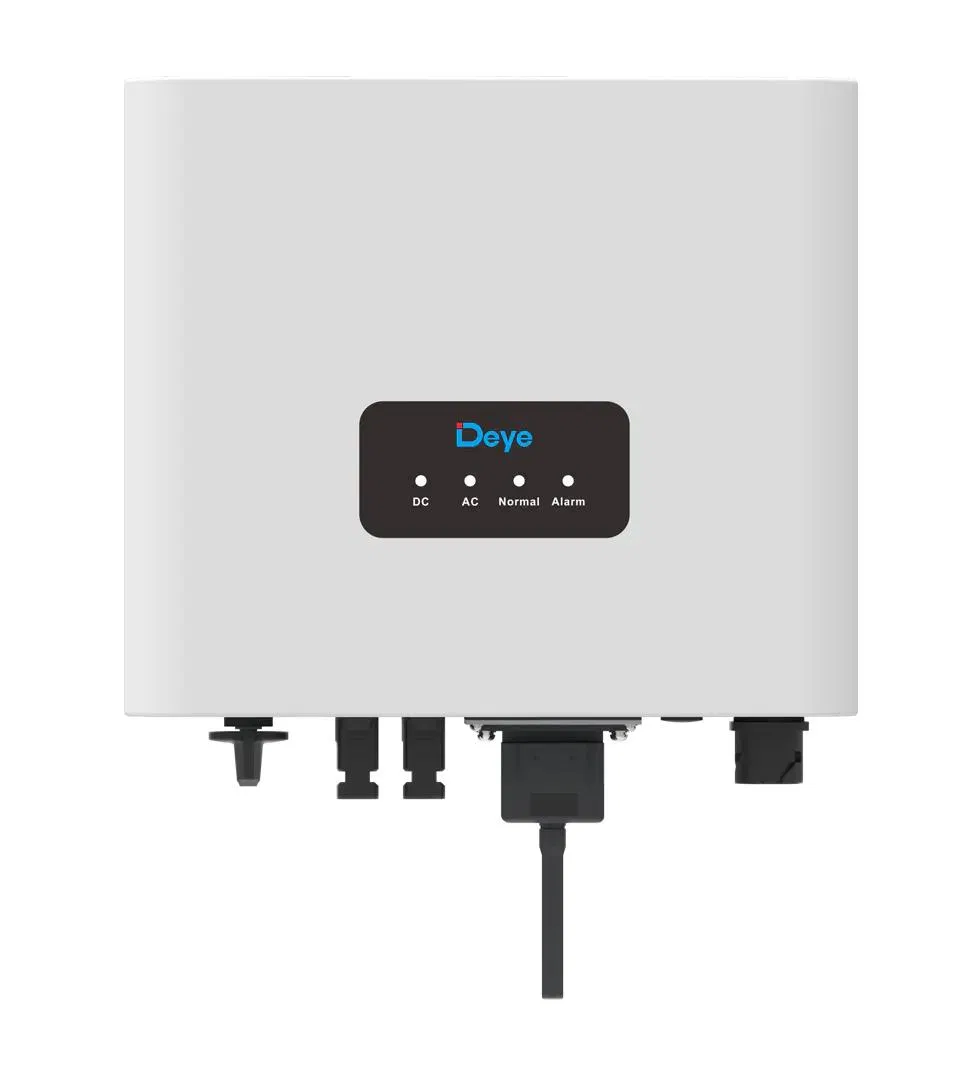

Solar Storage Solution Deye Sun-5K-Sg01lp1 - Smart Power Management

Professional Factory 380kw Outdoor OEM/ODM DC EV Charger Stations APP/RFID Ocpp1.6 Chademo Gbt CCS2 Electric Car Charging Station

7kw Type2 Commercial EV Charger Wallbox with Triangular LED Indicator for Public Parking &amp; Fleet Operation

Fast EV Charger European Shopping Centre Charging Station

Ocpp 1.6 Certified 22kw EV Charger Dual Mount, RFID/APP for Office Building Use

Easco GB2312 Level 2 Font Rich One-on-One Installation Guidance License Plate Recognition Device Parking Lot Management Hospitals

30kw Commercial DC EV Charger for Workplace and Hotel Charging

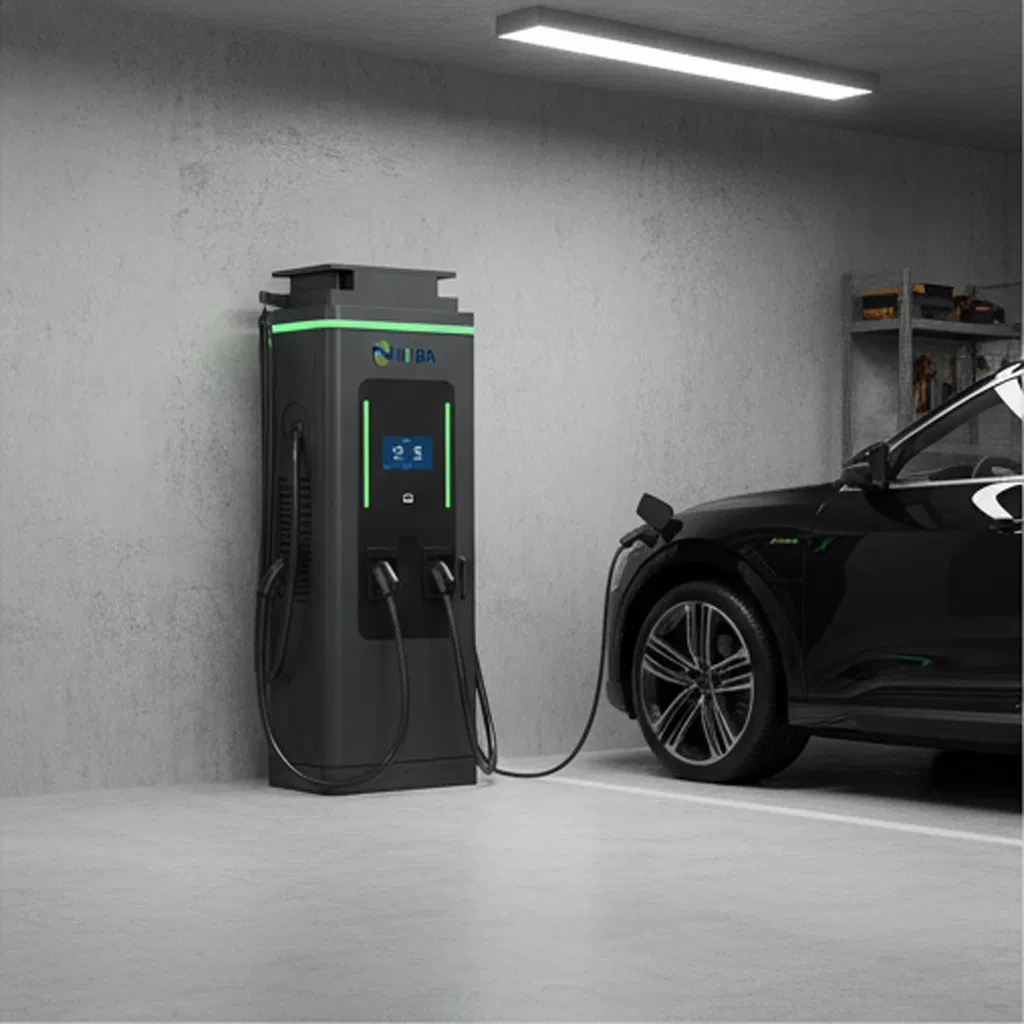

320kw/350kw/400kw CCS1/CCS2/Chademo EV DC Fast Charging Station Ocpp1.6/2.0

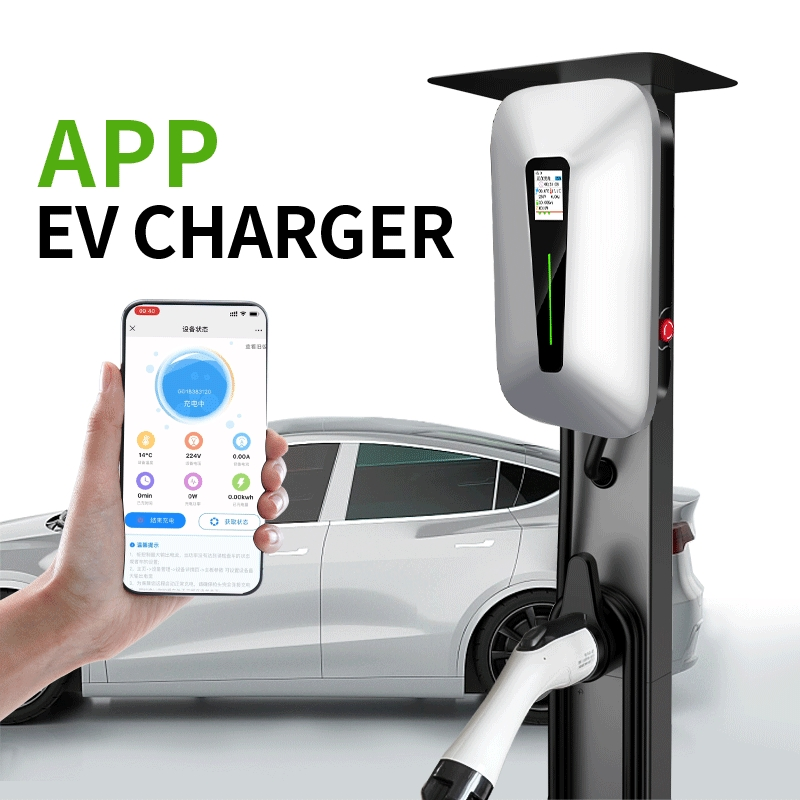

7kw Type2 Commercial EV Charger Wallbox with Triangular LED Indicator for Public Parking & Fleet Operation
