Basic Information
Name
Man Lift Table Platform
Application
Workshop, Shipboard, Warehouse, Building Crane
Load Capacity
125kg - 150kg
Max Platform Height
6m, 7.5m
Certification
GS, CE, ISO 9001
Product Description

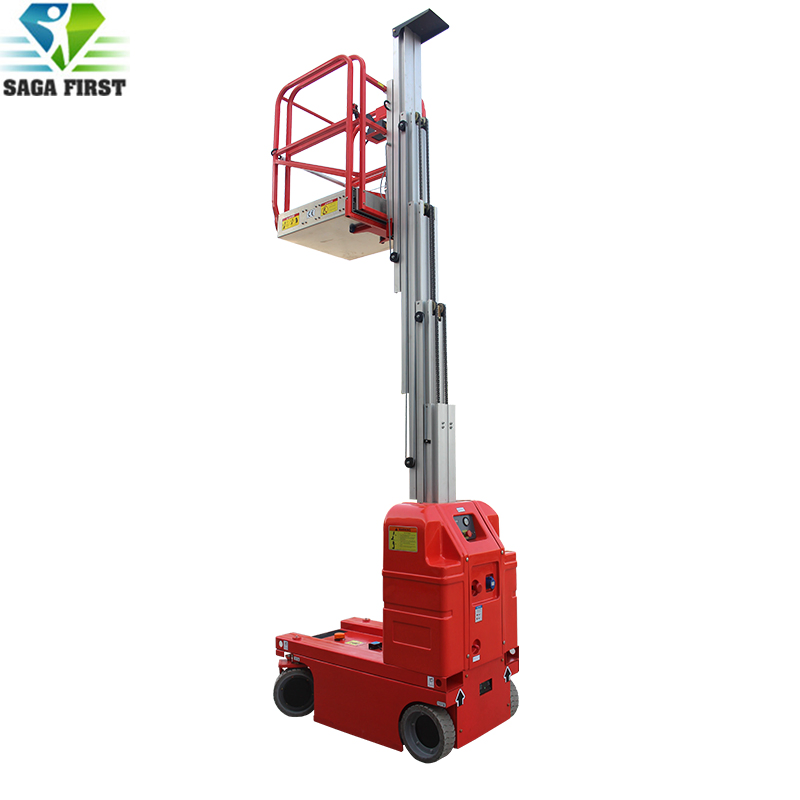

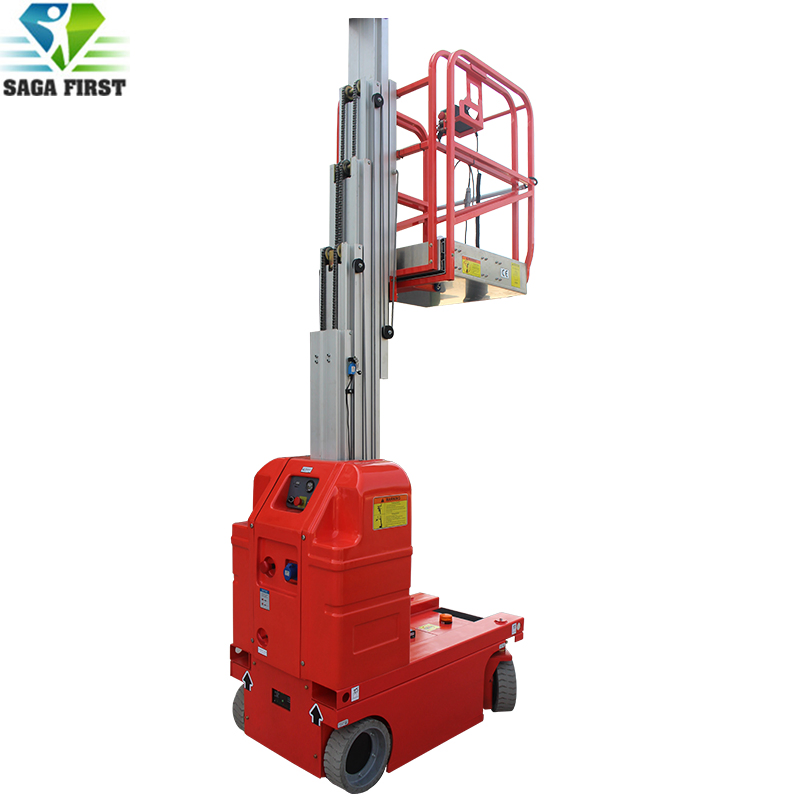

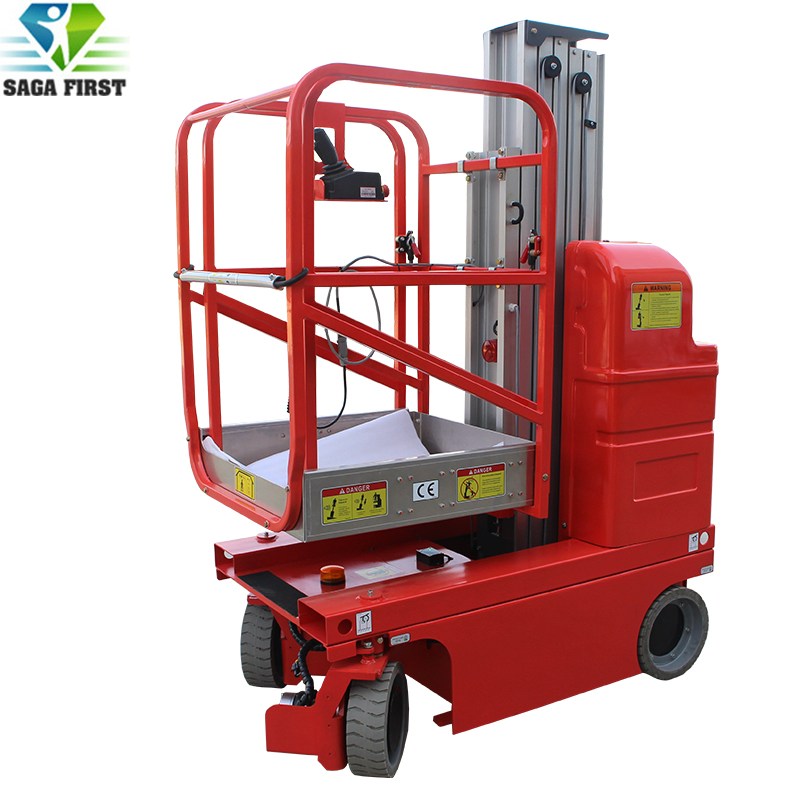

Portable One Person Operating Self Propelled Aluminum Aerial Work Lift Platform
The Single Mast Aluminum Lift Platform is renowned for its lightweight construction and high lift capabilities. Constructed from premium aluminum alloy, this product allows for effortless maneuverability. It is an ideal solution for supermarkets, factories, hotels, restaurants, stations, theaters, and exhibition halls for both indoor and outdoor maintenance.
Features & Advantages
Proportional controls
Automatic pothole protection
Drivable at full height
Non-marking tyre
Automatic brake system
Emergency lowering system
Emergency stop button
On board diagnostic system
Technical Specifications
| Model No. |
Unit |
SPA-6 |
SPA-7.5 |
| Max. Platform Height | mm | 6000 | 7500 |
| Max Working Height | mm | 8000 | 9500 |
| Load Capacity | kg | 150 | 125 |
| Overall Size | mm | 1400*760*1980 | 1400*760*1980 |
| Platform Size | mm | 660*670 | 660*670 |
| Max Drive Speed (Stowed) | km/h | 3.5 | 4 |
| Battery | V/Ah | 2X12VDC/85AH | 2X12VDC/85AH |
| Net Weight | kg | 1120 | 1190 |
Product Details & Introduction
- The walking motor consists of 2 built-in front-wheel motors, 2.2KW lifting motor.
- Two high-elastic rubber gray tires (305mm diameter).
- Telescopic guardrail can extend 480mm longitudinally.
- Load detection function prevents raising beyond rated capacity.
- Machine tilt sensing: After 2 meters, safety sensors monitor ground tilt.
- Pothole protection with automatic safety stop at 2 meters height.
- Equipped with buzzer, strobe light, horn, and emergency drop cable.

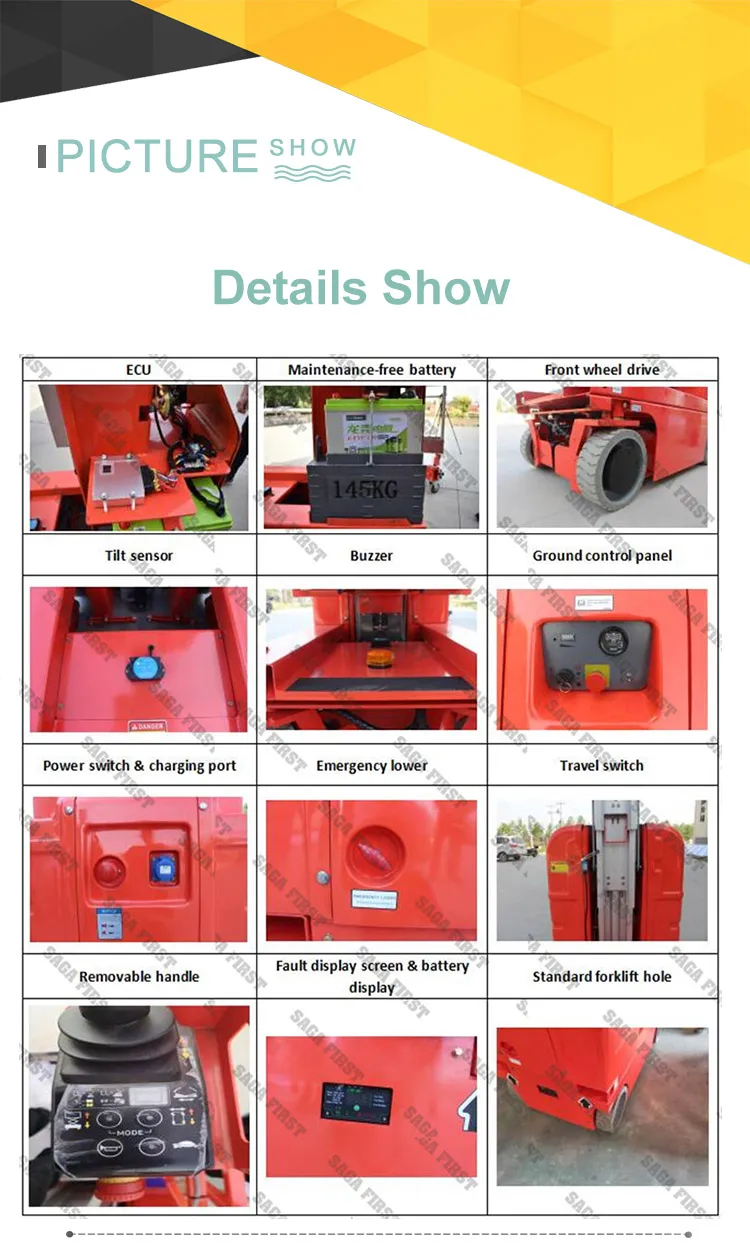

Visual Display
Customer Visits
Frequently Asked Questions (FAQ)
Can the platform be customized?
Yes, we can design customized aerial aluminum lift platforms according to your specific requirements.
What safety features are included?
The lift includes an automatic brake system, emergency lowering system, emergency stop buttons, pothole protection, and tilt sensing functions.
What is the power source for the machine?
The machine operates on a 24VDC system powered by two 100AH on-board batteries, with a charging voltage of 220VAC.
How long is the warranty period?
The product comes with a 12-month quality warranty from the date of purchase.
Are spare parts readily available?
Yes, parts of the aerial aluminum lift platform can be sent via express within 7 days if required for maintenance.
Does the machine leave marks on the floor?
No, the lift is equipped with non-marking high-elastic rubber tires, making it suitable for indoor use on delicate floors.
