Efficient Electric Bus Fleet Quick Charge System for Optimal Performance

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Installation

Floor Mounted

Housing

Metal

Input Voltage

400VAC ±15%

Efficiency

Beyond 95%

IP Class

IP55

Outlet Current

500A/850A

Dimensions

3174*1681*4866mm

Origin

China

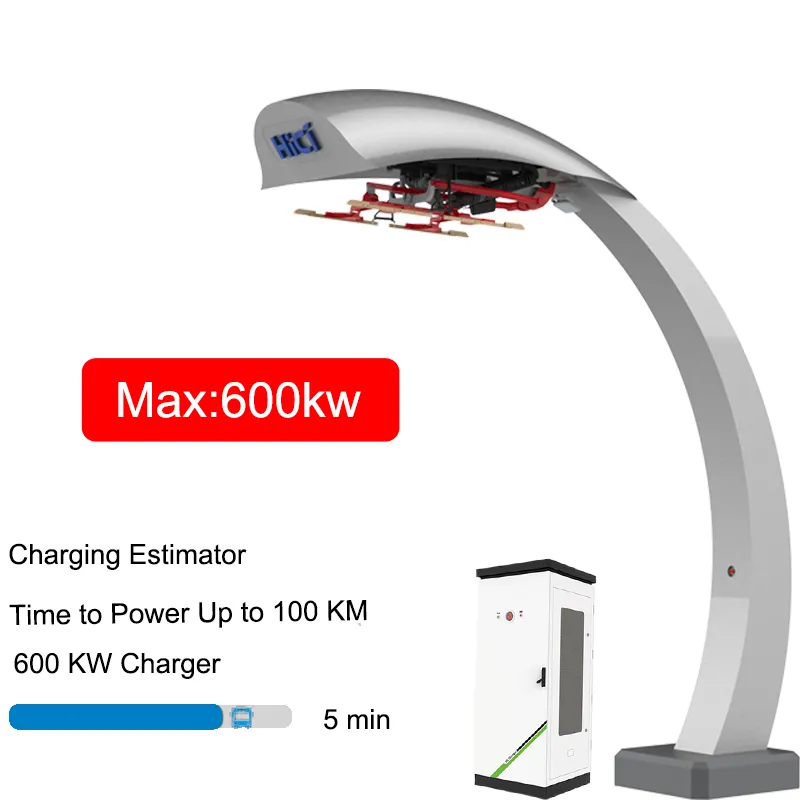

600 KW Split Type Fast Charging Solution

This Quick Charge Solution for Electric Bus Fleets features a high-power pantograph system and efficient auto-charging technology with a 600 Kw capacity. It is specifically engineered for high-demand electric bus operations.

Key Keywords:

EV bus charging solution, fast charging pantograph system, electric vehicle fast charger, split type charging station, high efficiency EV charger, auto charging system for E-bus.

Core Features:

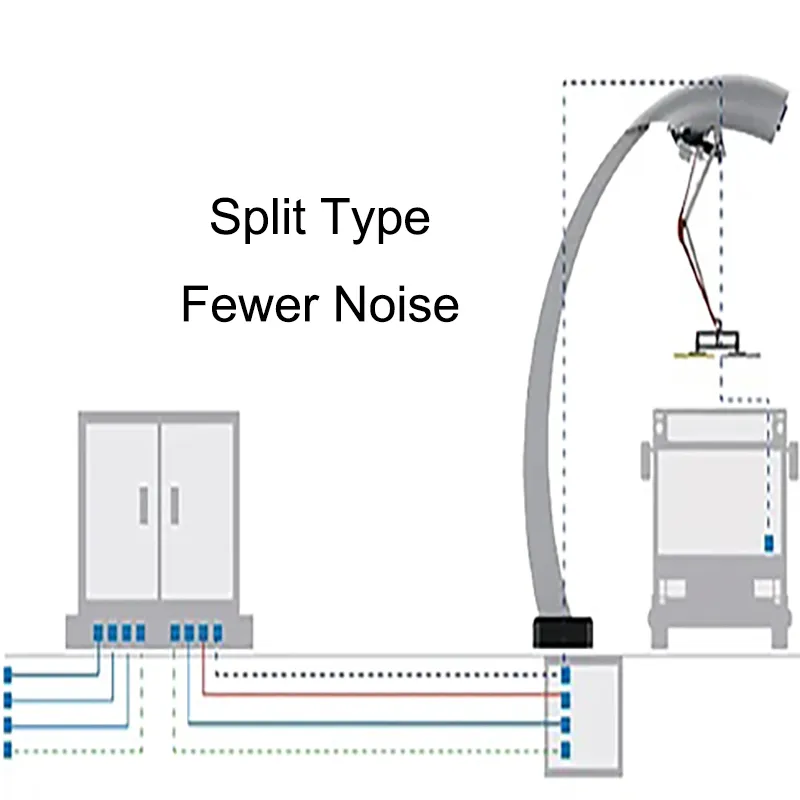

Split Type design for significantly reduced noise levels
Supports ultra-high power output up to 600 kw/h

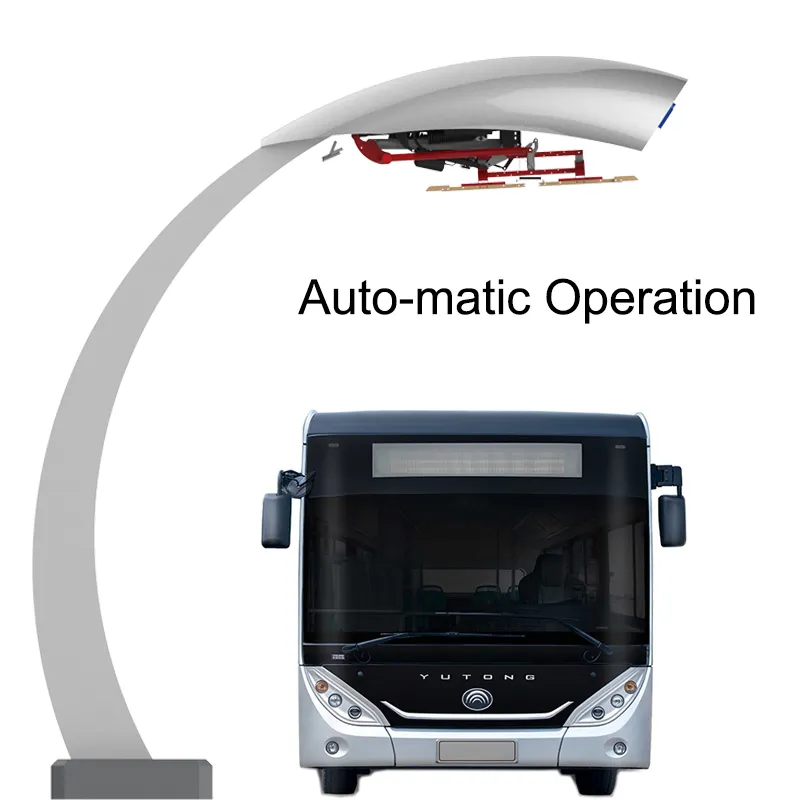

Fully automatic operation for seamless fleet management
IP55 and IK10 rated for extreme durability in outdoor environments

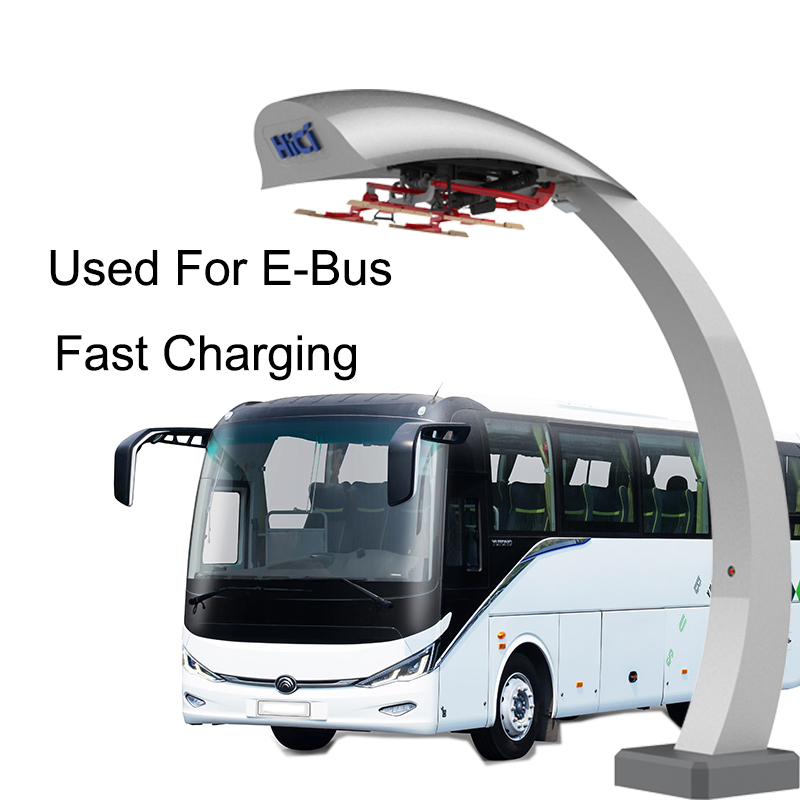

Optimized specifically for fast-charging EV buses and heavy electric trucks

Technical Production Parameters

Parameter Item		300KW Configuration	600KW Configuration
AC Input	Input Rating	400Vac±15%	400Vac±15%
	Connection	L1+L2+L3+N+PE	L1+L2+L3+N+PE
	THDi / PF	<5% / >0.99	<5% / >0.99
DC Output	Voltage Range	150-1000VDC	150-1000VDC
DC Output	Max Current	500A	850A
Environment	Operating Temp	-30~55ºC
Environment	Protection	IP55 / Natural Cooling

Product Presentation

Frequently Asked Questions (FAQ)

Q1: What is the maximum charging power of this system? A: The system supports up to 600KW split-type fast charging, ideal for high-capacity electric bus fleets.

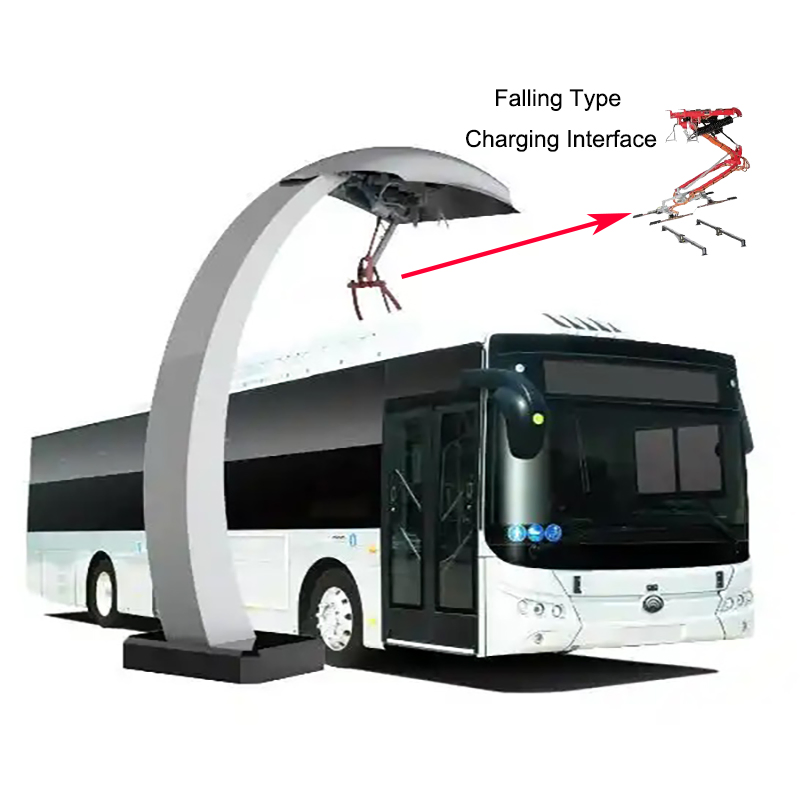

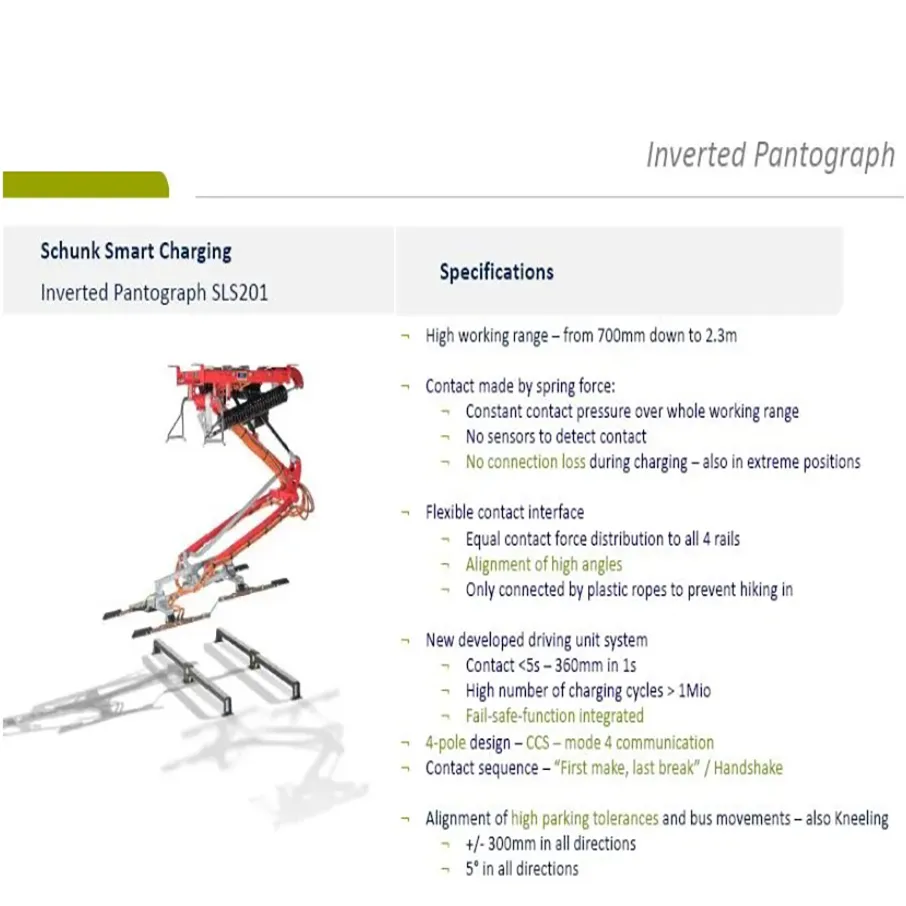

Q2: Is the charging process automatic? A: Yes, it features a pantograph system designed for automatic connection and charging without manual intervention.

Q3: Can it withstand harsh outdoor environments? A: Absolutely. It is IP55 rated for dust and water resistance and IK10 rated for impact protection.

Q4: What communication protocols are supported? A: The system supports OCPP 1.6 JSON and connects via Ethernet, 3G, or 4G for remote management and upgrades.

Q5: What is the typical lead time for production? A: The standard lead time is approximately 15 days after payment for standard configurations.

Q6: What are the input voltage requirements? A: The system operates on a standard 400VAC ±15% input at a frequency of 45-65Hz.
