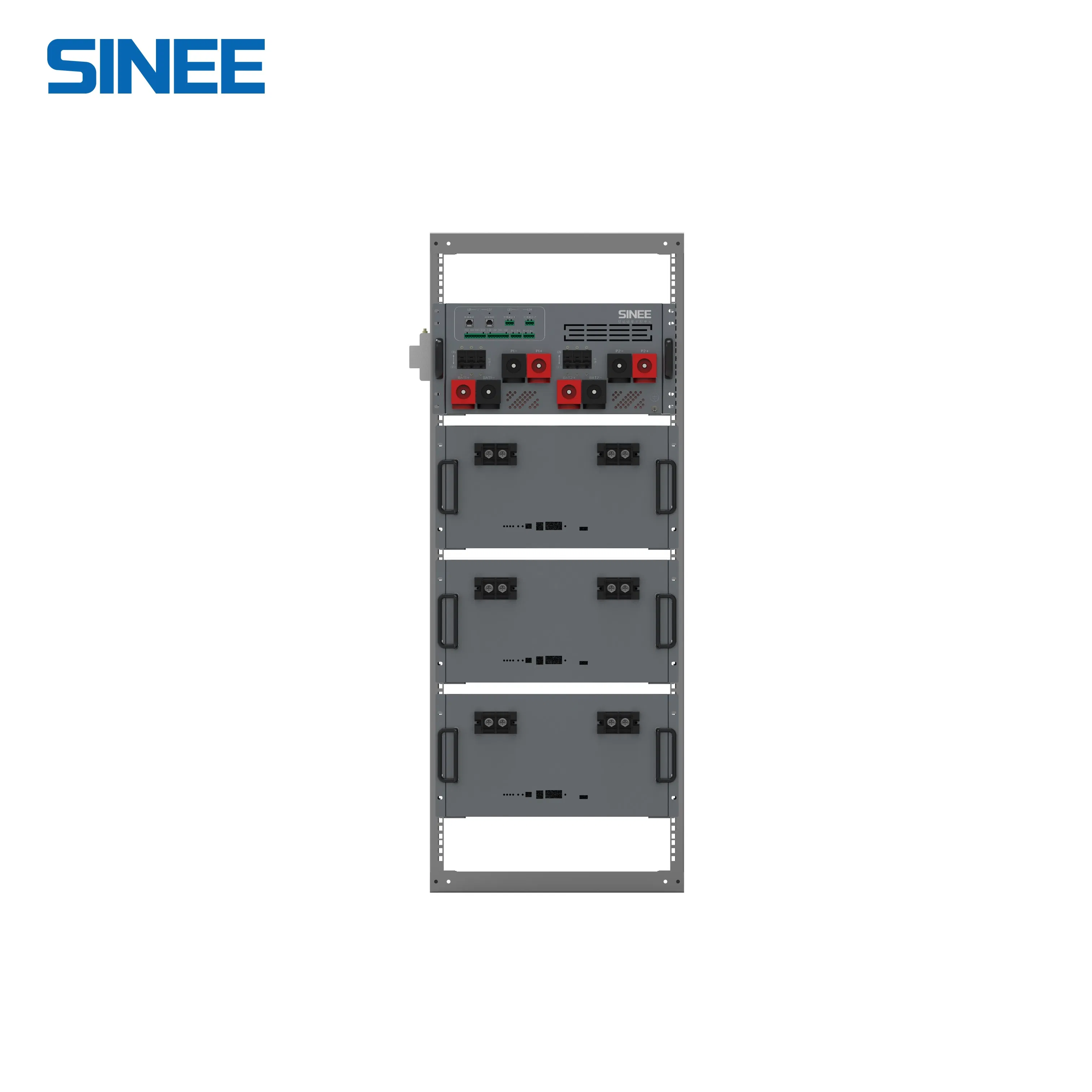

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs, thus achieving the purpose of improving load characteristics and participating in system peak regulation while maximizing arbitrage.
| Category | Lead Carbon System | Lithium Battery System | |
|---|---|---|---|
| Mechanical | Weight | 860kg (2V500Ah system) | 370kg (3.2V230Ah system) |
| Size (L*W*H) | 1040mm*540mm*1485mm | 680mm*489.5mm*1528mm | |
| Cooling | Air Cooling | Air Cooling | |
| Electrical | Power | 22kWh | 33.12kWh |
| Voltage (DC Bus) | 42VDC~58VDC | 42VDC~58VDC | |
| Efficiency | ≥95% | ≥95% | |
| MTBF | >100,000 Hours | >100,000 Hours | |
| Environment | Temp Range | -20 to 50ºC | -20 to 50ºC |
| Protection | IP21 | IP21 | |
A: It is specifically designed for communication base stations to manage peak load demand, reduce electricity costs, and participate in system peak regulation.
A: The system features a triple protection design including thermal runaway warnings, integrated DC circuit breakers, and an explosion-proof structural design.
A: Yes, the system is compatible with mainstream batteries and supports the parallel use of different types, capacities, and batches of batteries.
A: Due to its modular design, the entire deployment of a base station energy storage system can be completed in approximately 15 minutes.
A: The system supports full frontal maintenance, which means no extra maintenance channels need to be reserved, maximizing the use of space within the base station.
A: The system operates at an efficiency of ≥95% and has a Mean Time Between Failures (MTBF) of over 100,000 hours at 25ºC.
