LA Charger
1 / 5
| Model NO. | QSCDD |
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |
| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Shell Material | Customized |
| Service Life | 8 Years; 10 Years |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging |
| Charging Efficiency | ≥93% (AC Charger); ≥95% (DC Charger) |
| Power Factor | ≥0.95 (Rated Load); ≥0.92 (Light Load) |
| Harmonic Distortion | ≤5% (Total Harmonic Distortion); ≤3% |
| Voice Broadcast | Supported |
| Remote Control | Supported |
| Transport Package | Wooden Box |
| Package Size | 120.00cm * 45.00cm * 155.00cm |
| Gross Weight | 60.000kg |
⚡ Charging Pile Key Benefits:
*Flexible Expansion & Wide Compatibility
*Certified Safety & Rock-Solid Reliability
*Effortless Operation & Low-Maintenance Design
*Consistently Stable Performance for Efficient Charging

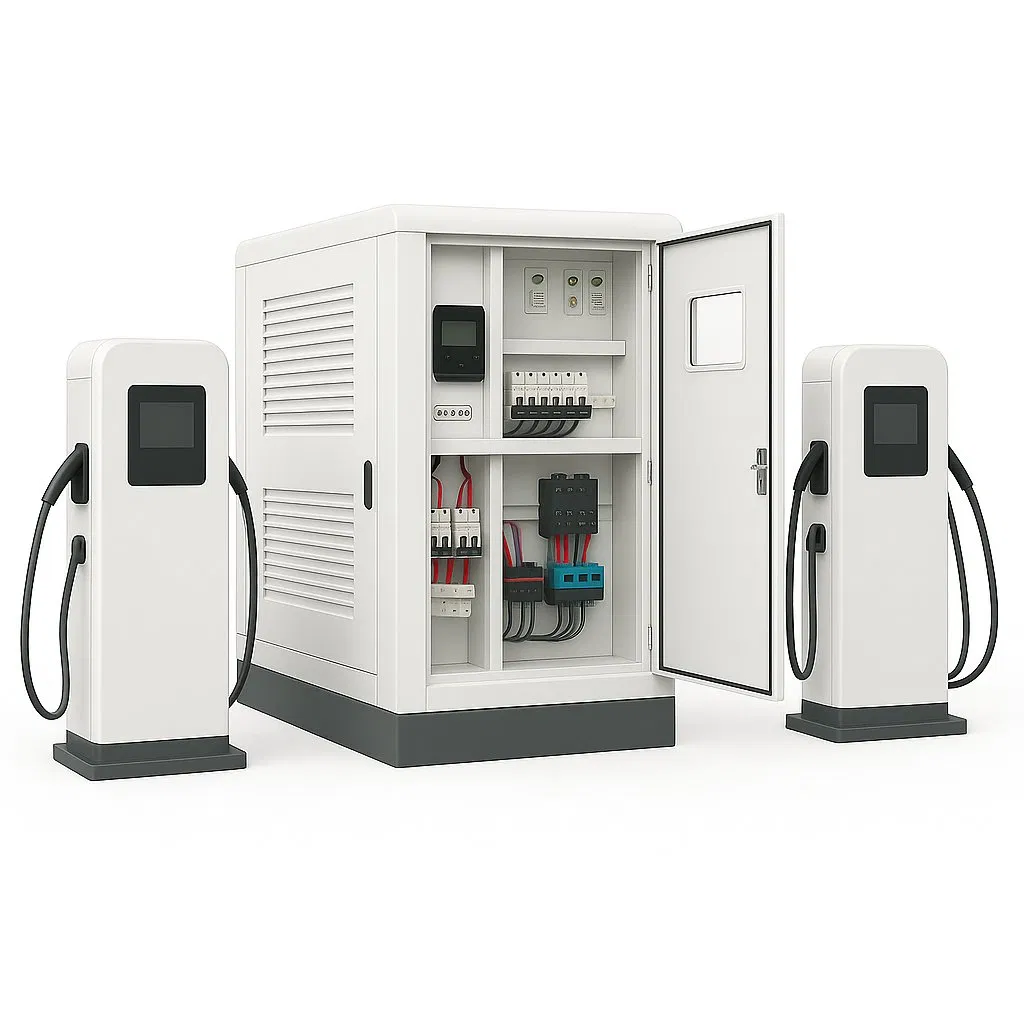

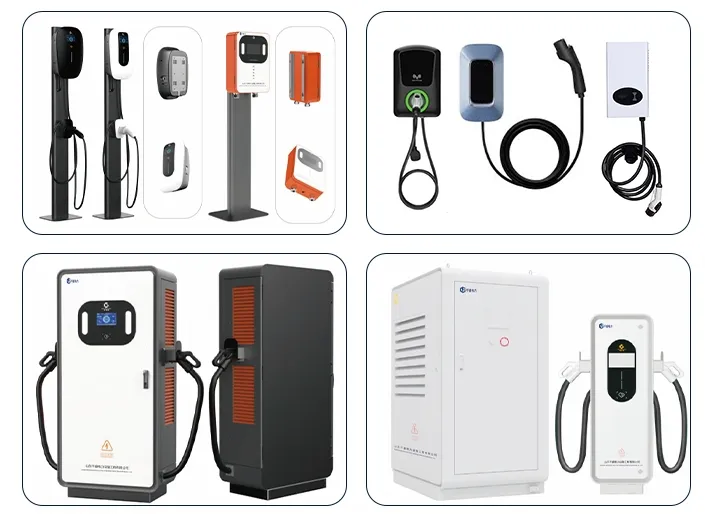

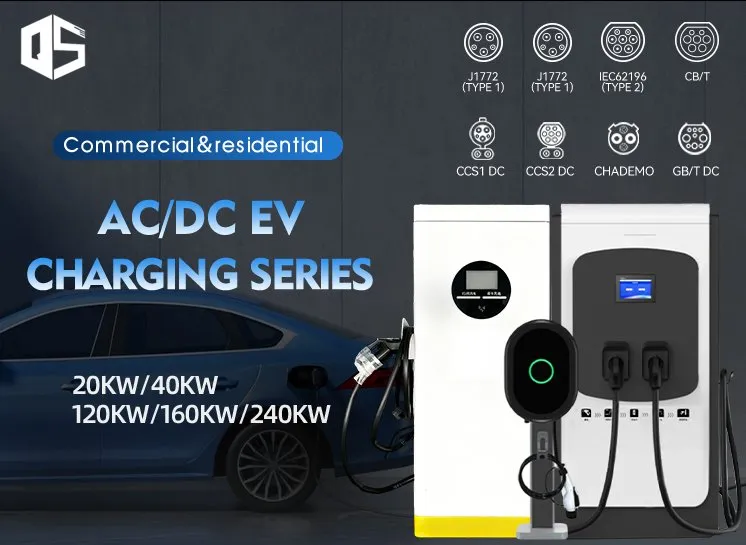

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. Stylish designs, stable frameworks, and complete functionality. Very suitable for residential and commercial use.

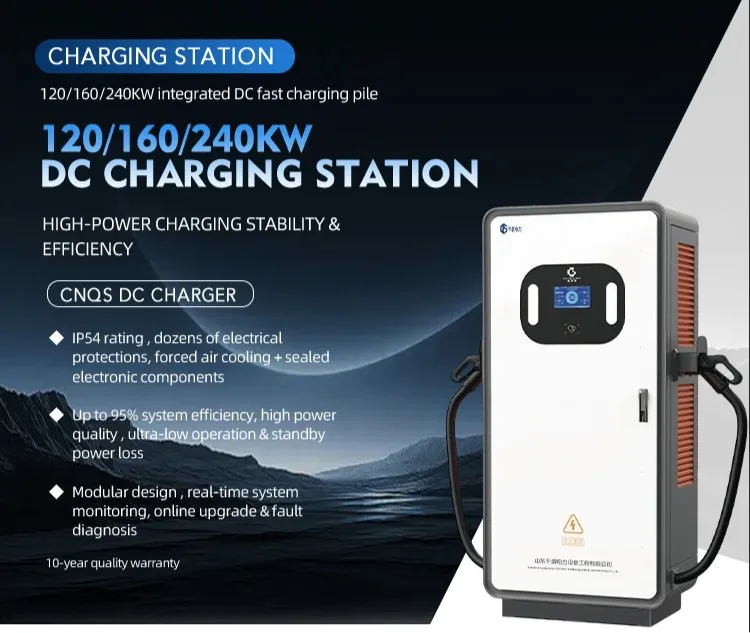

| Power Output | 20KW 40KW 120KW 160KW 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Output Voltage | 200~1000V |

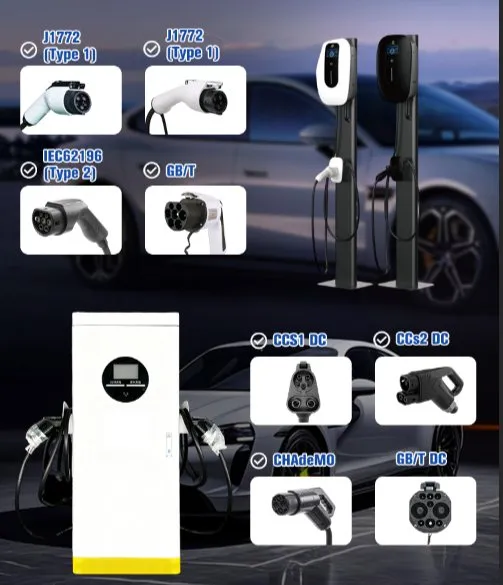

| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |
| Network | 4G / Ethernet |
| Protocols | OCPP1.6J (OCPP2.0 upgradable) |
| Protection | IP55 |
• 100% compliance with CE/UL/PSE/KC certifications.
• Supports ISO 15118-20 + PNC Plug & Charge.
• V2G vehicle-to-grid supported: 35% increase in revenue.
• Billing accuracy ±0.5%.
• 80% power replenished in 30 mins.

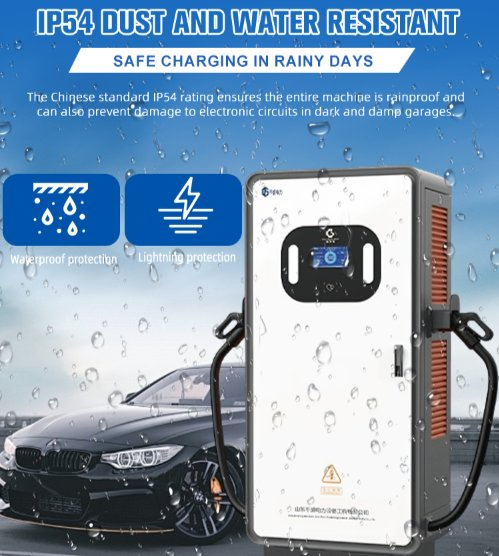

• IP65 waterproof & wide temperature (-30℃ to 60℃).
• Supports Apple Pay/Google Pay/Credit Card.

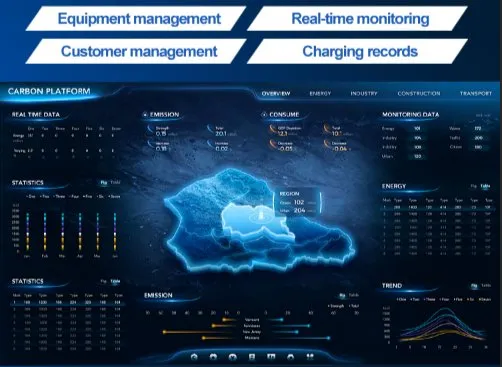

• Remote diagnosis of 40 core parameters.
• Dual-gun simultaneous charging.
• 120kW: 300+km range in 30 mins.
• 240kW: 80% battery in 15 mins.
• Industrial-grade protection for flagship stations.
Over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions.
• ISO9001:2000, CCC, CQC, CE, UL Certified.

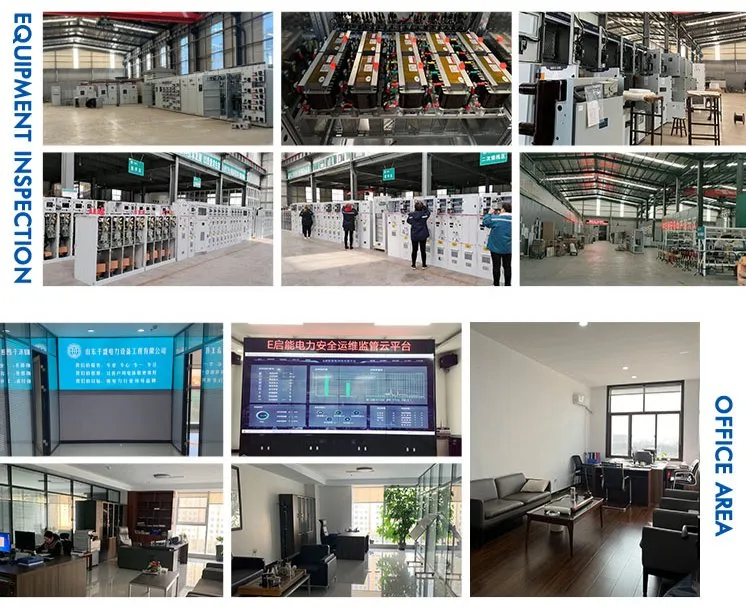

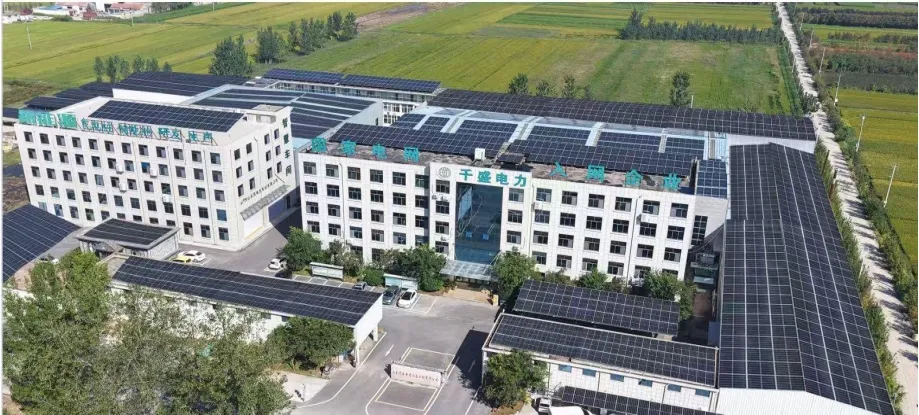

• 16,000+ square meters facility.
• Professional R&D and technical team.
• Products: Transformers, PV Panels, ESS, and EV Chargers.
