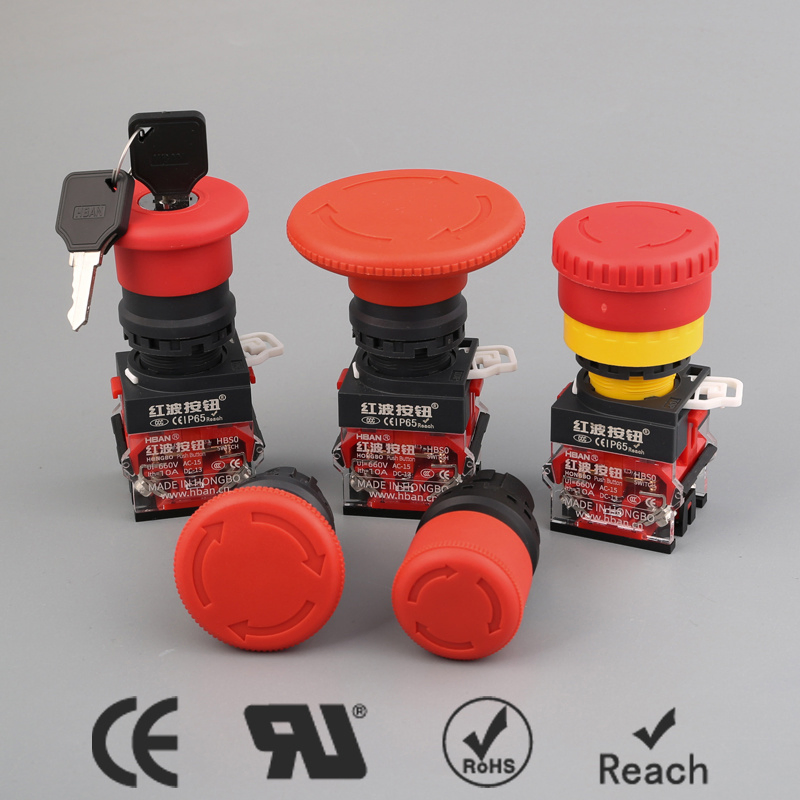

| Model NO. | HBS0-KA-11TSD/R/T7/2260 |

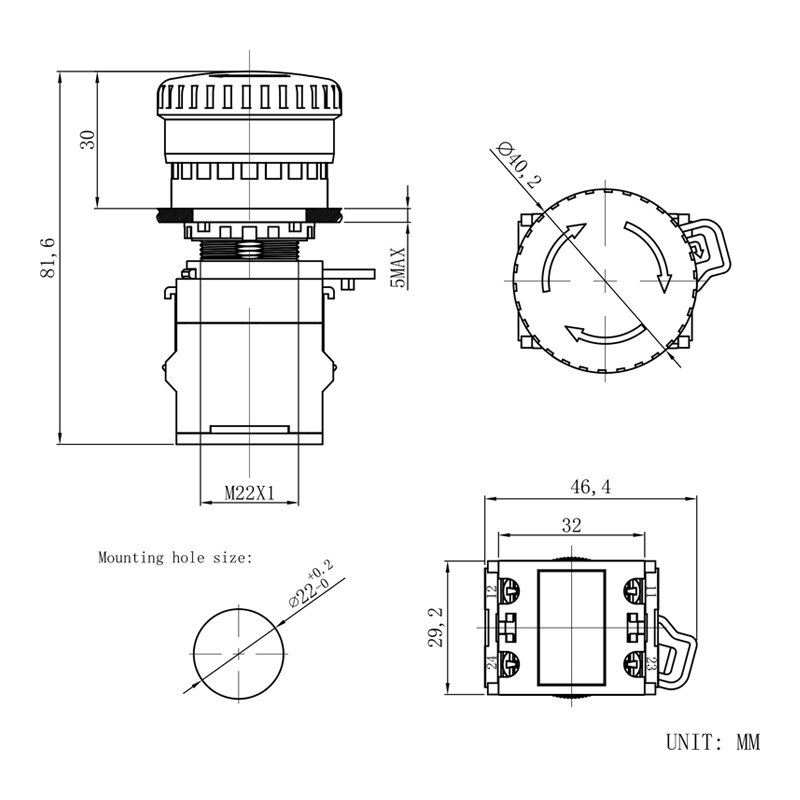

| Mounting Size | Diameter 22mm |

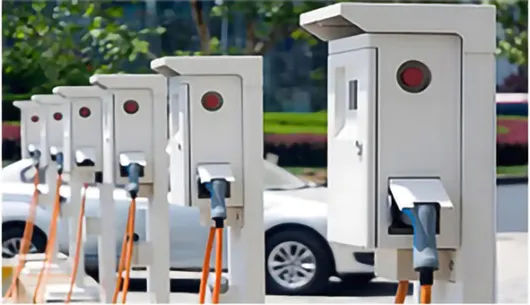

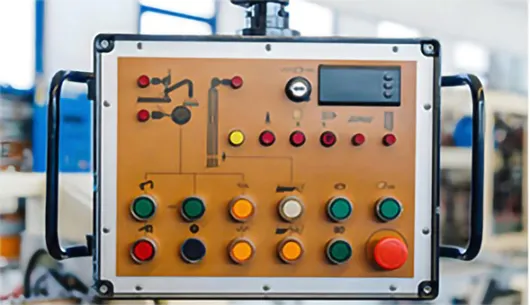

| Application | Home Appliance, Electronics, Industrial, EV Charging Pile |
| Type | Push Lock, Rotary Reset (Latching) |

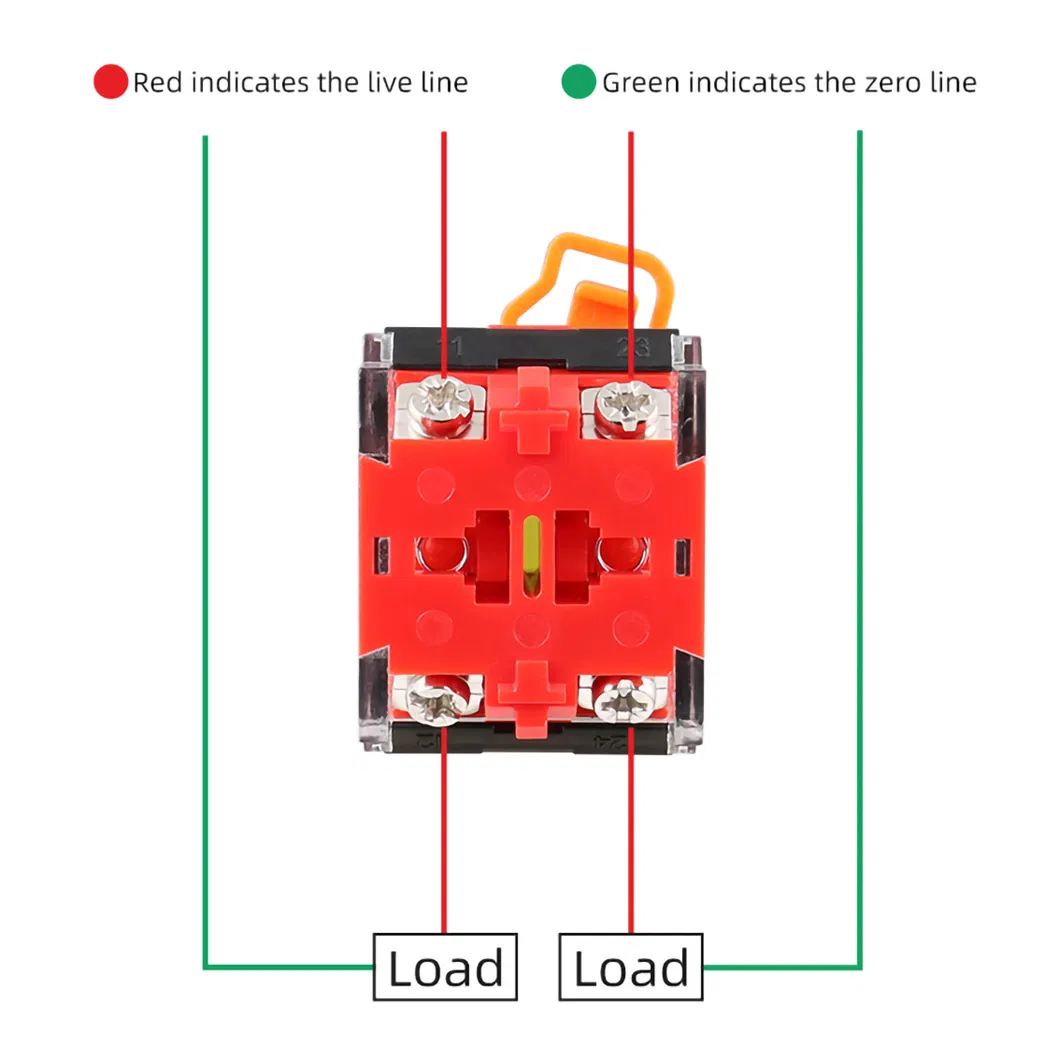

| Contact | 1NO 1NC (Type c Contact) |
| Rating | 10A/660V |
| Protection | IP65 |
| Certification | CE, RoHS, Reach, UL, ISO9001 |
| Material | ABS Button Box |

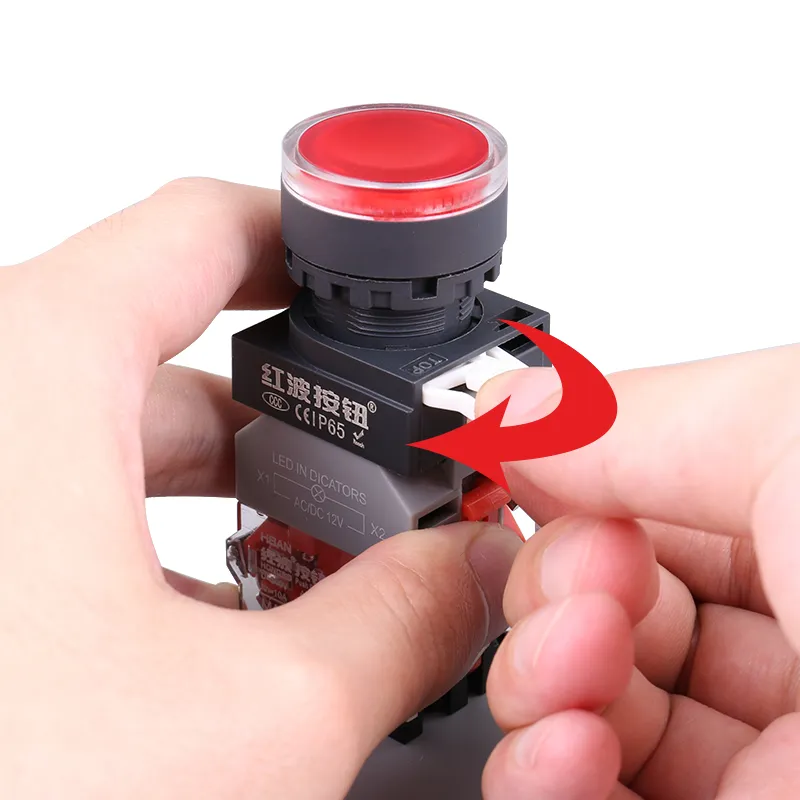

Easy Operation: Just press down directly to quickly stop or release transmission parts. To restart, rotate clockwise about 45°.
Durability: IP65 waterproof rating ensures safety in various environments. Features a thickened insulation cover at the bottom to reduce electrical hazards.
Environmentally Friendly: Made of recyclable, durable materials suitable for industrial standards.
IP65 Dust-tight and protected against low-pressure water jets from any direction.
Electrical life: 50,000 times
Mechanical life: 500,000 times
| Series: HBS0-K (22mm/30mm) | ||
| Mounting Size KA: Ø22mm KB: Ø22mm KS: Ø30mm |
Contact 11: 1NO1NC 22: 2NO2NC 10: 1NO / 01: 1NC |
Lamp Type D: With LED TS: Emergency Stop M: Mushroom Head |
Packaging: 10pcs/box. Products are placed in separate foam boxes to prevent collision, then packed into corrugated paper boxes with strapping tape reinforcement.
Shipping: Worldwide shipping via DHL, UPS, FedEx. Standard lead time is 3-7 business days upon payment.
