💠 Fully Customized Engineering: We tailor voltage, capacity, size, and connectors to integrate seamlessly with your specific tractors, harvesters, or sprayers. This ensures plug-and-play compatibility with existing powertrain configurations.

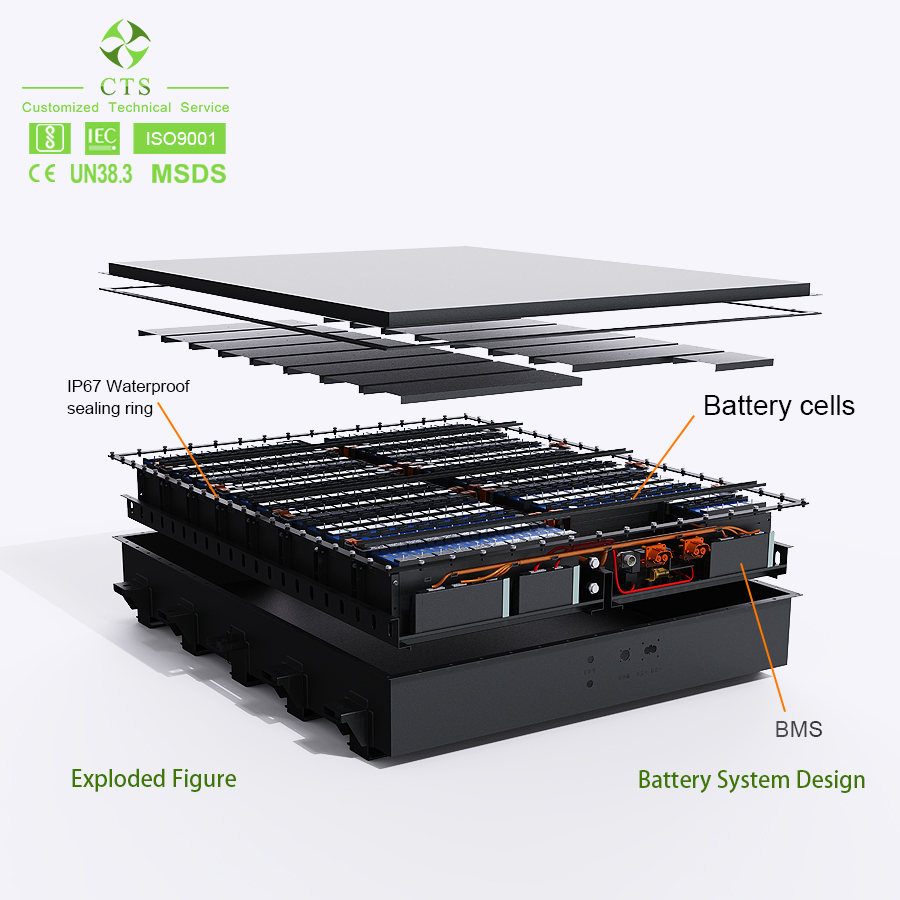

💠 High Safety & Reliability: Automotive-grade LiFePO4/NMC cells with advanced multi-layered BMS. Continuous monitoring of cell health meeting international CE standards.
💠 Wide Temperature Range: Reliable operation from -20°C to 60°C. Built-in heating elements and passive cooling ensure stability during winter frost or summer heat.
💠 Fast Charging & High Power: Supports 1-3C fast charging (80% in 30-60 mins). High discharge rates provide instant torque for demanding agricultural tasks.
| Battery Type | 614V 105Ah LPF | 614V 230Ah LPF |
|---|---|---|
| Capacity (kWh) | ≥64.5 | ≥126 |
| Rated Voltage (V) | 614.4V | 614.4V |
| Peak Discharge (A) | 300A (30s) | 600A (30s) |
| Efficiency | ≥98% | ≥98% |
| IP Grade | IP67 | IP67 |
| Cooling Mode | Liquid Cooling | Liquid Cooling |

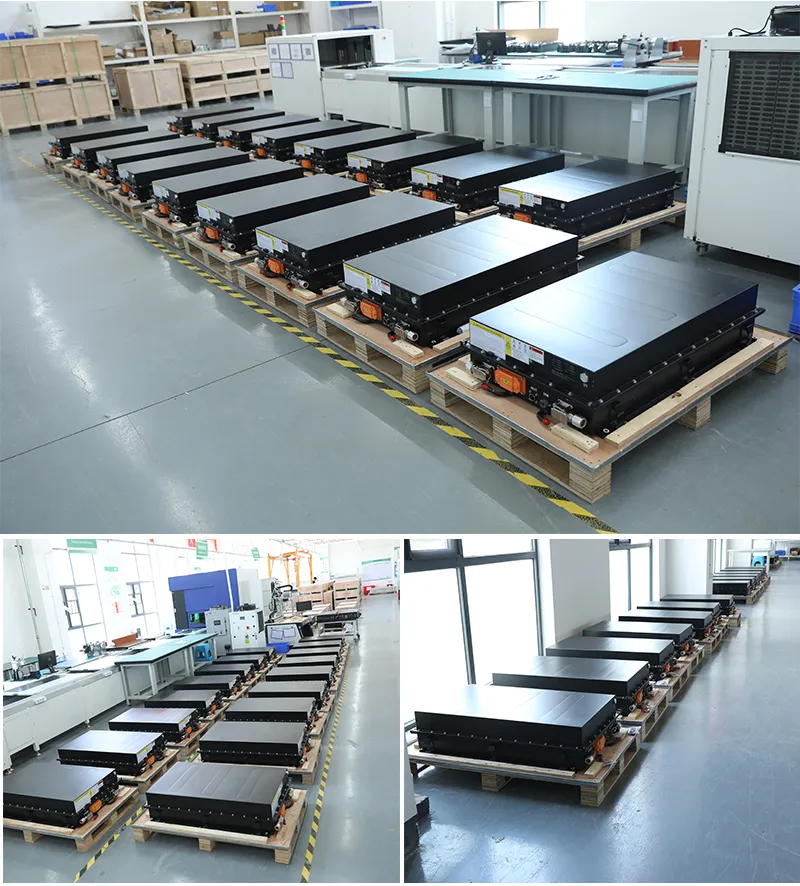

Modular design allows for flexible scaling from 15 kWh up to 200 kWh. One unified platform for your entire fleet dramatically reduces spare parts inventory.
