Product Description

Aluminum Aerial Work Lift Platform
Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Carrying Capacity
Light Level (125kg - 150kg)
Driven Type
DC / AC
Max Platform Height
6m / 7.5m
Certification
GS, CE, ISO 9001, SGS
Material
Aluminum Alloy
Warranty
12 Months
Product Description

Portable One Person Operating Self Propelled Aluminum Aerial Work Lift Platform

Single Mast Aluminum Lift Platform is famous for its light weight and high lift. It is made of high-quality aluminum alloy, allowing operators to move it easily. It is widely used in supermarkets, factories, hotels, stations, and exhibition halls for indoor and outdoor maintenance.

Proportional controls
Automatic pothole protection
Drivable at full height
Non-marking tyres
Automatic brake system
Emergency lowering system
Emergency stop button
Cylinder holding valve
On board diagnostic system
Model Specification Unit SPA-6 SPA-7.5
Max. Platform Heightmm60007500
Max. Working Heightmm80009500
Load Capacitykg150kg125kg
Overall Sizemm1400*760*19801400*760*1980
Platform Sizemm660*670660*670
Max Drive Speed (Stowed)km/h3.54
BatteryV/Ah2X12V/85AH2X12V/85AH
Net Weightkg11201190
Product Gallery

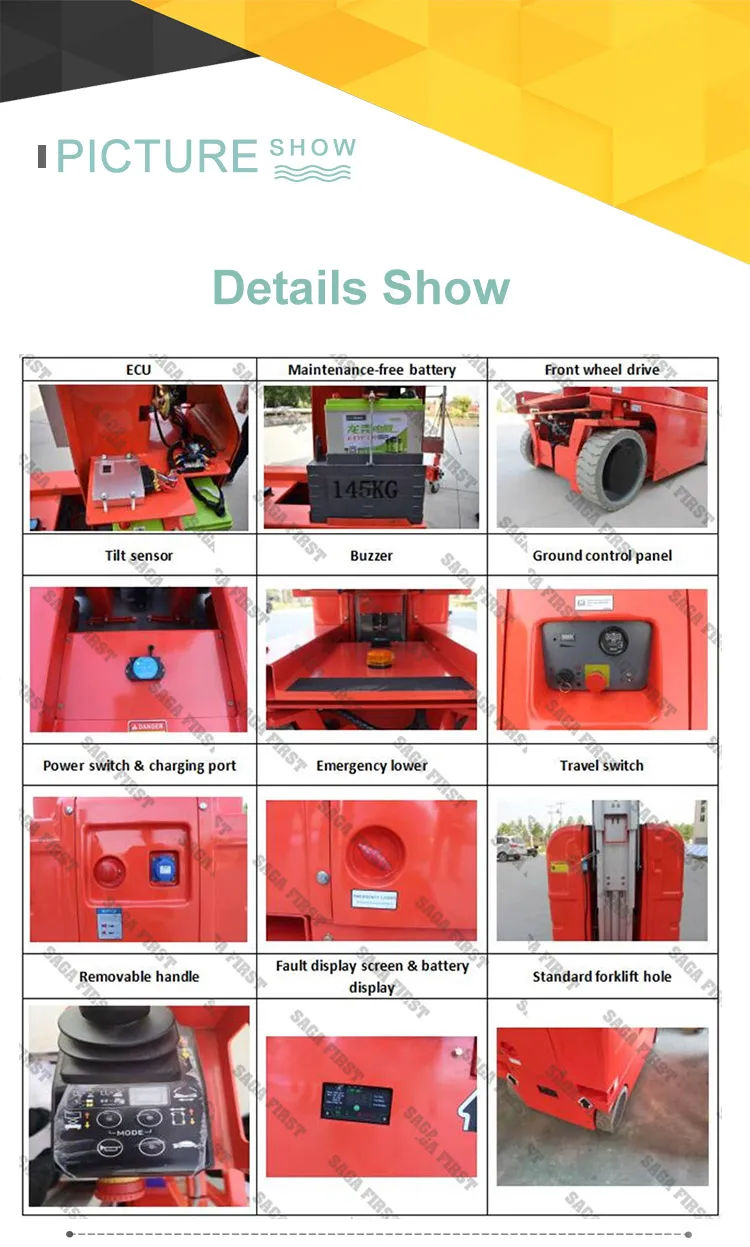

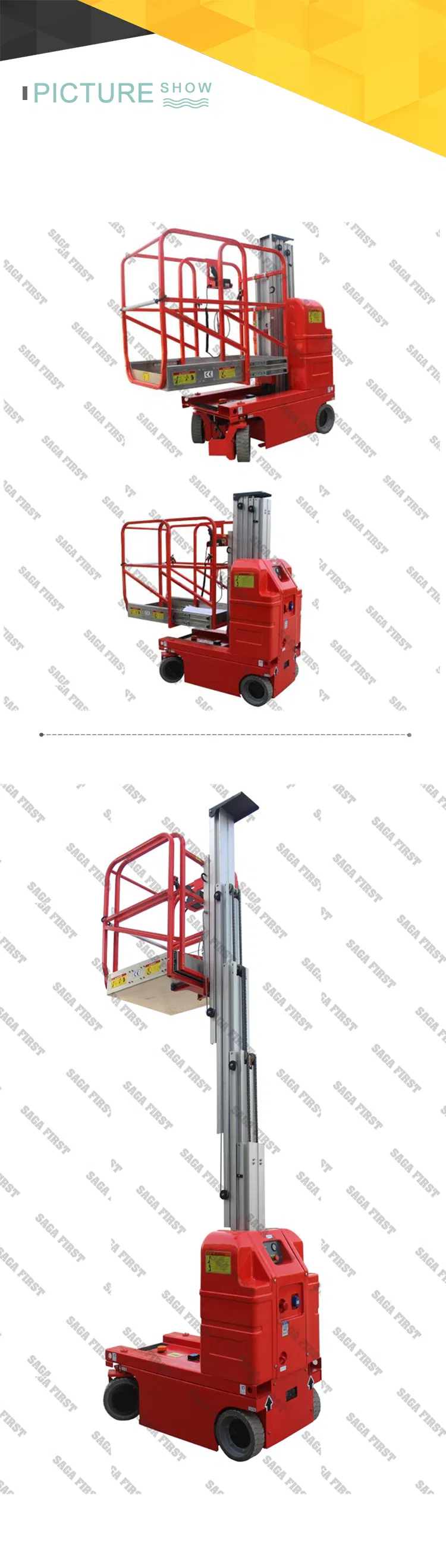

Aluminum Lift View 1 Aluminum Lift View 2
Technical Features & Safety
  • Drive System: 2 built-in front-wheel motors (0.5KW*2) and a 2.2KW lifting motor.
  • Safety Sensors: Load detection system prevents lifting beyond rated capacity with light warnings.
  • Tilt Sensing: Automatic safety lock if ground tilt exceeds 2 degrees when platform is above 2m.
  • Pothole Protection: Mechanical protection with sensor switches to ensure stability.
  • Anti-Pinch Function: Automatic stop at 2m height during descent for hand protection.
Customer Service

1. Customized designs for aerial aluminum platforms based on requirements.
2. Model recommendations based on specific site needs.
3. Shipment arrangement to destination ports.
4. Operation and maintenance videos provided for support.
5. Fast express delivery for spare parts within 7 days.

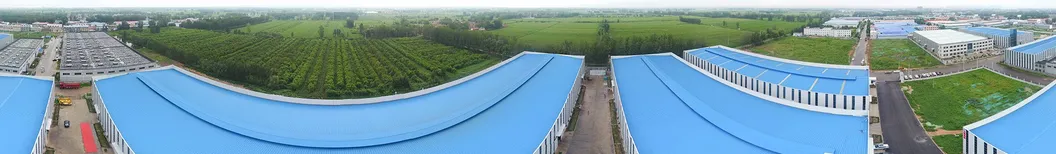

Customer Visits and Quality Control
Frequently Asked Questions
What is the main material of the lift platform?
The platform is constructed from high-strength aluminum alloy, which ensures it is lightweight and corrosion-resistant.
Can the platform be driven while fully extended?
Yes, the SPA series is designed to be drivable even at its full platform height for increased efficiency.
What safety features are included for uneven ground?
It includes a tilt sensing function that restricts operation if the ground slope exceeds 2 degrees while the platform is raised.
How long is the warranty period?
We provide a 12-month quality warranty for the entire machine.
What power source does it use?
It is powered by 24V DC batteries (2*12V/100ah) and includes an on-board charger compatible with 220V AC.
Are the tires suitable for indoor use?
Yes, it uses non-marking high-elastic rubber tires that are ideal for sensitive indoor flooring like supermarkets and hotels.
