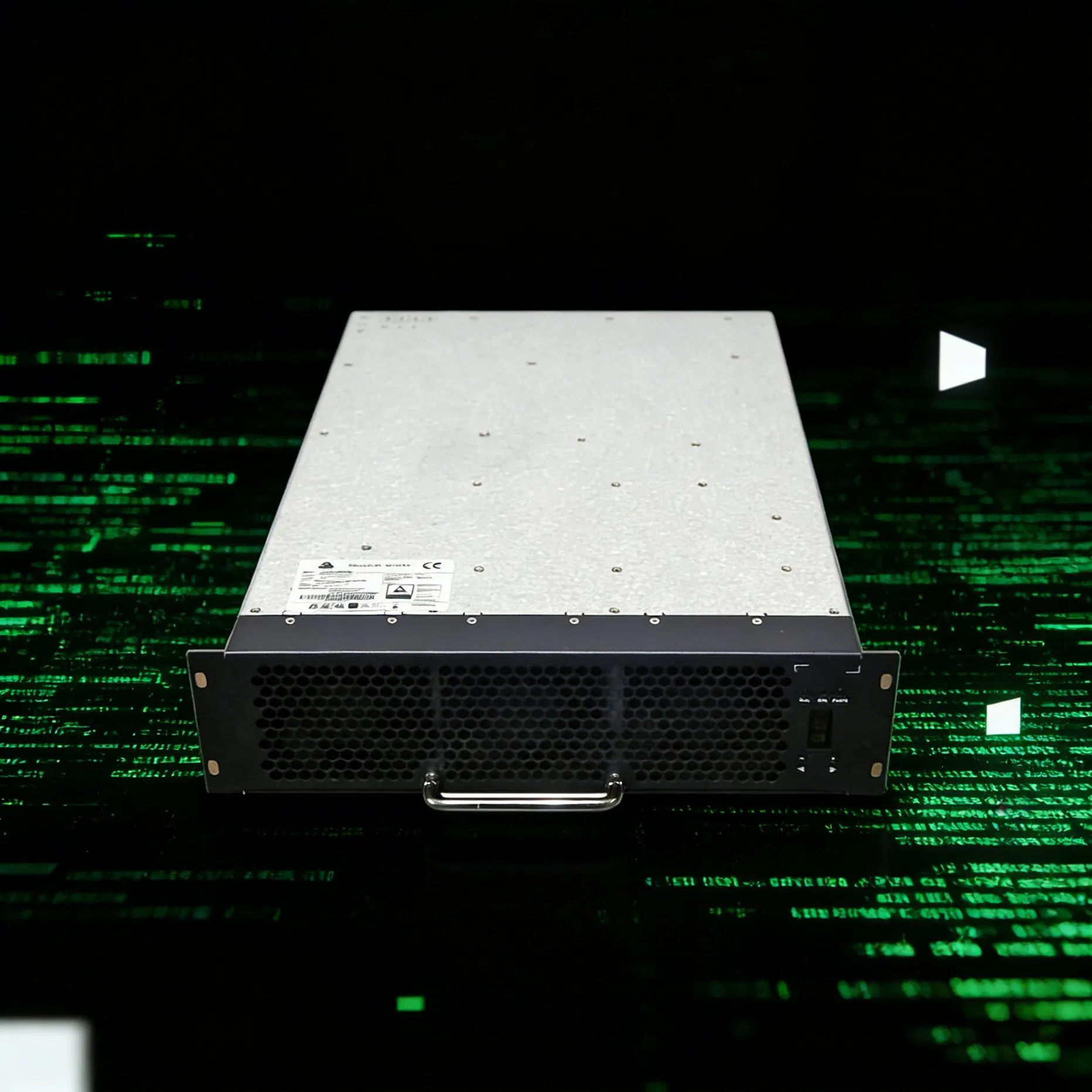

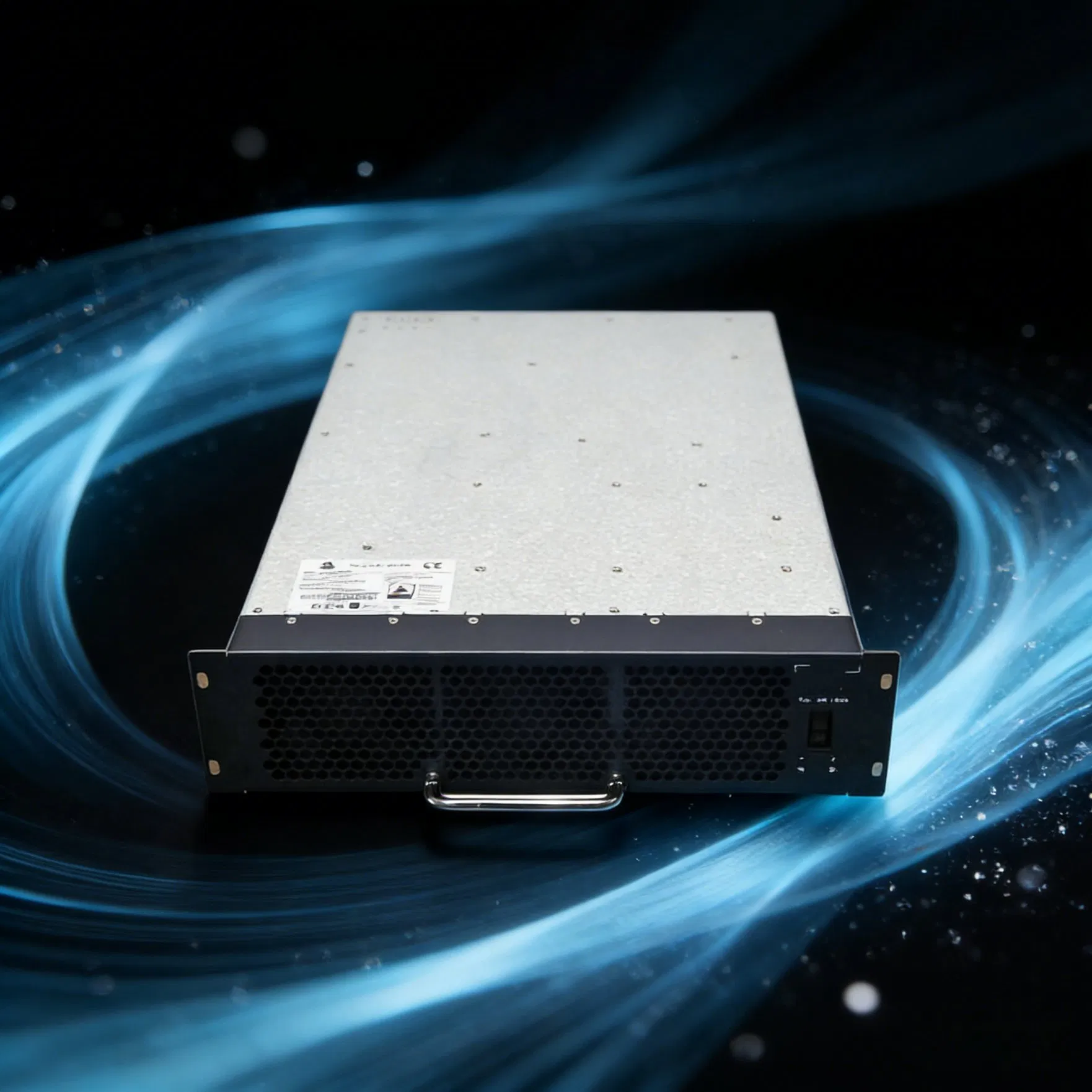

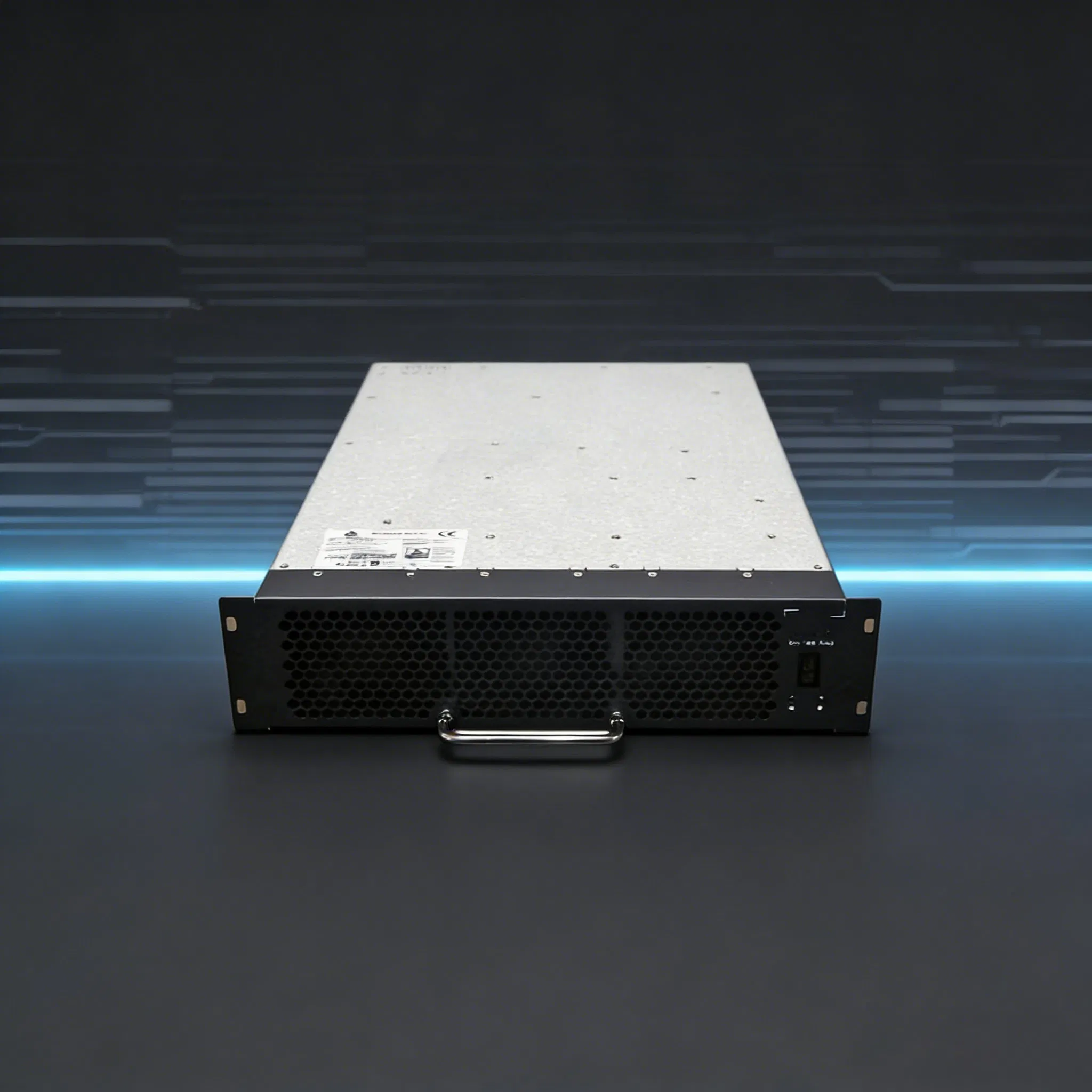

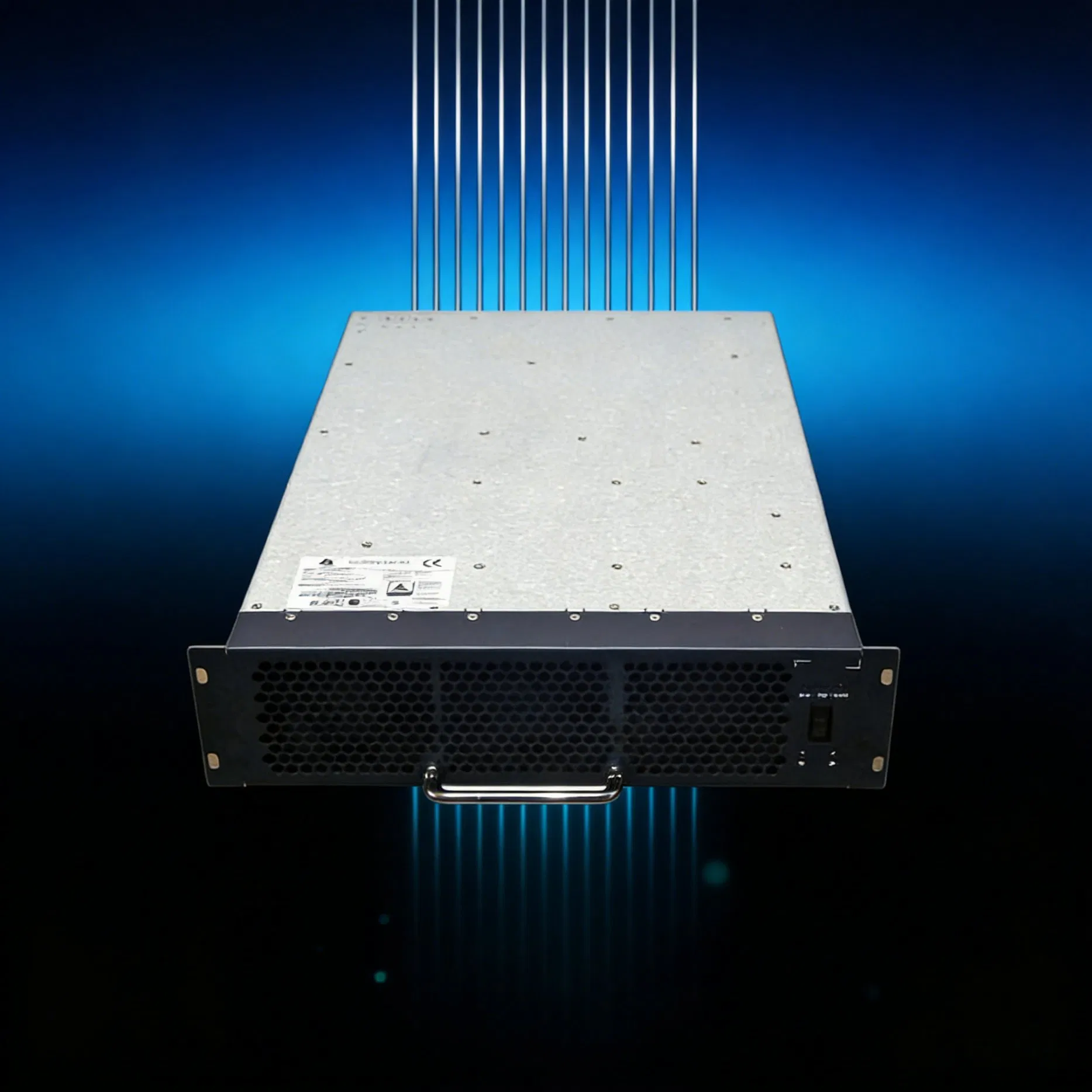

Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
1 / 5
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure
Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure

Tonhe 40kw DC Fast Charging Power Module for Global EV Infrastructure

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Location:
Public Use
Charging Interfaces:
One Pile with Multiple Charges
Start Mode:
RFID Authentic
AC Voltage Range:
432-460VAC
DC Voltage Range:
200-1000VDC
Type:
EV Charging Station
Certification:
TUV, CE, IATF, KC, UL, ISO, FCC
Warranty:
12 Months
Product Advantages

THWT40F10030C9E is a high-efficiency, high-power density DC charging module developed for the international market. The module accords with IEC61851 and IEC60664 standards, meeting Class B EMC requirements.

  • ✓ Wide output constant power range: 300-1000VDC
  • ✓ Ultra-low standby power consumption: <10W
  • ✓ Ultra-low total harmonic distortion: <5%
  • ✓ High conversion efficiency: peak efficiency >97.2%
  • ✓ Ultra-low noise level: 60dB full load

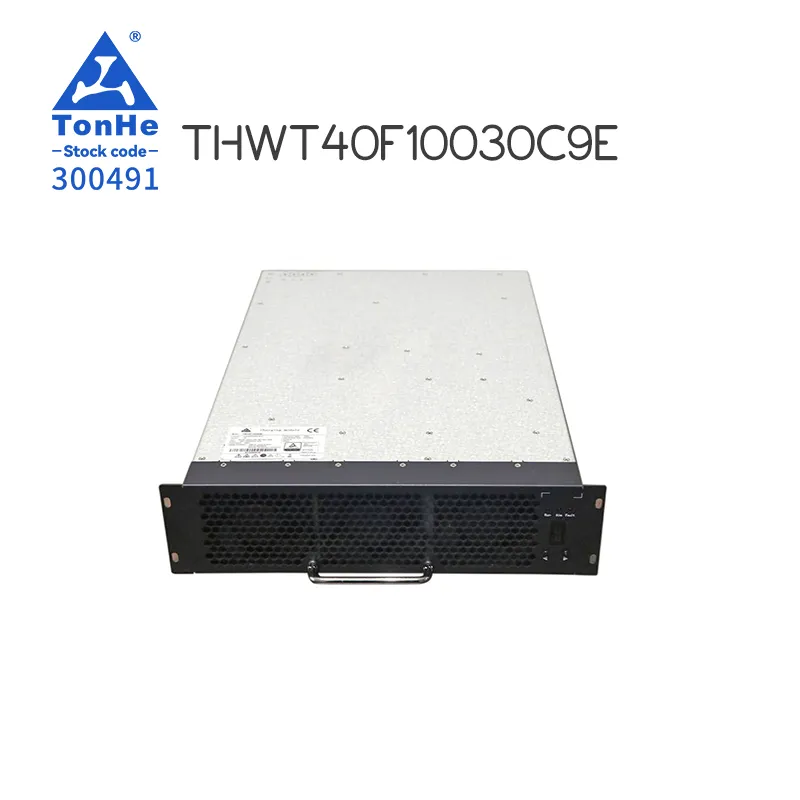

Power Module 1

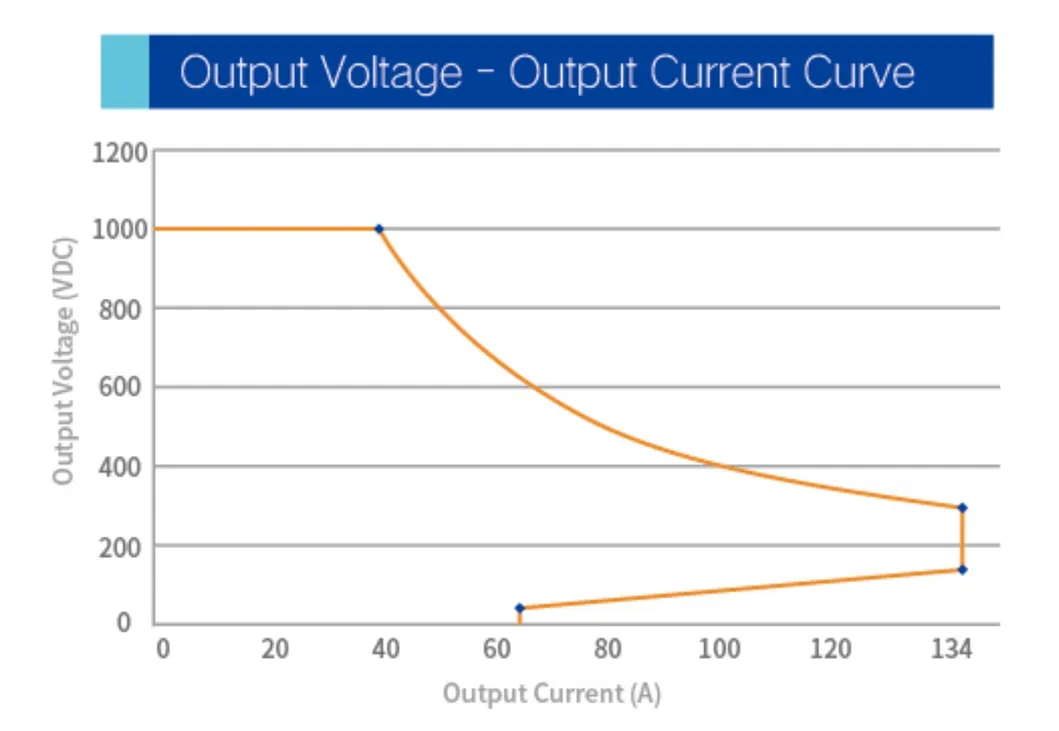

Power Module 2
Technical Specifications
THWT40F10030C9E Parameters
Working Temperature-40ºC ~ +75ºC
Standby Power<10W
Dimension437.5mm x 300mm x 84mm
AC Input
Input VoltageRated 400VAC, 3W+PE (Range 340-460VAC)
Rated Output Power40kW
Peak Efficiency≥ 97.2%
Manufacturing & Testing

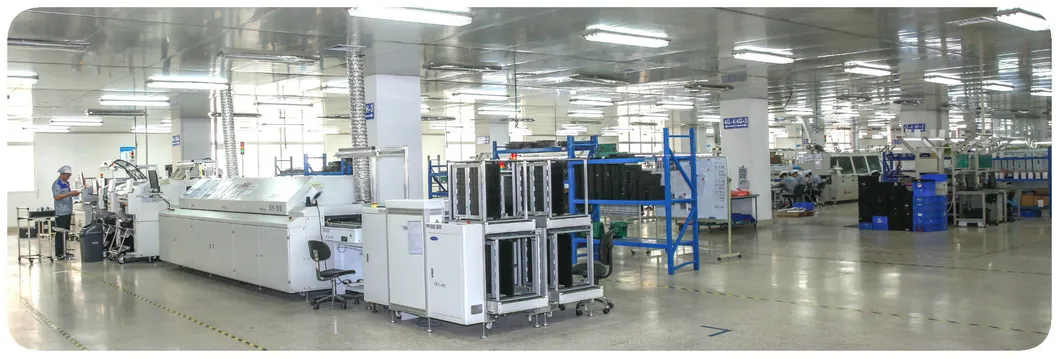

Workshop

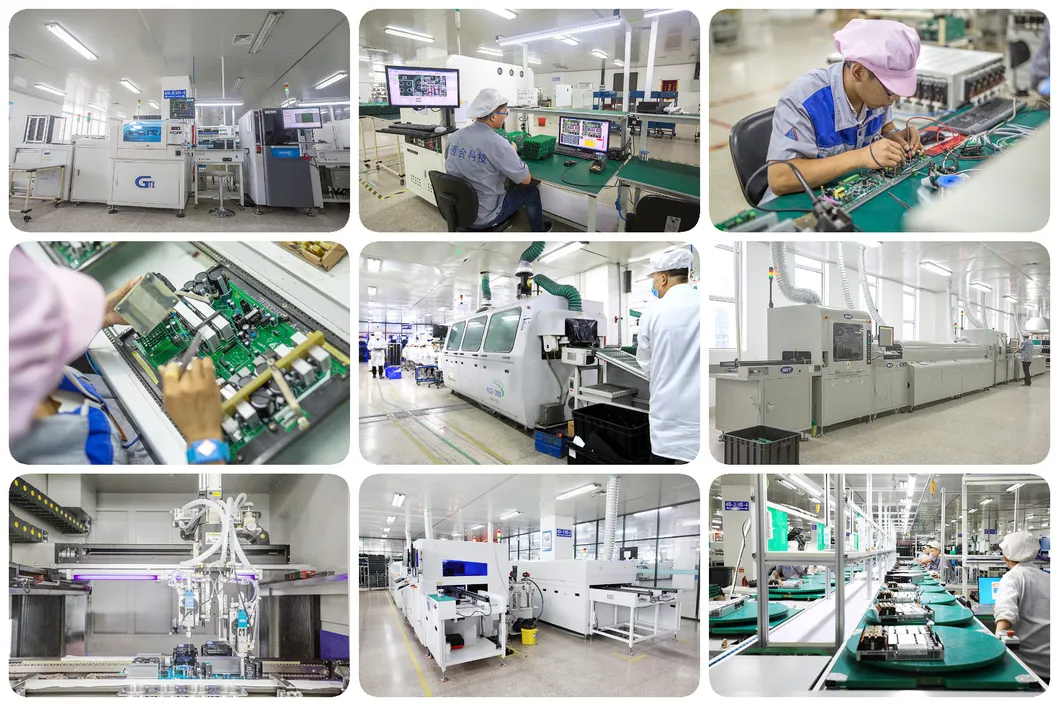

Manufacturing

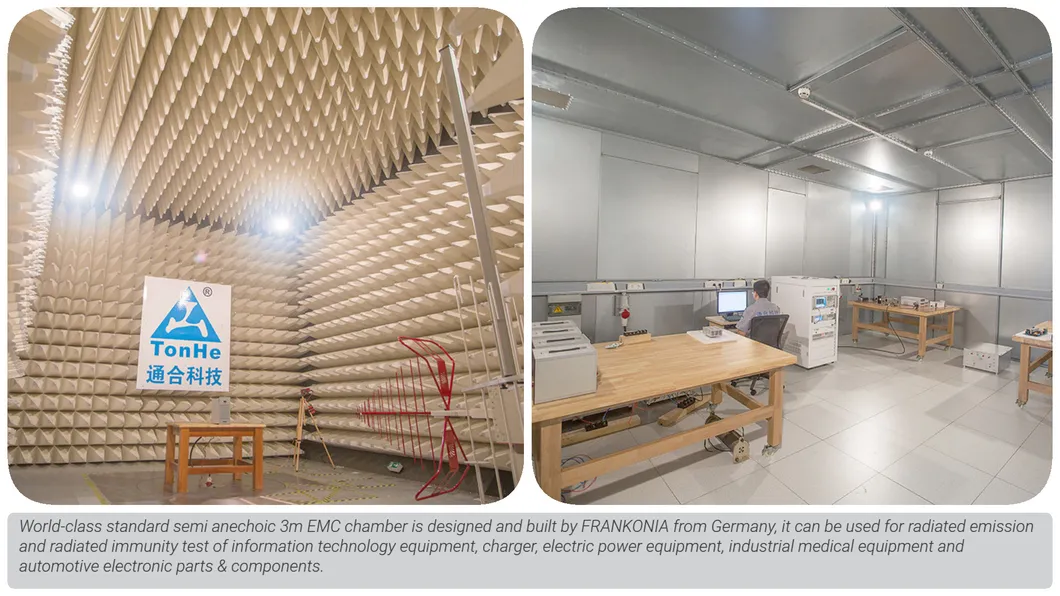

Testing Lab 1
Testing Lab 2
Frequently Asked Questions
What is the module CAN baud rate?
The module supports 125Kbs at a 5V voltage level.
Do the modules support glue filling?
Yes, all series modules can support glue filling for enhanced durability.
What are the installation requirements?
The charging module can be installed horizontally, side standing, or upside down. For upside-down installation, a customized front panel without a handle is recommended.
What is the standard delivery time?
Approximately 7 days for modules and 35 days for standard piles. Large or customized orders require coordination with our workshop.
What certifications do your products have?
Our products are qualified with ISO, TUV, CE, and the company is IATF16949 certified for automotive quality management.
What is the warranty period?
The standard warranty is 12 months upon receipt of the shipment.
