Basic Information
Model: EF160
OCPP: Supported 1.6j
Screen: 7 Inch Touch Screen
Protection: IP54, IK10
Charging Type: Mode 4
Standard: IEC 61851-1, IEC 61851-23, Chademo
Certification: CE, TUV

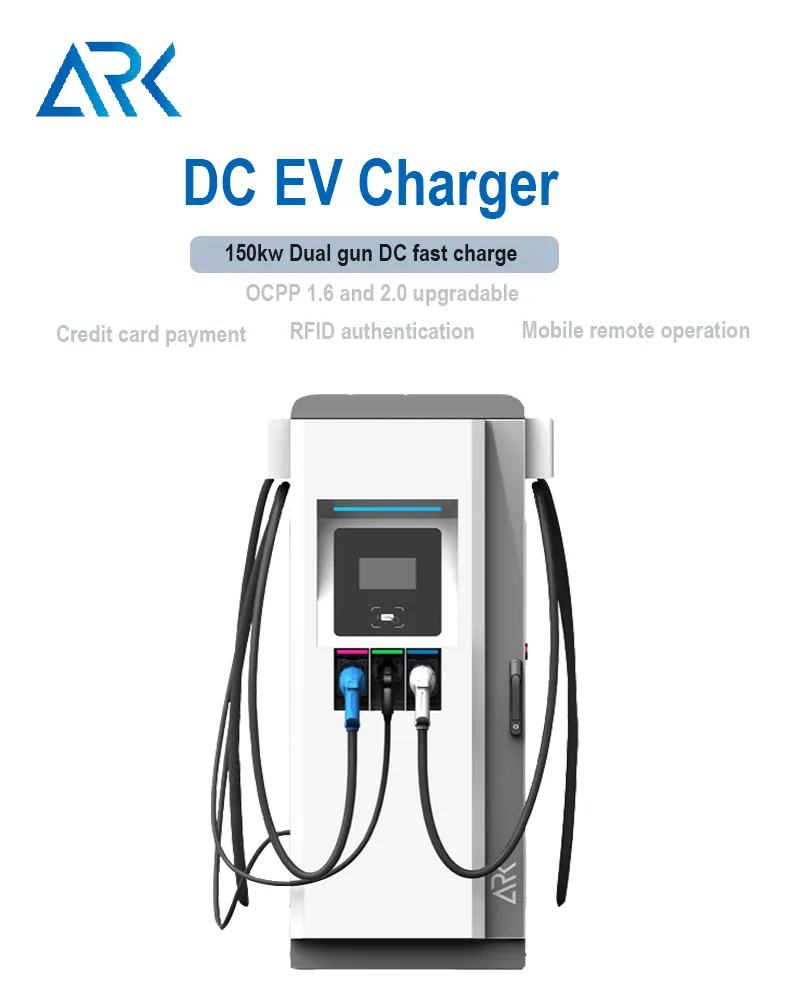

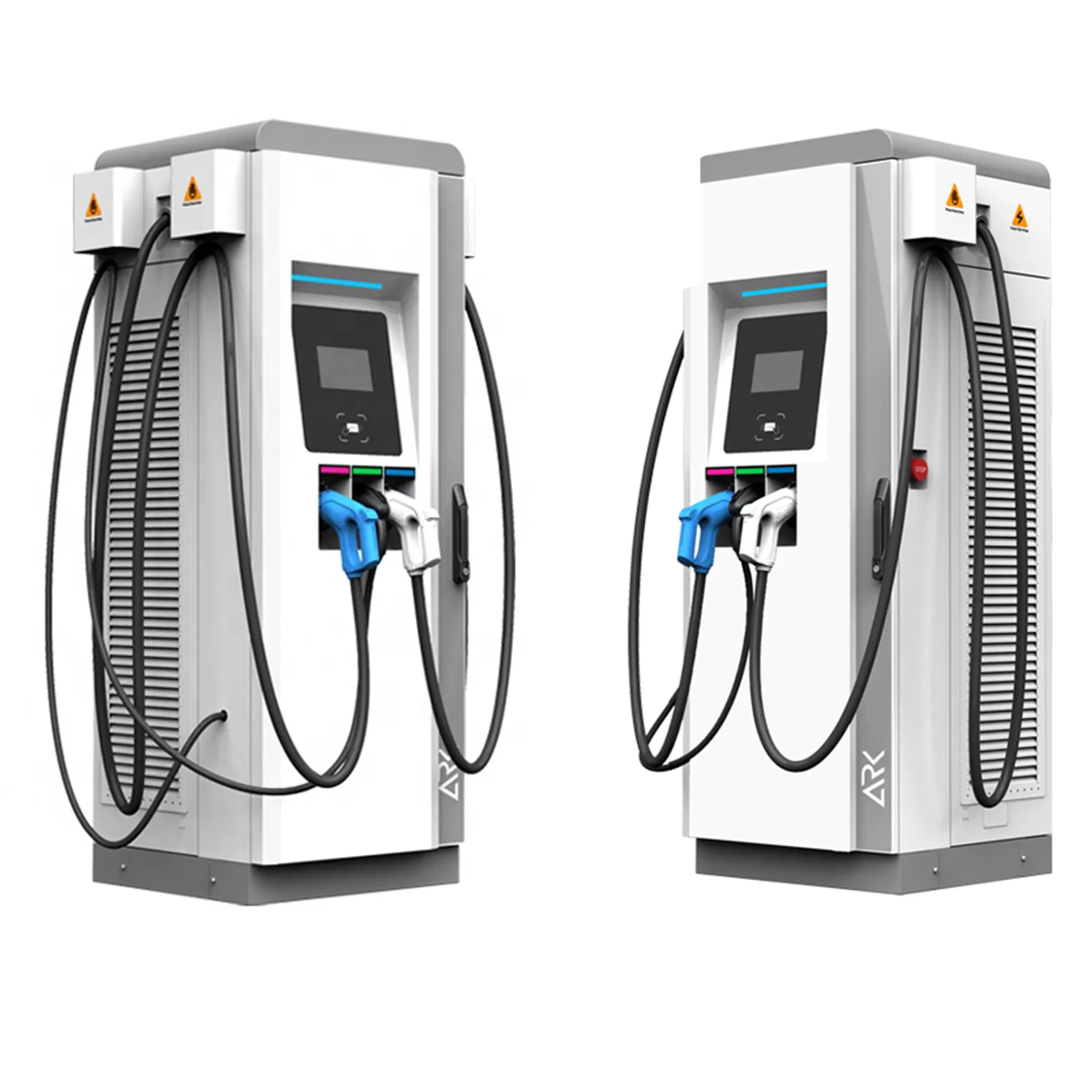

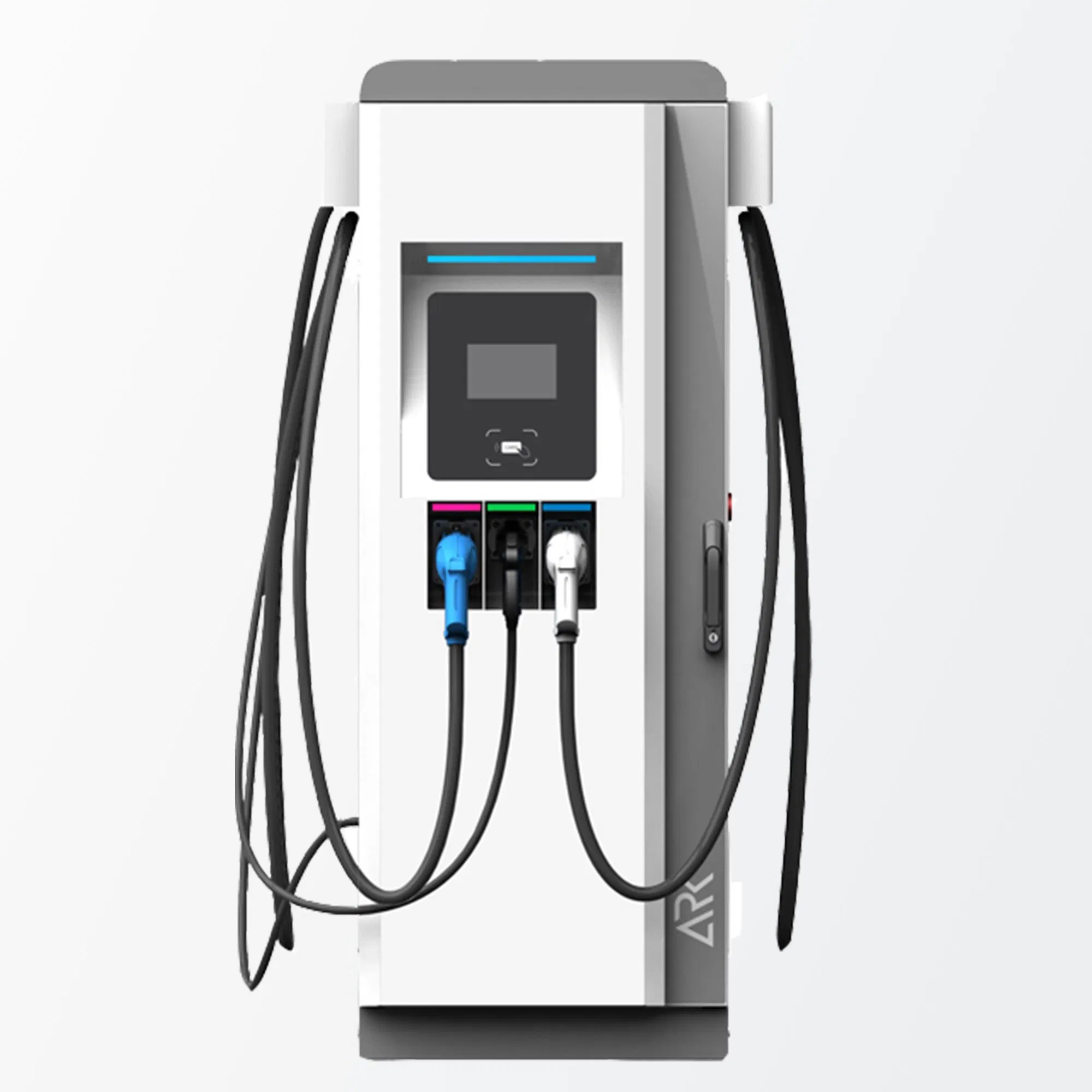

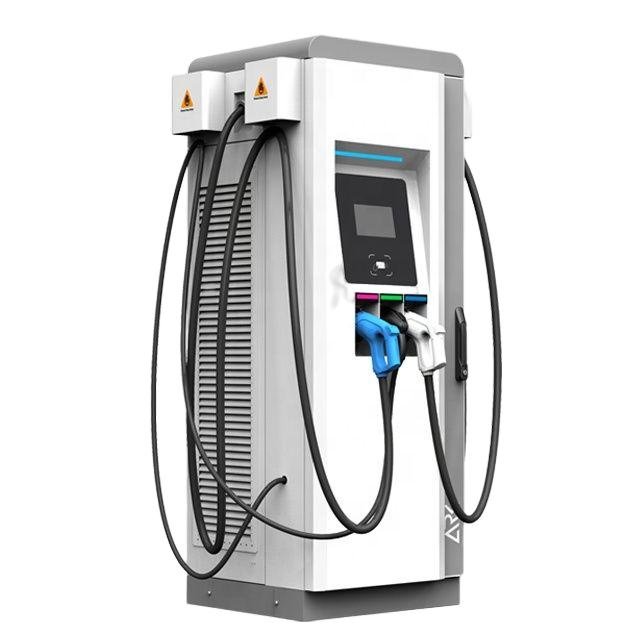

Type: Fast EV Charging Station
Product Description
Product Parameters
| Electrical specs |
Input Voltage |
400Vac 3-phase, 50Hz/60Hz |
| Rated Power |
60kW or 120KW DC |
| Output Voltage |
CCS: 200-1000VDC, CHAdeMO: 200-500VDC |
| Efficiency |
≥ 94%, Power Factor ≥ 0.99 |
| Structure |

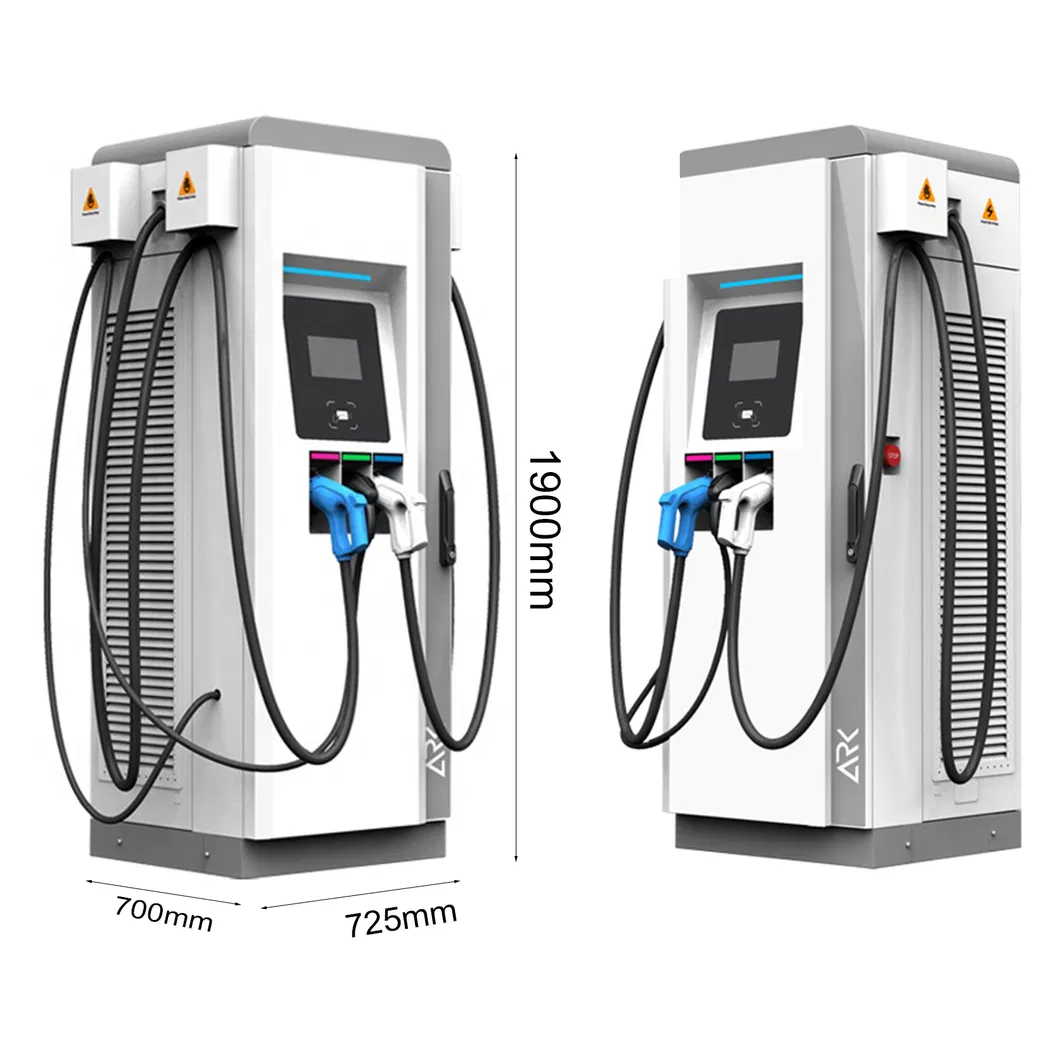

Dimension |
1900 x 725 x 700mm |
| Weight |
380kgs |
| Cable Outlets |
3 connectors (5m length) |
| Environment |
Temperature |
-30°C to +55°C |
| Protection |
IP54, Fan Cooling |

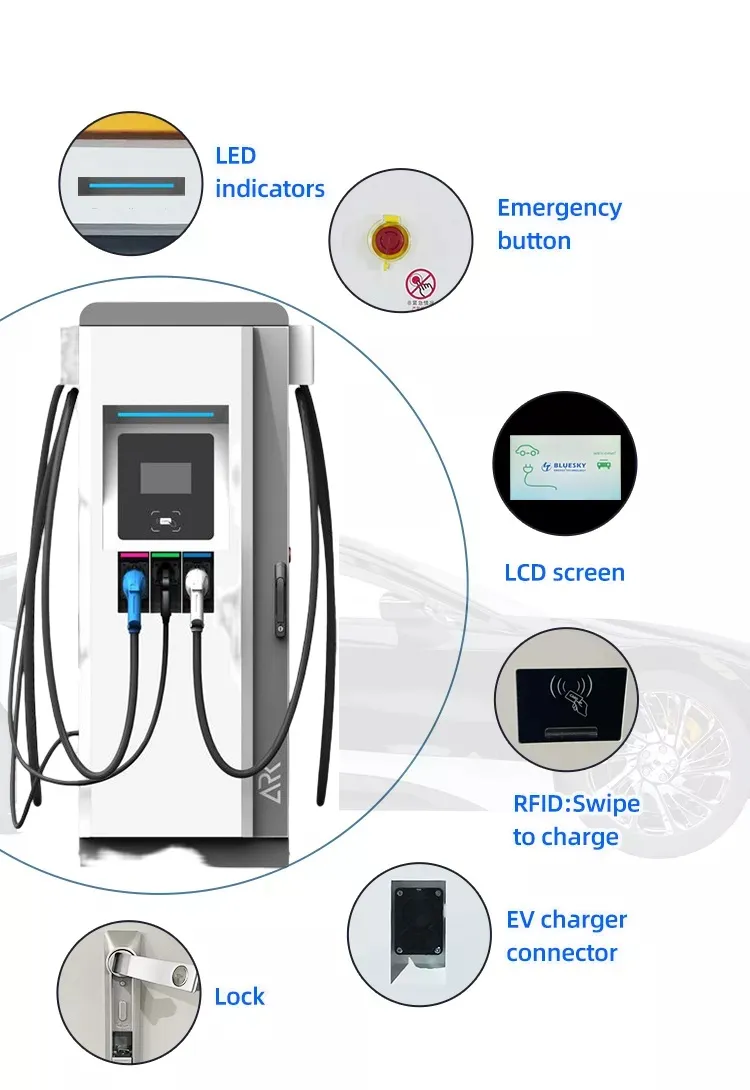

Technical Excellence
Packaging & Shipping
Frequently Asked Questions
1. Why choose this EV Charger solution?
We provide a professional technical team with a long-term vision. Our products pass rigorous laboratory standard tests and support multiple international standards including CE and UL certificate requirements.

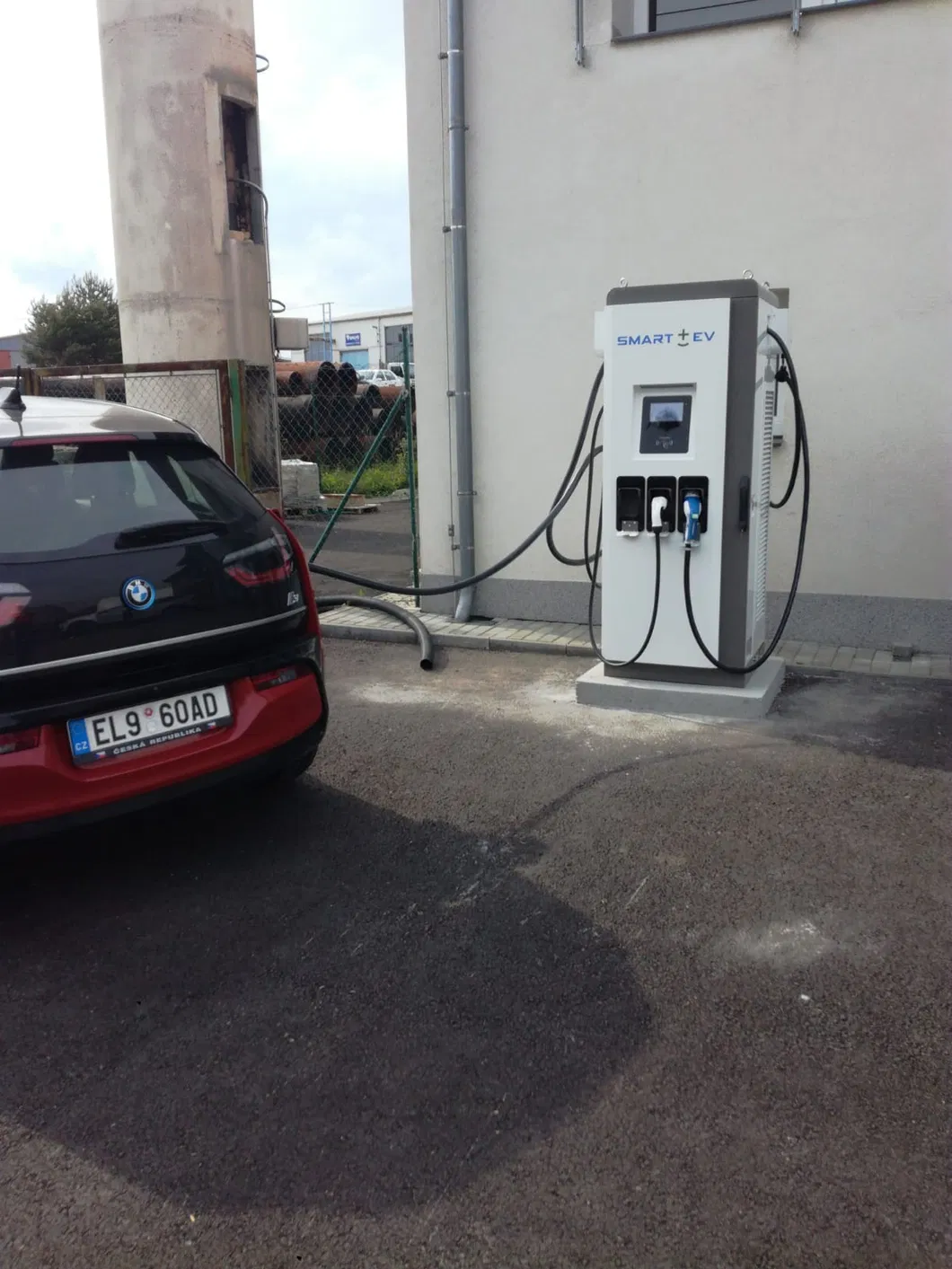

2. Is there experience in overseas charging projects?
Yes, there is extensive experience implementing projects globally, including integrating chargers with PV systems and installing DC fast chargers for major freeway networks and automaker fleets.
3. What are the main product advantages?
Telecom-level design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider voltage ranges, high protection grades, and advanced modular design for future-proofing.
4. What are the differences between DC fast charging standards?

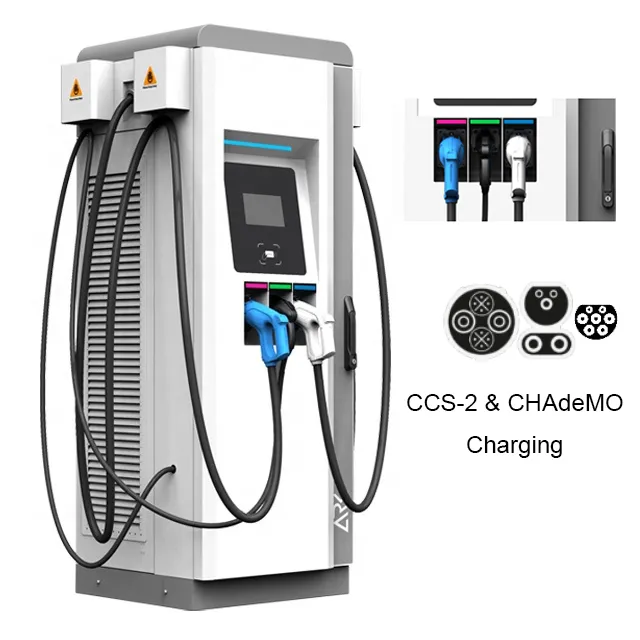

CCS-1 is for North America; CCS-2 is the European standard; CHAdeMO is used primarily in Japan; GB/T is the Chinese standard; and Tesla uses its own proprietary standard.
5. Does higher output power always mean faster charging?
Not necessarily, as it depends on the vehicle's battery limit. However, high-power chargers support dual connectors for simultaneous charging and prepare your infrastructure for future high-capacity batteries.
6. How is after-sales support handled?
We provide comprehensive technical training, including written materials and videos. Our professional technicians are available for mastered parts replacement and maintenance guidance.
