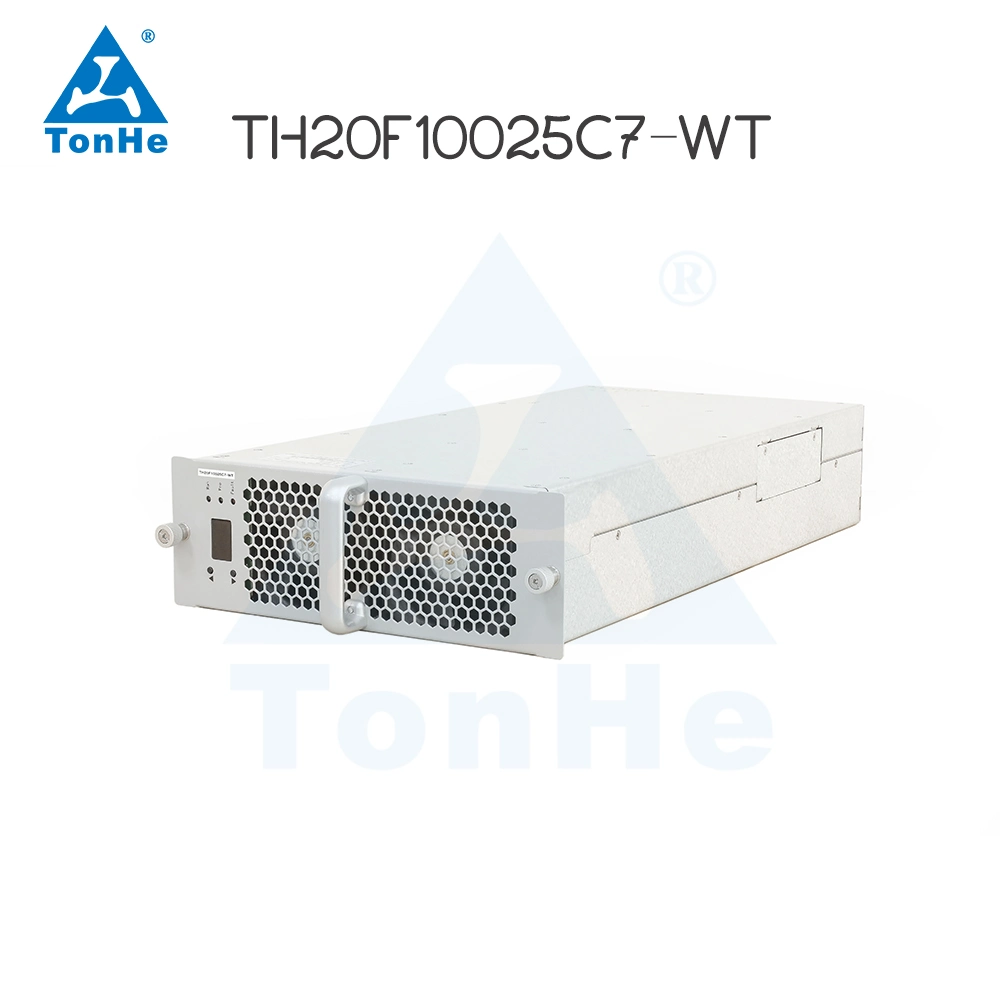

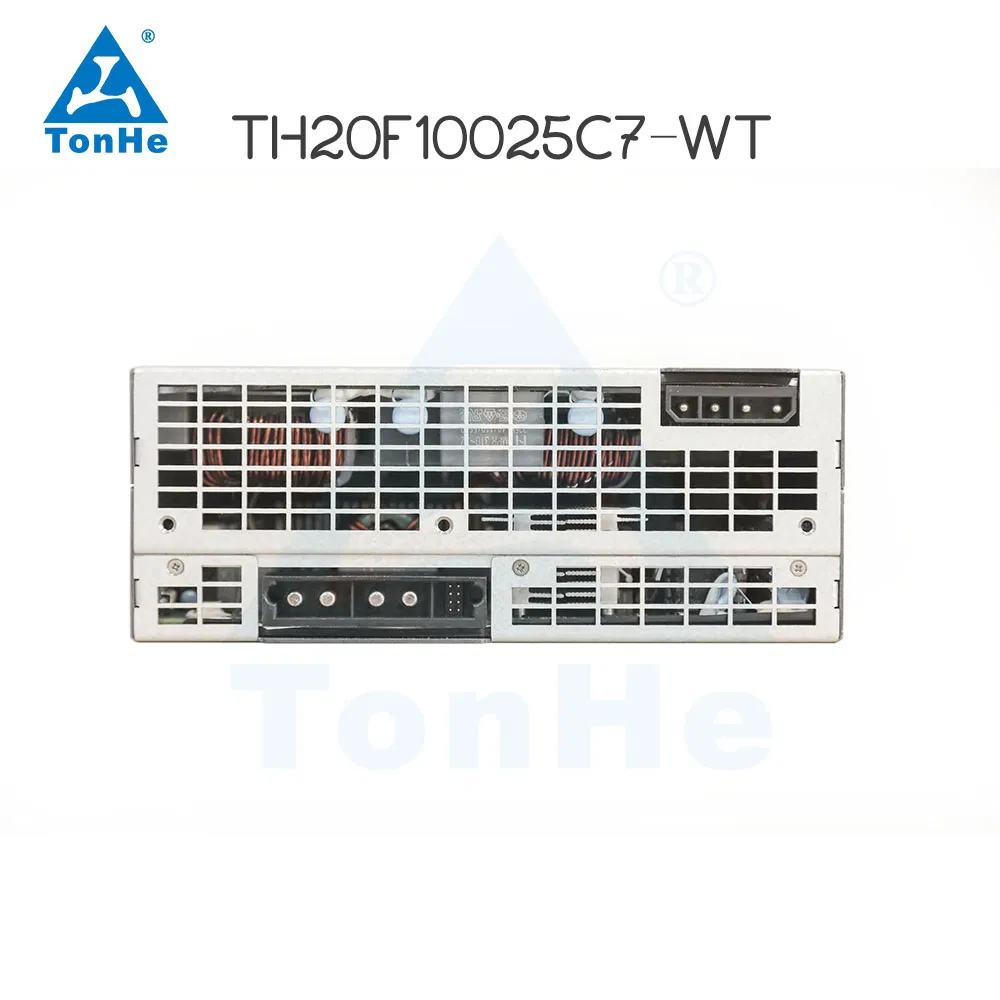

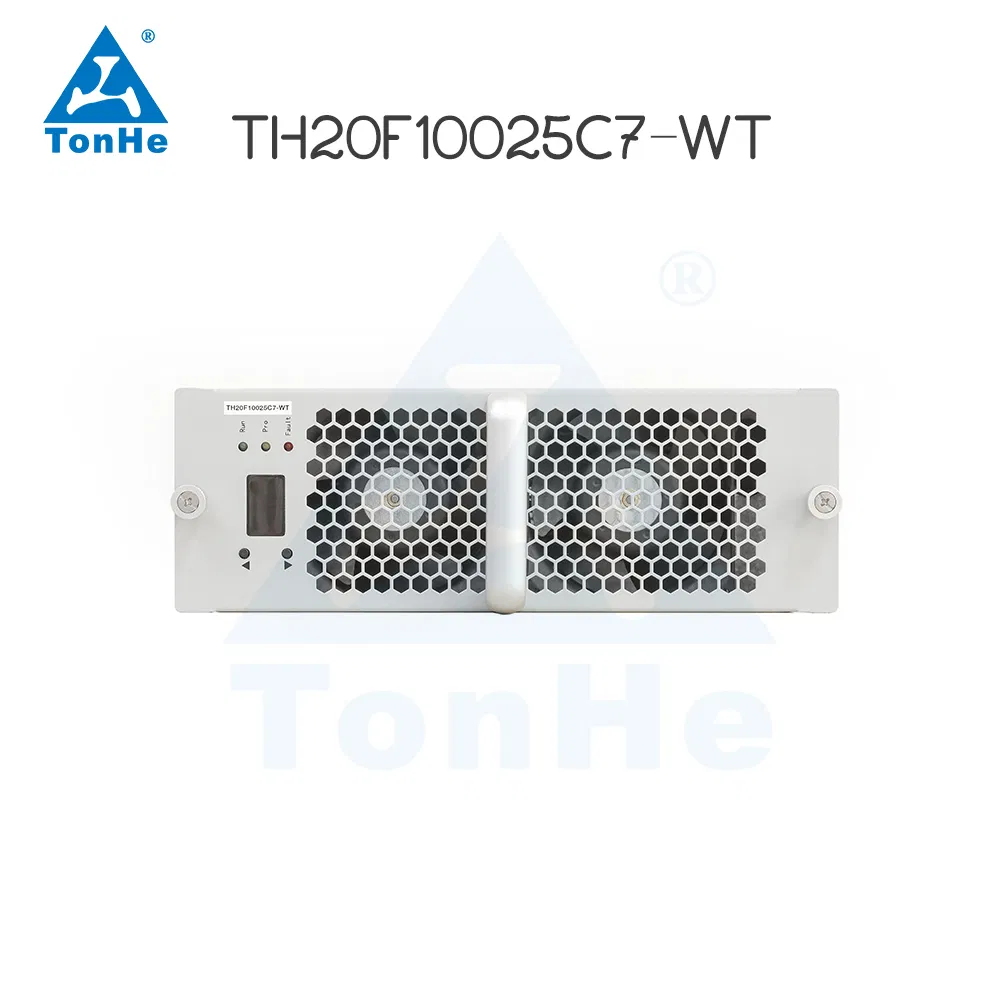

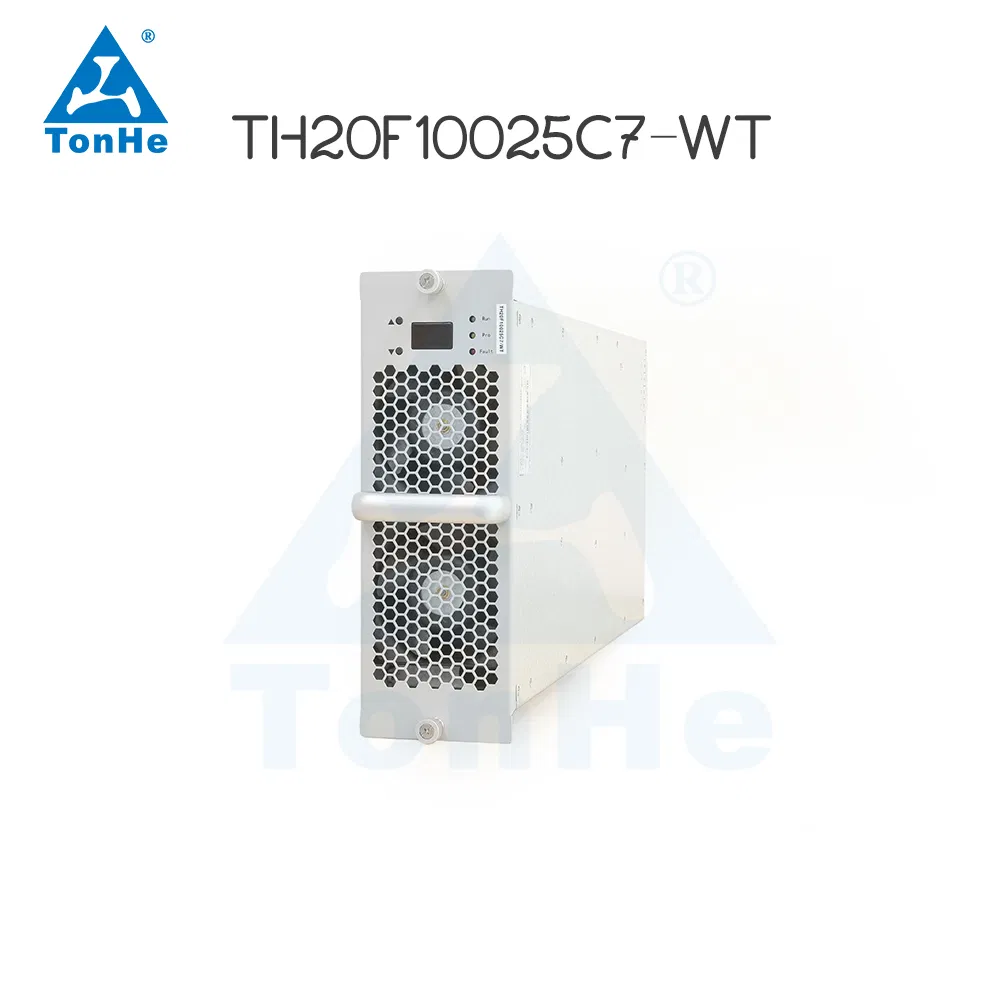

20kw Electric Vehicle DC Fast Charger Module 300V-1000VDC Class B for 60kw 120kw 150kw EV Charging Station Infrastructure

Basic Information

Model NO.

TH20F10025C7-WT

Type

Fast EV Charging Station

Output Function

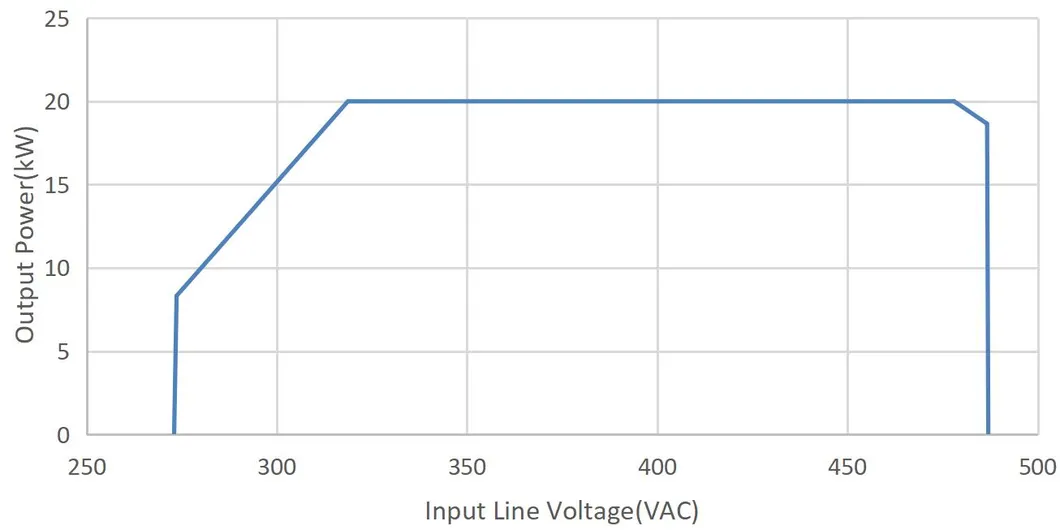

300-1000VDC

Input Voltage

274-487VAC

Interfaces

One Pile with Multiple Charges

Certification

CE, ISO, Kc

Warranty

12 Months

Production Capacity

5000PCS / Month

Product Advantages

Wide output constant power range: 300-1000VDC
Ultra-low standby power consumption: < 10W
Ultra-low total harmonic distortion: ≤5%
Ultra-wide operating temperature: -40ºC to 75ºC
High Conversion Efficiency: peak efficiency ≥ 96%

Packaging & Shipping

Package Size

59.00cm * 34.00cm * 15.00cm

Gross Weight

15.000kg

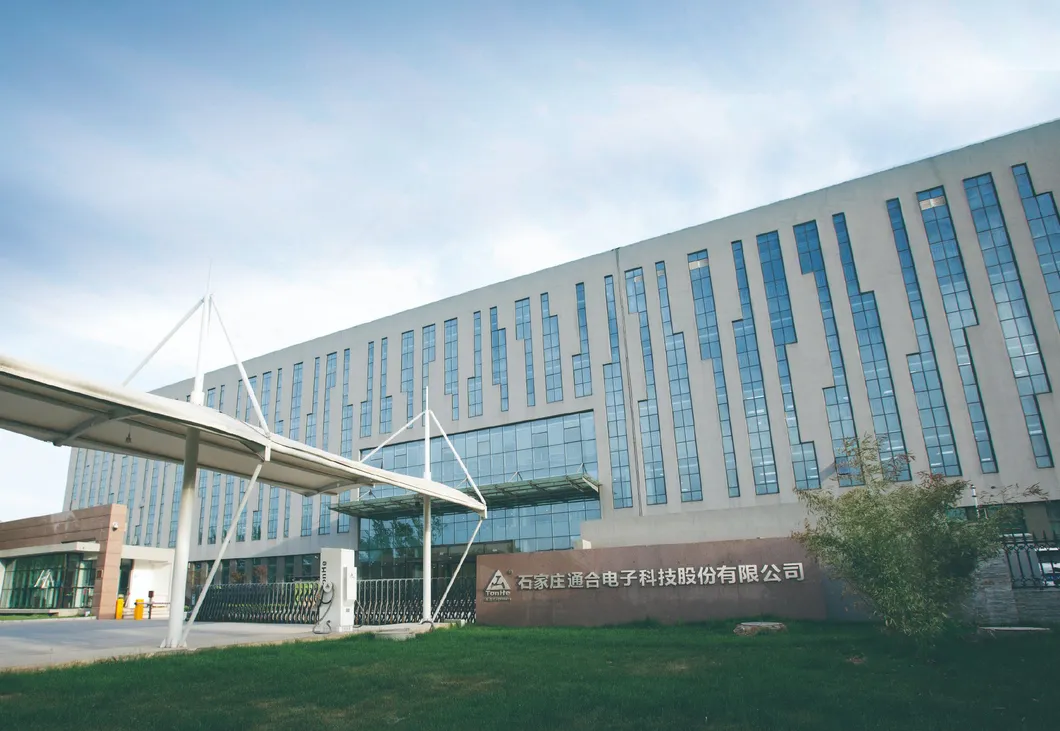

Company Profile

Sticks to technological innovation, focusing on the field of high-frequency power conversion technology. It is the first power electronic enterprise in China to have realized soft switching technology for the whole process of power conversion. The company has a number of internationally advanced and domestically leading core technologies.

In the EV charging and swapping industry, commitment is made to innovation in technology, products and management. EV charging power modules and EV charging system solutions are the focuses, providing "One-Stop Service" including R&D guidance, system solutions, technical training and after-sales services.

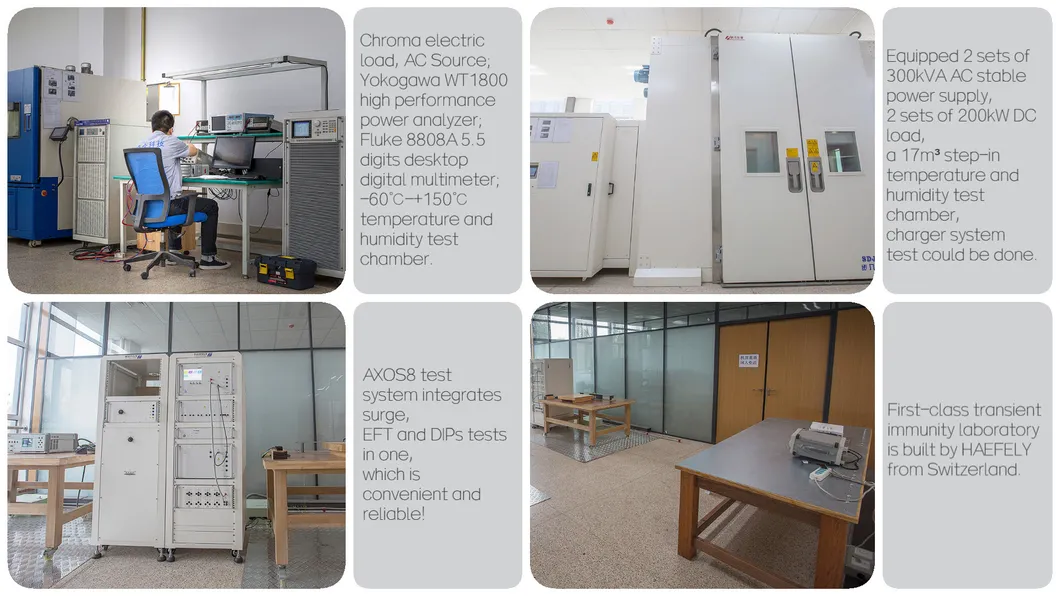

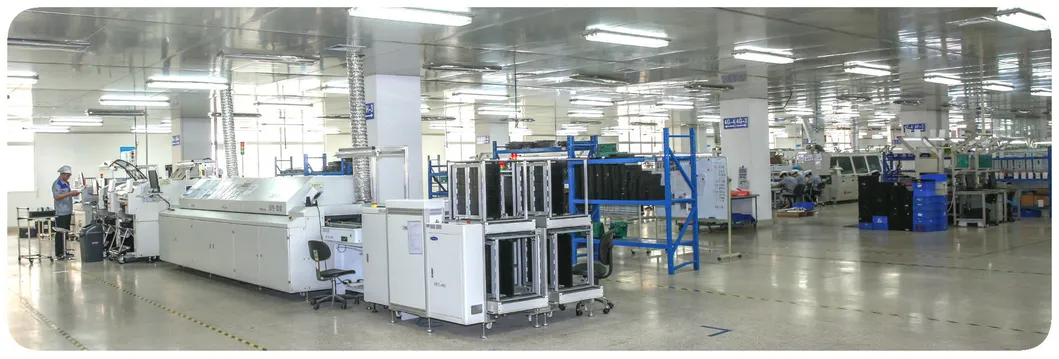

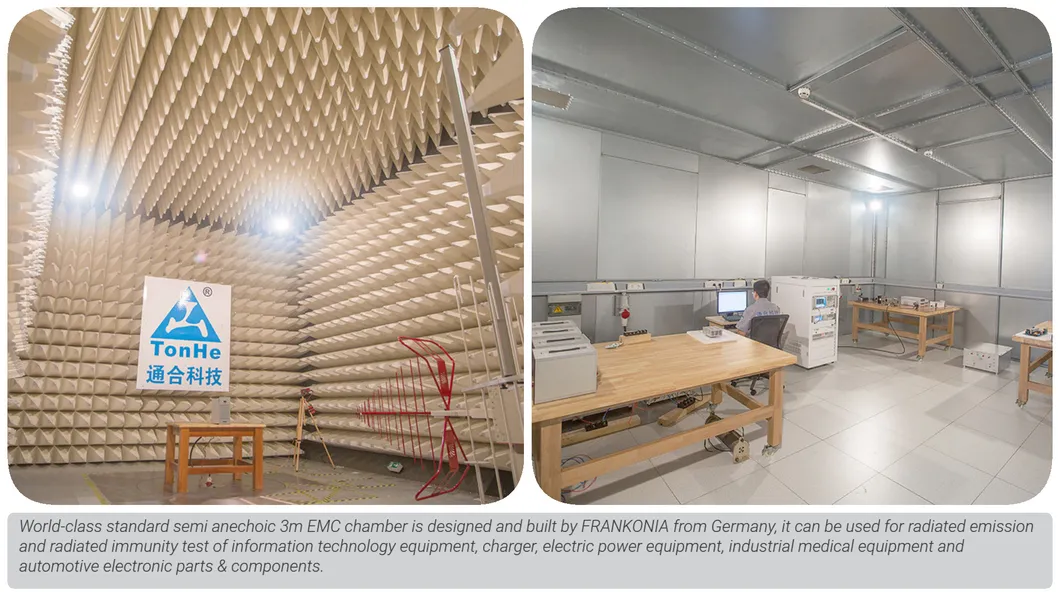

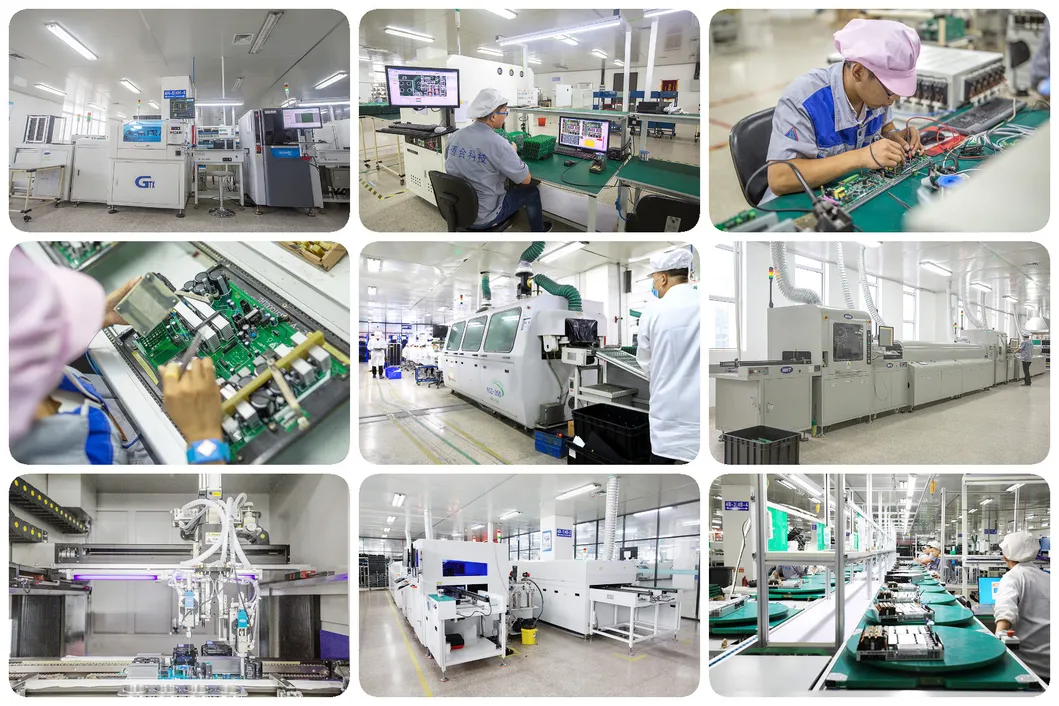

Manufacturing & Testing

Frequently Asked Questions

1. What are the module CAN baud rate and CAN voltage level?

- 125Kbs 5V.

2. Do the modules support glue filling?

- Yes, all series modules can support glue filling.

3. What is the delivery time for orders?

- Approximately 7 days for modules and 35 days for standard charging piles. Large or customized orders are coordinated based on workshop capacity.

4. How is the warranty and after-sales service handled?

- Standard warranty is 12 months. We provide both online and on-site after-sale service with a promised 24-hour response scheme.

5. What certifications have been obtained for products?

- Products are qualified with ISO, TUV, and CE certifications. The company also holds IATF16949 and CNAS certifications.

6. What are the installation requirements for the charging module?

- The module can be installed horizontally, side standing, or upside down (custom front panel required for upside down).
