LA Charger
1 / 5

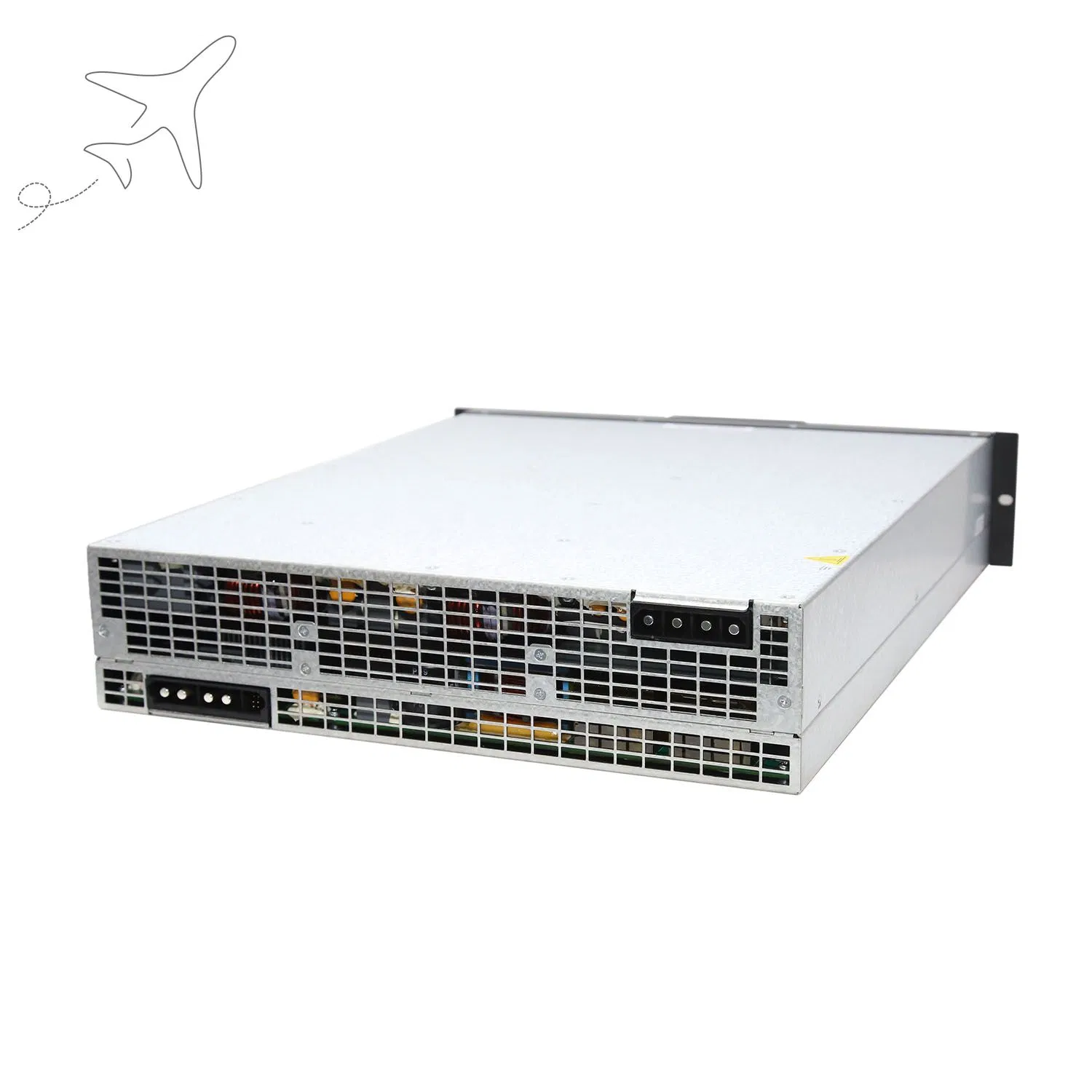

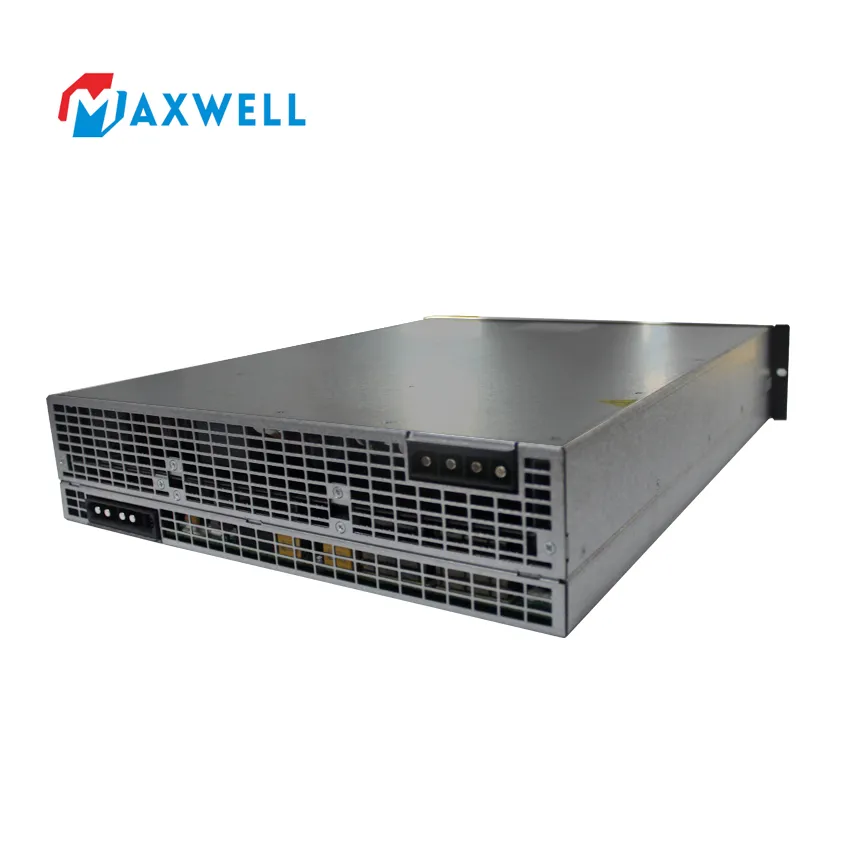

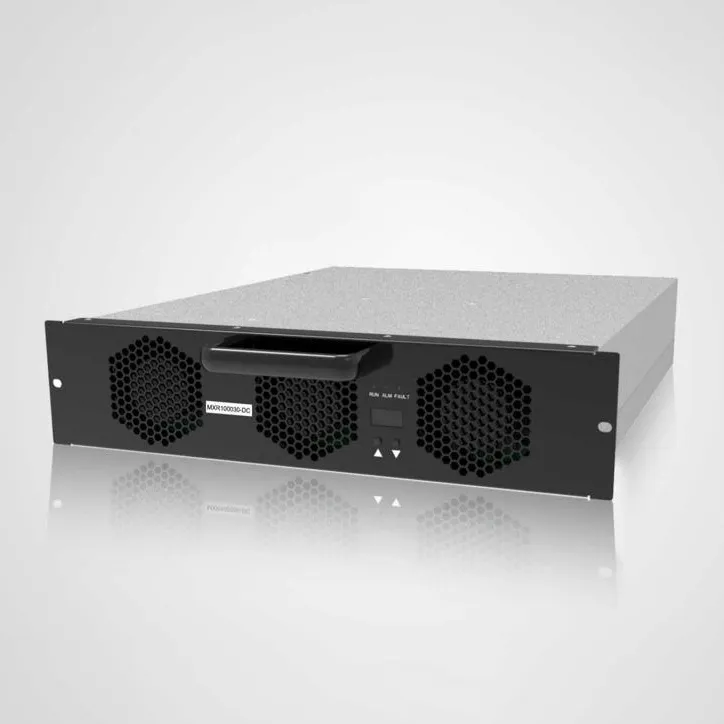

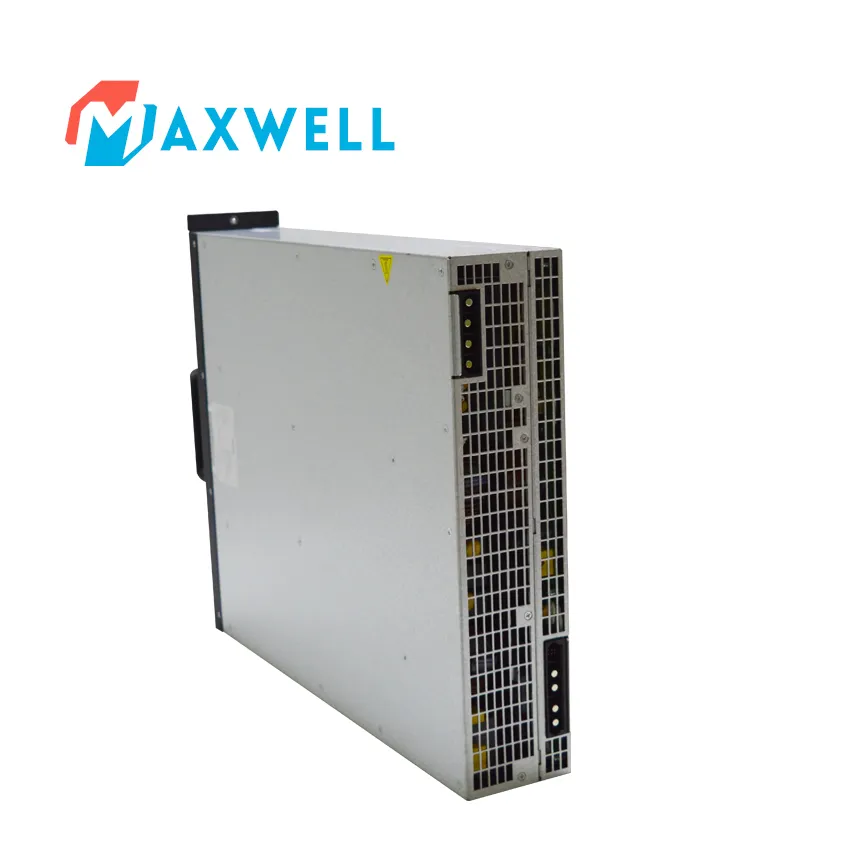

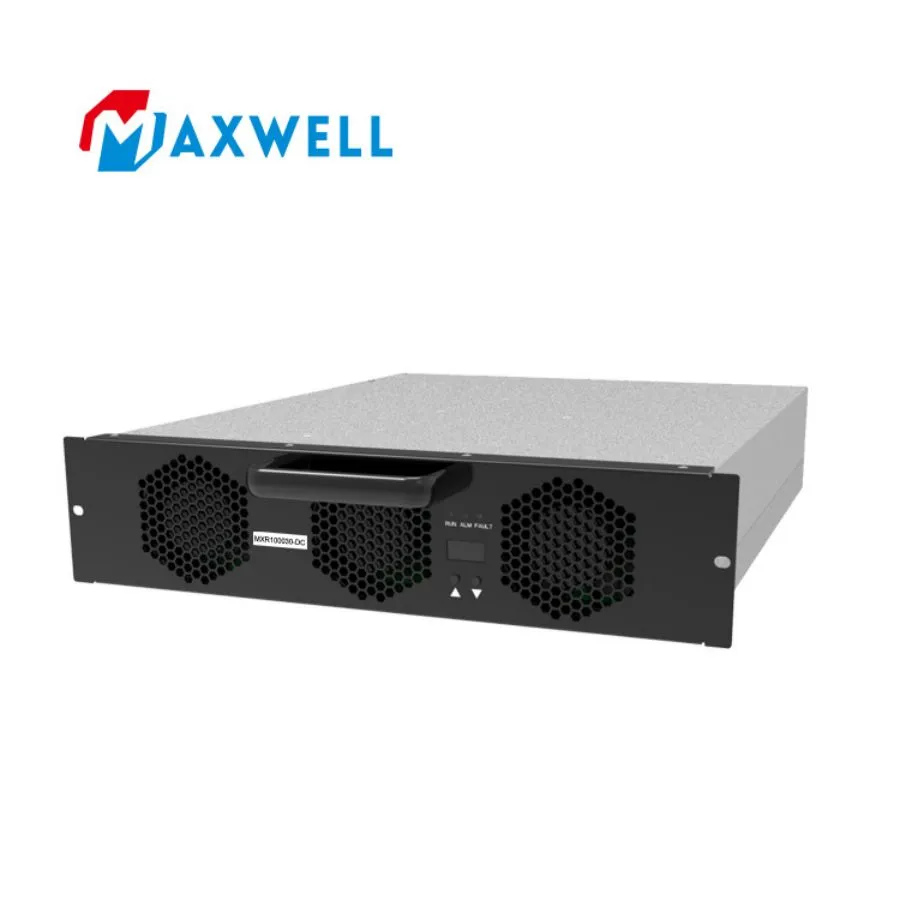

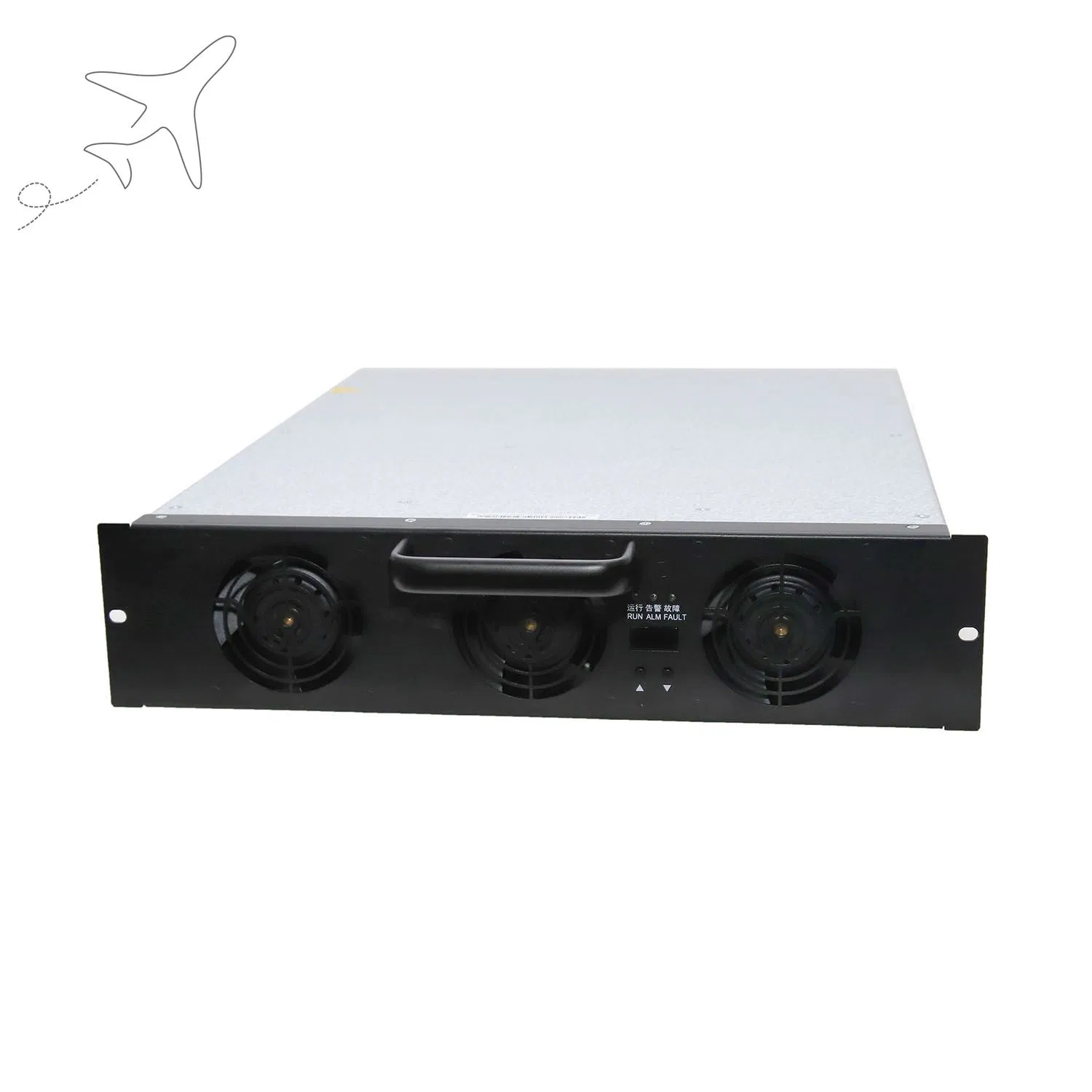

| Model | MXR100030-DC |
| Efficiency (Full Load) | ≥95.5% |
| Communication Protocol | CAN bus |
| Dimensions | 85mm(H)*360mm(W)*459mm(D) |
| Input Voltage | 240Vac~810 Vac, DC+PE |
| Output voltage | 100Vdc~1000Vdc |
| Output derating | above 55ºC |
1. Function details:

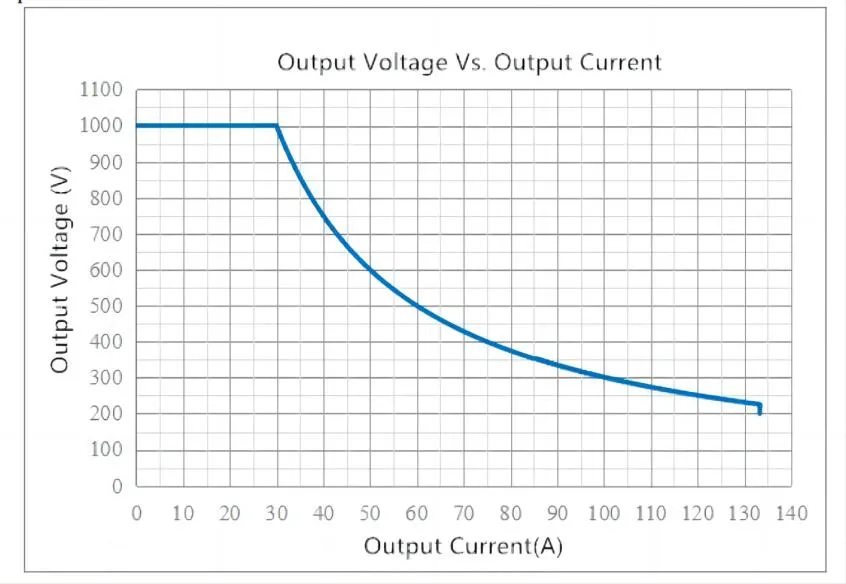

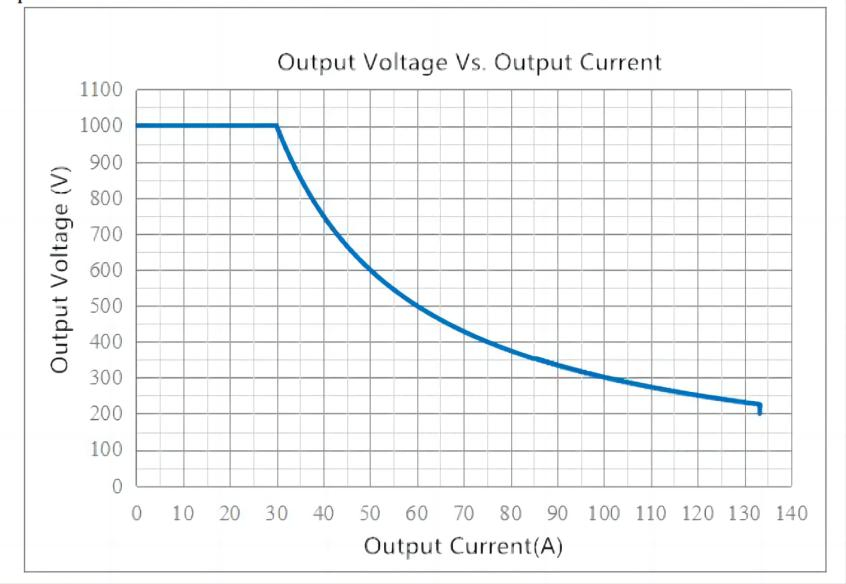

2. Output constant power control:

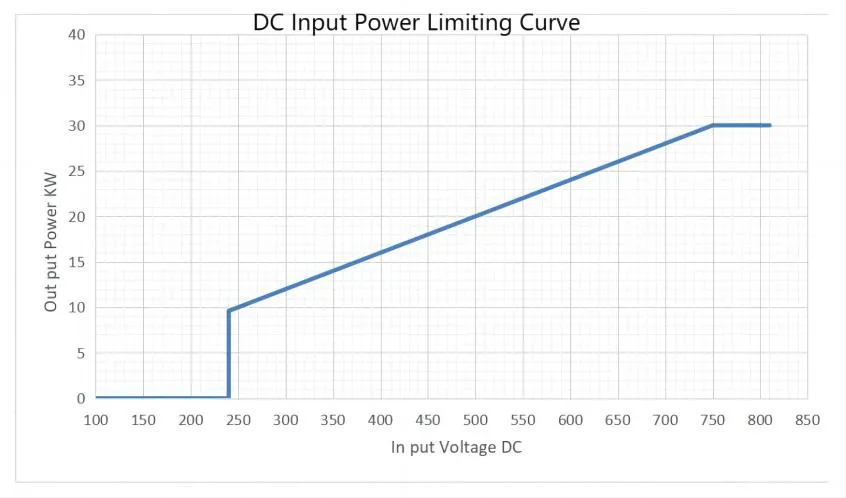

When the MXR100030-DC rated input voltage, the allowable output power of the module is 30kW.

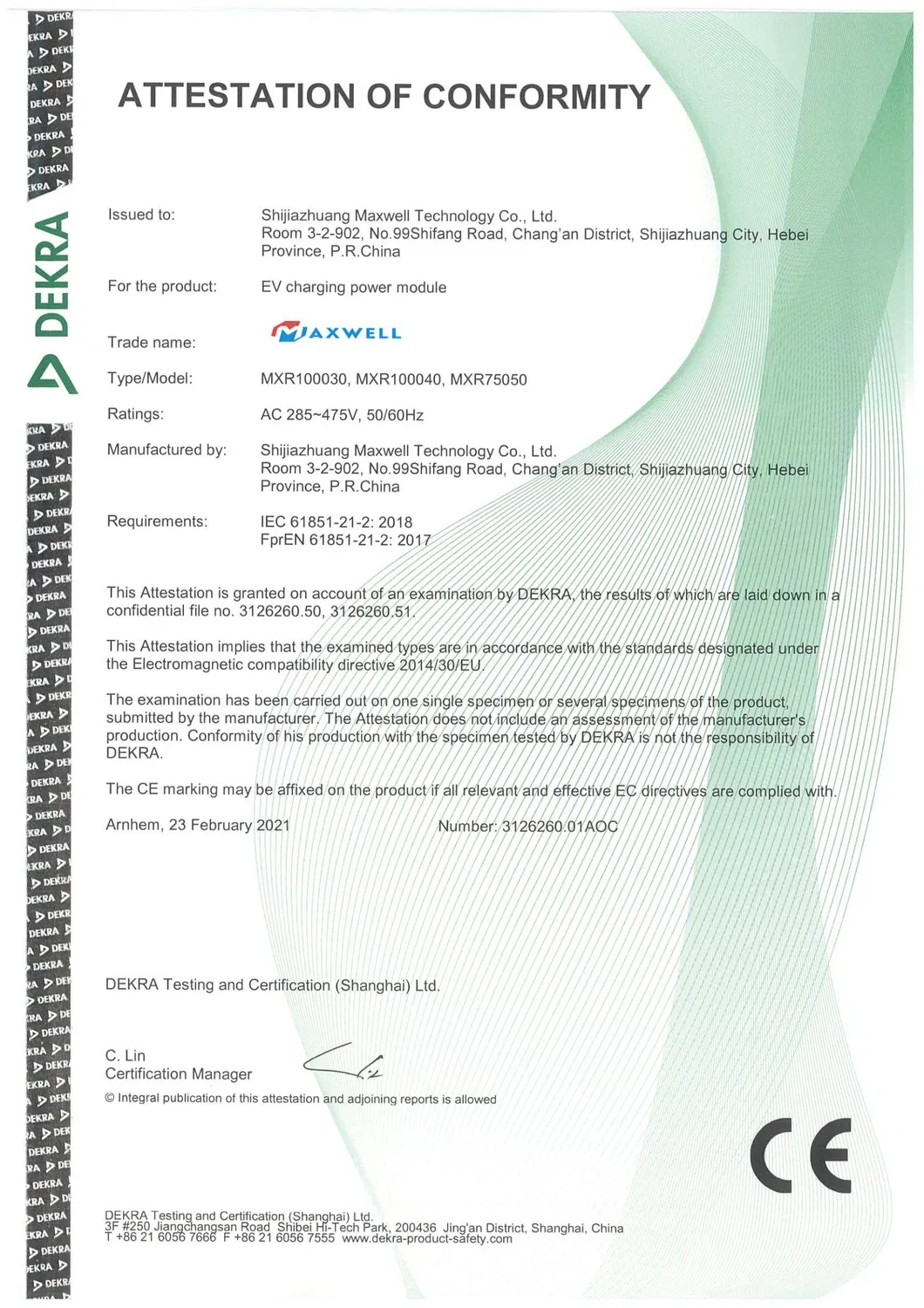

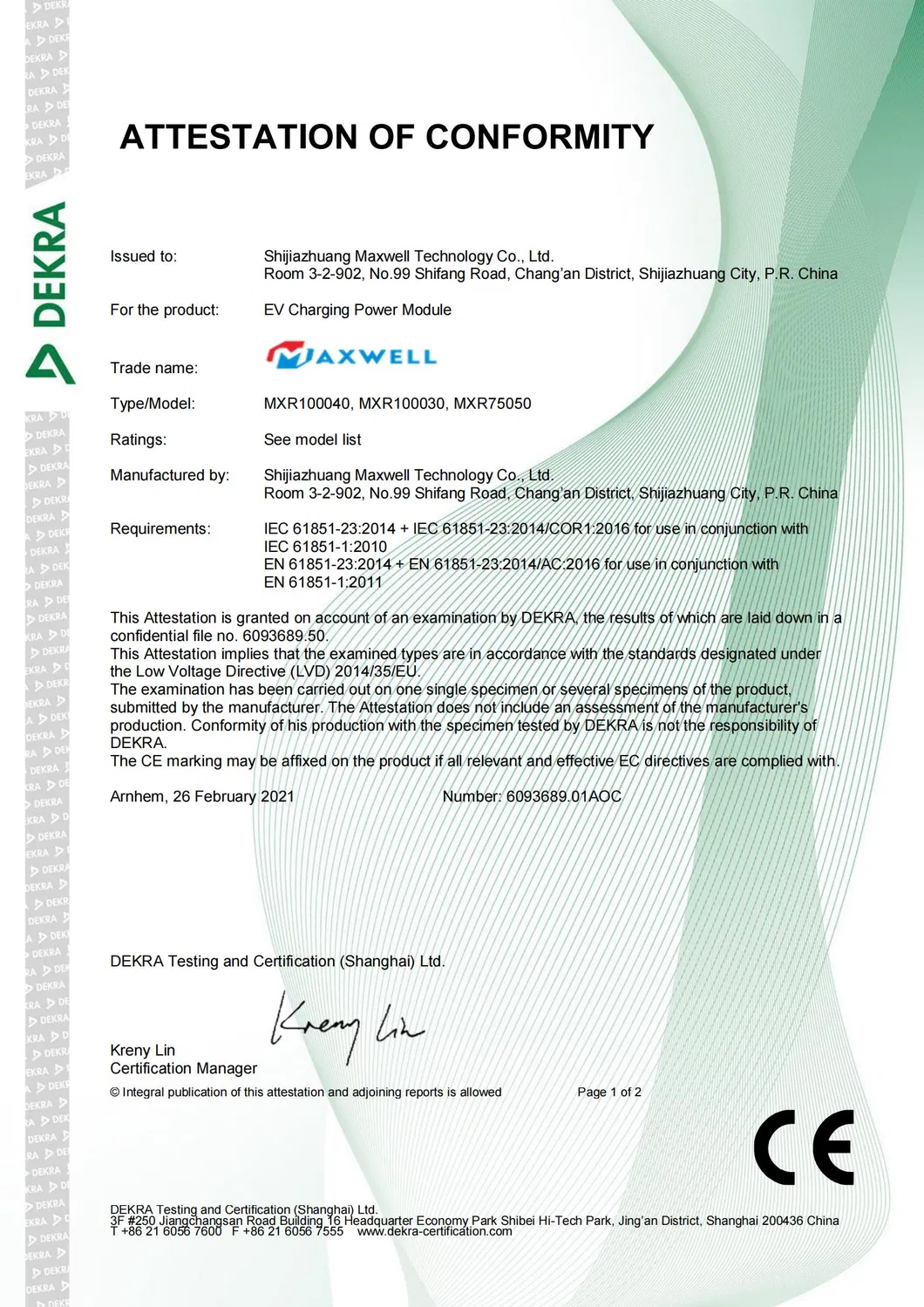

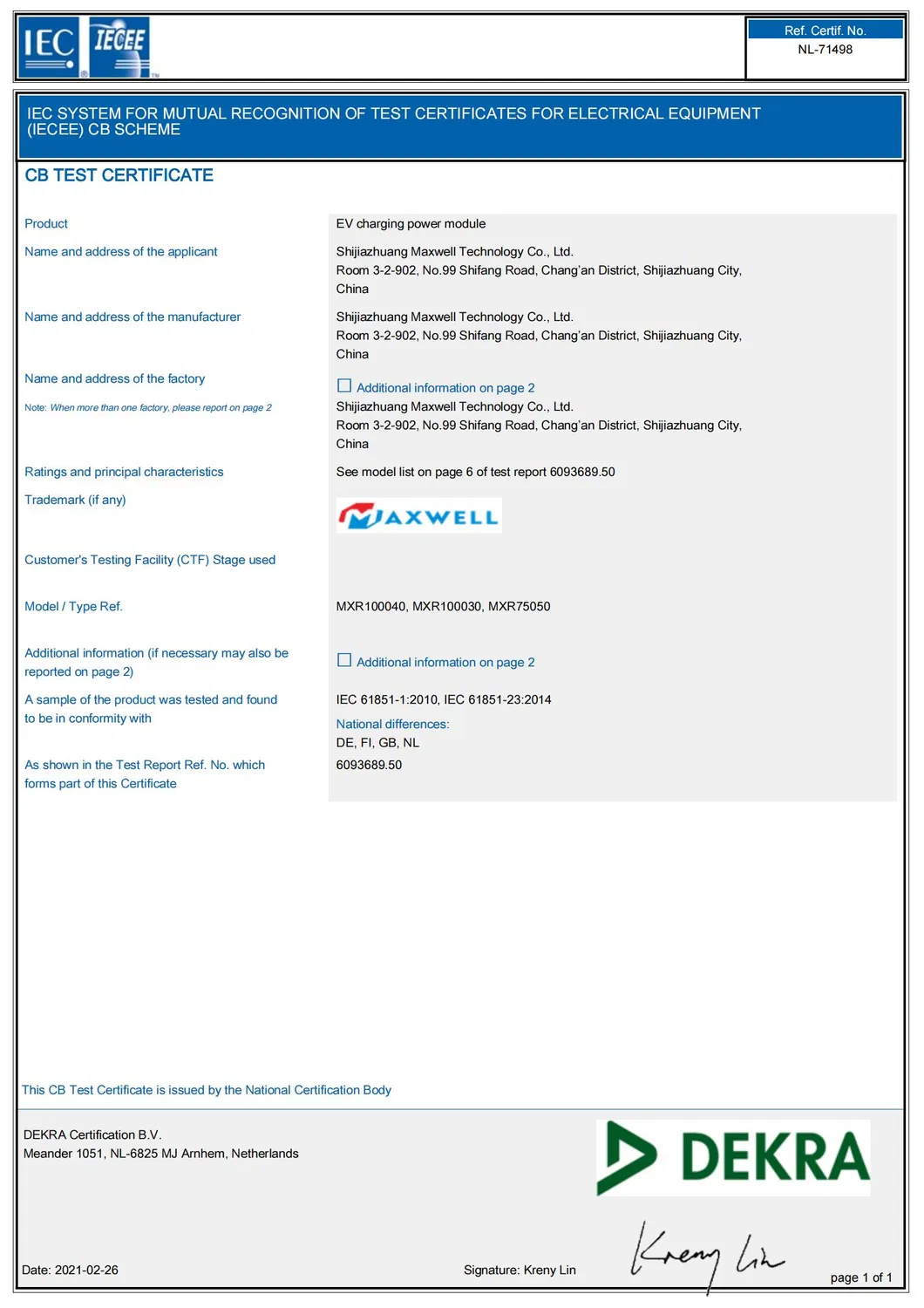

| CE / TUV / EMC | EN IEC 61000-6-1:2019, EN IEC 61000-6-2:2019, EN IEC 61000-6-3:2021, EN IEC 61000-6-4:2019, EN IEC 61851-21-2:2021 |

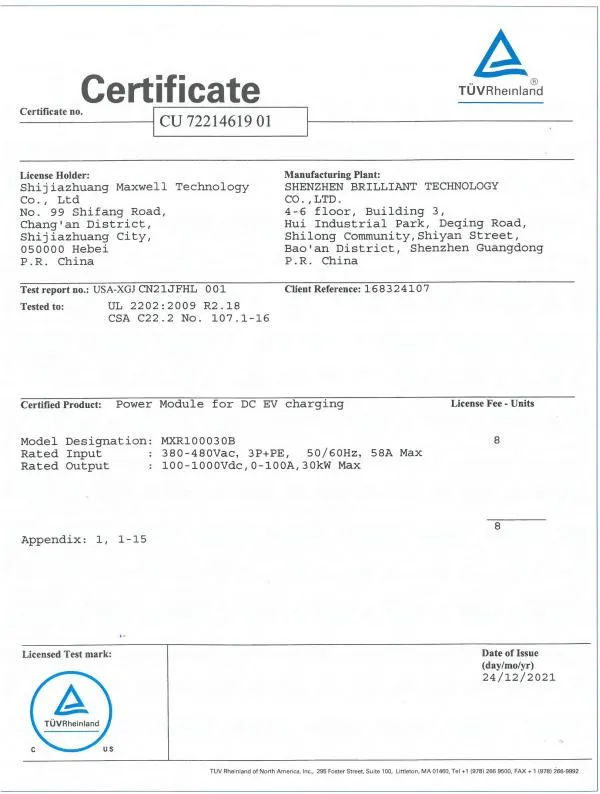

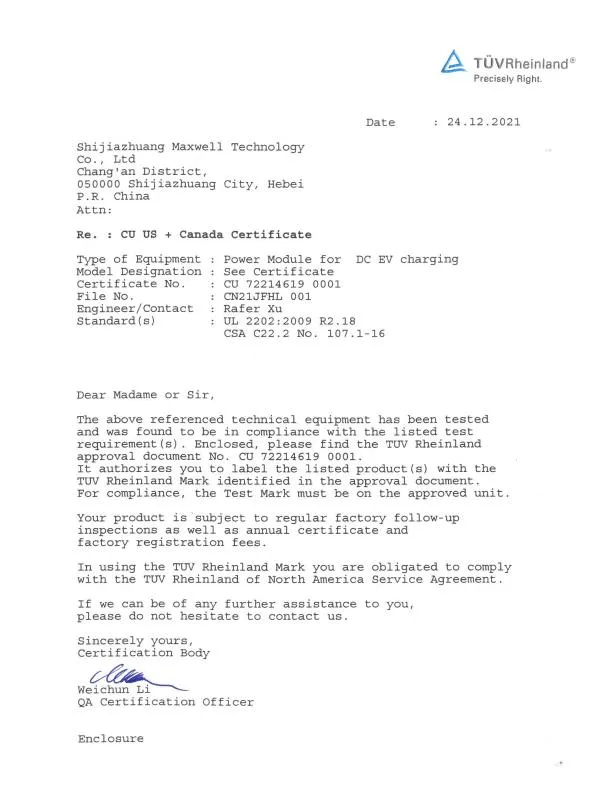

| cTUVus | UL 2202:2009 R2.18; CSA C22.2 NO.107.1-16 |
Strategic direction has focused into directions of energy storage and new energy.
Current New Energy Charging Products: 1000V 20KW, 1000V 30KW, 1000V 40KW, 1000V 50KW
Energy Storage (V2G) Products: MXR80025, MXR75027, MXC75050B etc.
1. Raw Material Management: Purchase from qualified suppliers, categorized environmental management, and data consistency tracking.

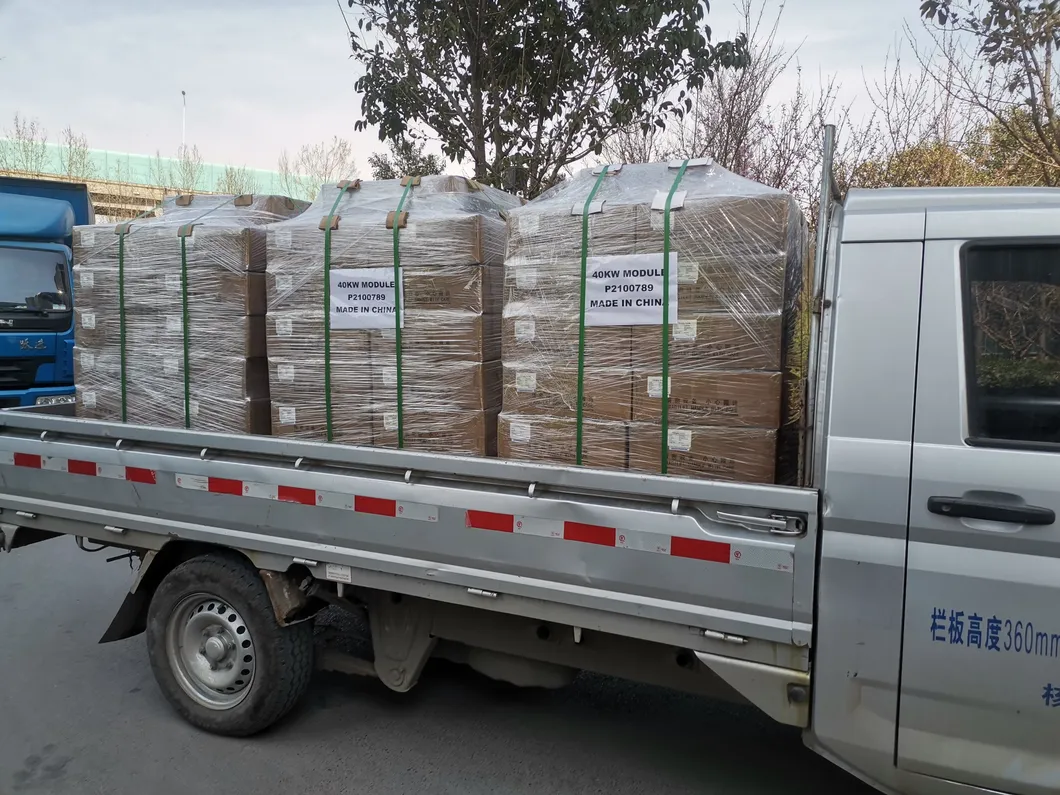

2. Production Link: SMT, Manual plug-in/wave soldering, Three anti-spray brush lines, Assemble, Debugging and Inspection, Aging Toaster Test, Packaging.
3. Product Traceability: Integrated management system ensures full traceability from raw materials to final delivery.
Warranty Period: 1 Year
• First 6 Months: Free replacement for non-human damage (shared freight).
• Second 6 Months: Free repair for non-human damage.
• Technical Support: Engineers available for assistance during testing processes.
