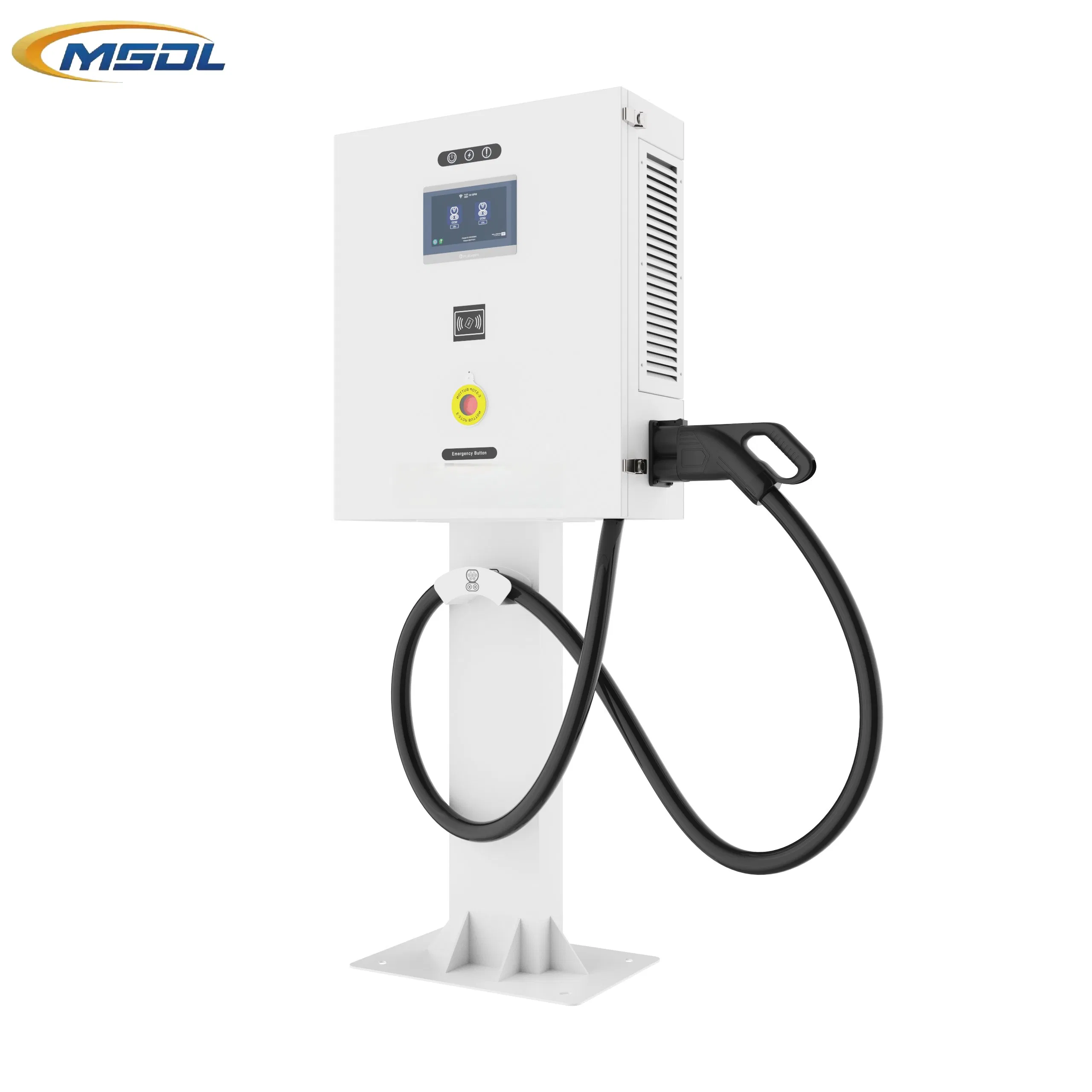

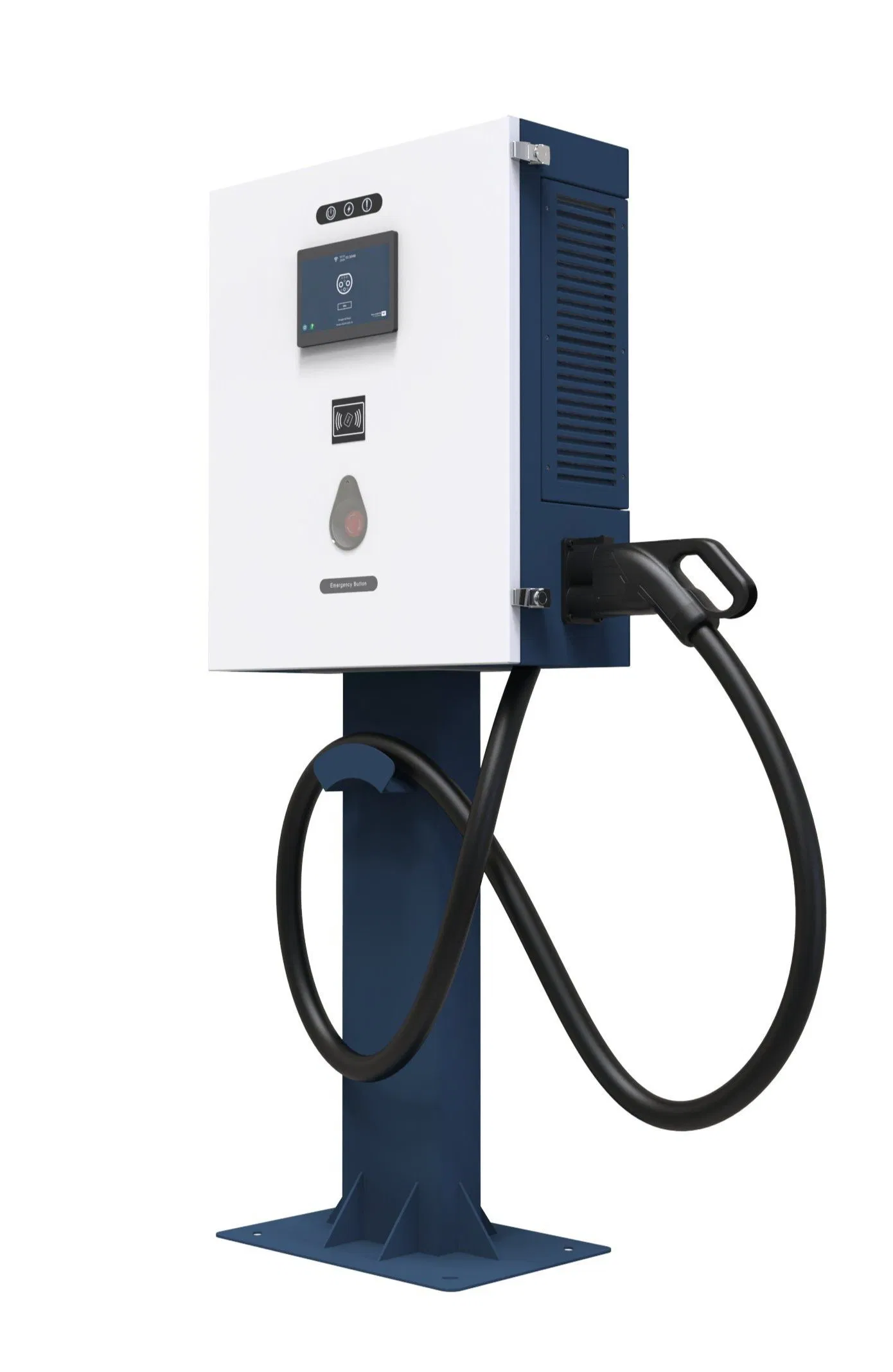

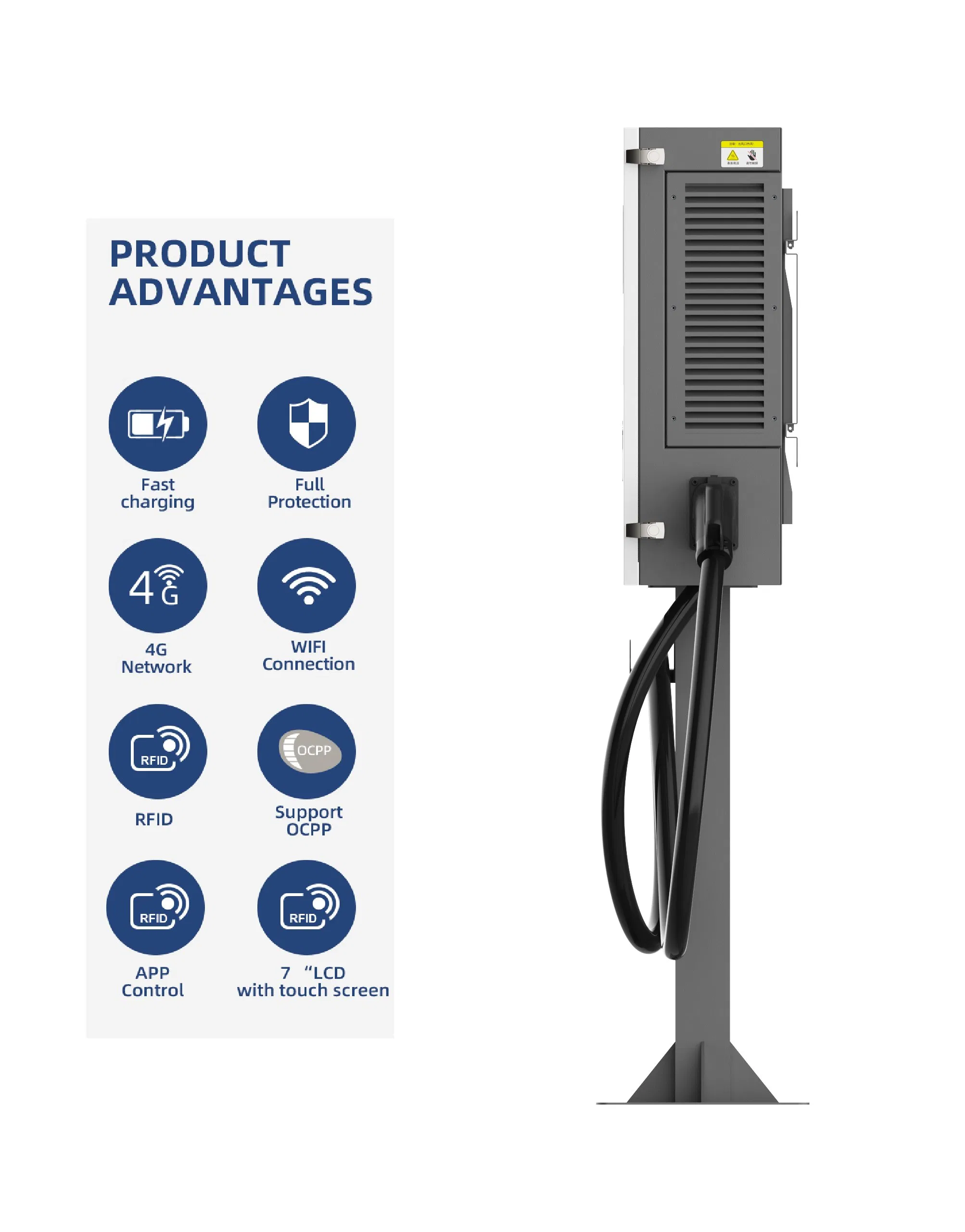

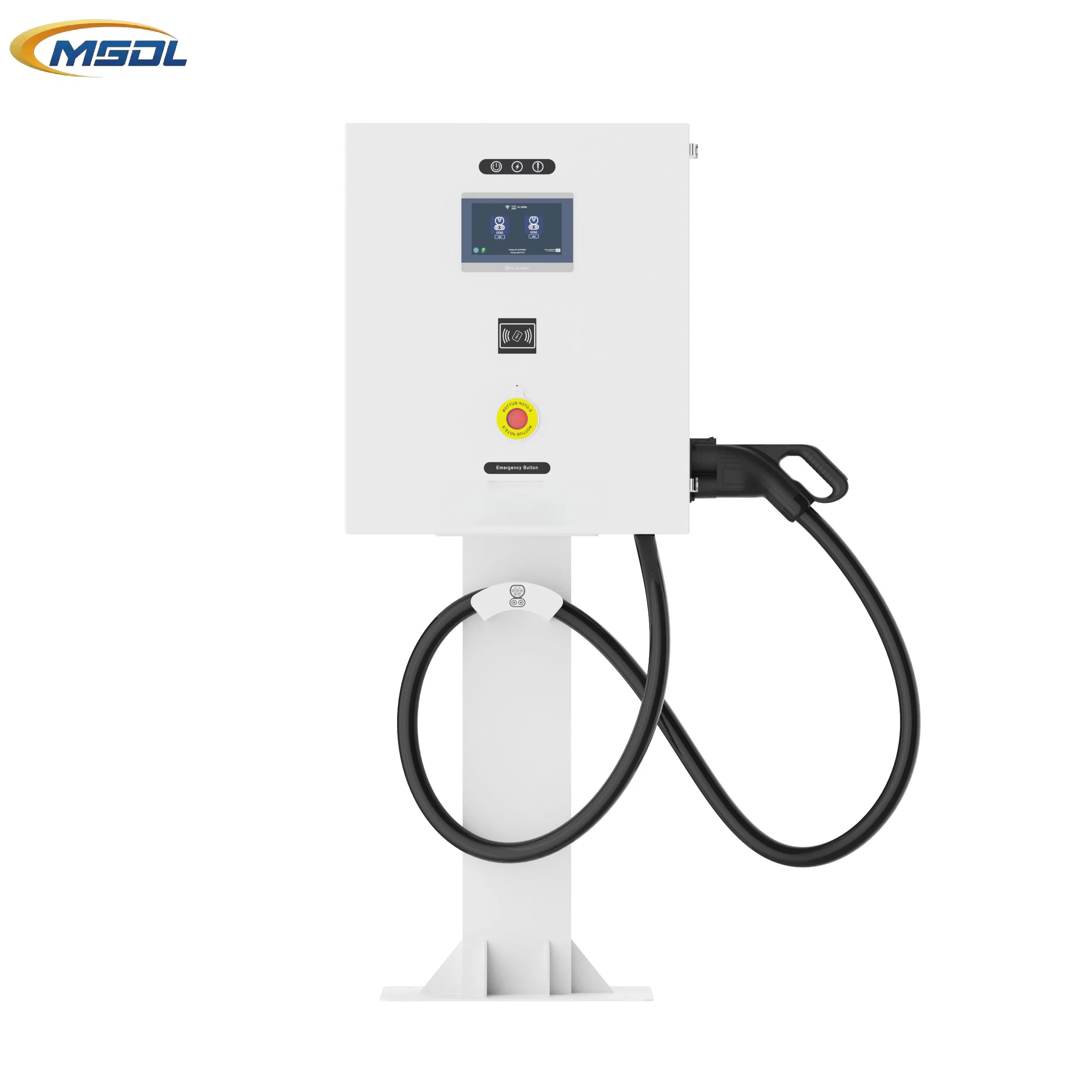

20kW-40kW wall-mounted DC charging station
This wall-mounted DC charging station is designed with a "minimalist-first" philosophy, featuring a classic black-and-white color scheme. Through distinct functional zones and bold color contrasts, it achieves a clean, sharp aesthetic with a distinctly modern feel. We deliberately eliminated redundant decorative elements, allowing the product to return to its core charging function. The overall form embodies technical beauty within simplicity, seamlessly integrating into diverse architectural environments while highlighting the device's professionalism and functionality.
Streamlined operation process with a single physical button start and high-brightness LED status indicators.
Equipped with a sturdy cable holder to prevent sagging, tangling, or crushing, extending cable lifespan.
Comprehensive protection including overvoltage, lightning, overcurrent, leakage, and IP54/IK10 ratings.
| Model NO. | MS04 |
| Start Mode | RFID, Credit Card, Mobile Remote Operation |
| Dimensions (L x D x H) | 650mm x 260mm x 750mm (Wall) |
| Rated Power | 20-40kW |
| Output Voltage | 200 - 1000VDC |
| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS |
| Ingress Protection | IP54 / IK10 |
| Operating Temperature | -30°C to 75°C |
| Efficiency | Peak efficiency ≥96% |
| Power Factor | >0.99 |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Input Frequency | 50/60Hz |
| Cooling Method | Air Cooled |
| Emergency Stop | Button Disables Output Power |
| Storage Humidity | ≤ 99% RH (Non-condensing) |
