Empowering Networks Energy Storage Solutions for Base Station Efficiency

Customization:	Available
Type:	Energy Storage
Usage:	Electric Power

📋 Overview & Basic Info.

Model NO.Energy Storage

Nominal Voltage48V

Discharge RateHigh Discharge Rate

ElectrolyteLi-ion

Power33.12kwh

Protection LevelIP21

Efficiency>95%

MTBF>100000 Hours

CoolingAir Cooling

EnvironmentIndoor

🚀 Product Description

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs.

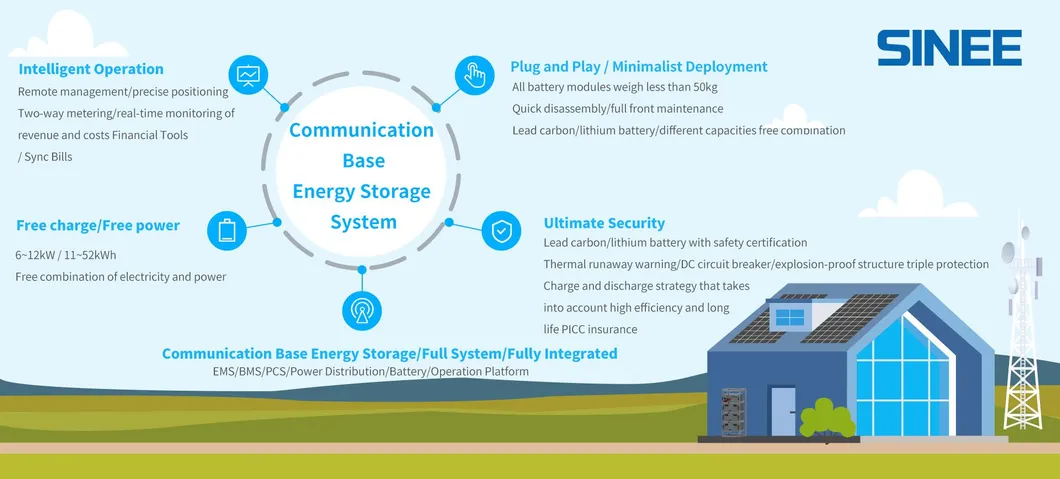

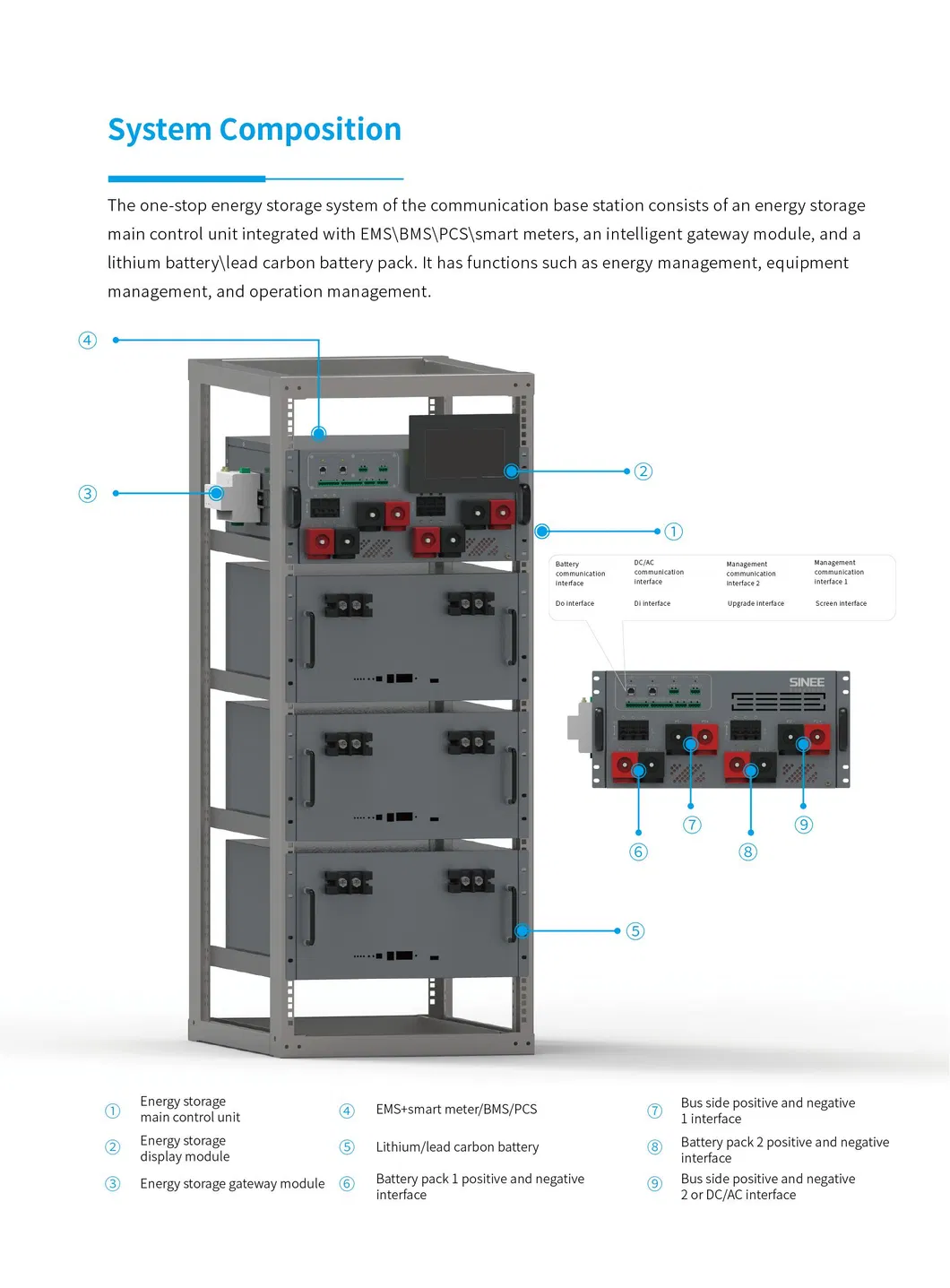

💎System Integration: EMS / BMS / PCS / power distribution / battery / operation platform one-stop solutions.

🛡️Safe and Stable: Thermal runaway warning/DC circuit breaker/explosion-proof structure triple protection.

⚡Minimalist Deployment: Modular design enables quick disassembly, installation in only 15 minutes.

📊 Product Parameters

Category		Lead Carbon System	Lithium Battery System
Mechanical	Weight	860kg (2V500Ah)	370kg (3.2V230Ah)
	Size(LWH)	10405401485mm	680489.51528mm
	Cooling	Air Cooling	Air Cooling
Electrical	Power	22kWh	33.12KWh
	Voltage Range	42VDC~58VDC	42VDC~58VDC
	Efficiency	≥95%	≥95%

🛠️ Installation Instructions

🏢 Company Overview

❓ Frequently Asked Questions

🔹 What is the primary use of this energy storage system?

It is specially designed for communication base stations to reduce peak load demand and save electricity costs through intelligent charging and discharging.

🔹 How long does the installation take?

Thanks to the modular design, the complete installation for a standard base station takes approximately 15 minutes.

🔹 Is the system compatible with different battery types?

Yes, it is compatible with mainstream batteries on the market and supports parallel use of different types, capacities, and batches.

🔹 What are the safety features included?

The system features a triple protection design including thermal runaway warnings, DC circuit breakers, and an explosion-proof structure.

🔹 Does it support remote monitoring?

Yes, the intelligent operation platform allows for remote monitoring of equipment status and accurate calculation of energy storage revenue across thousands of stations.

🔹 What is the protection level for indoor use?

The system is rated at IP21 protection level, making it suitable for standard indoor installation environments.
