| Model NO. | HBS1-AGQ25F-11Z/J/S |
| Product Name | Latching Switch |

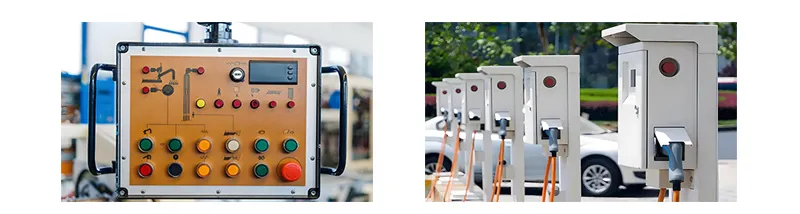

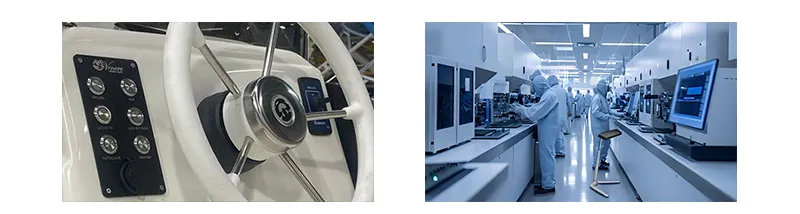

| Application | Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial |
| Switch Rating | 5A/250V |
| Contact Configuration | 1NO1NC |

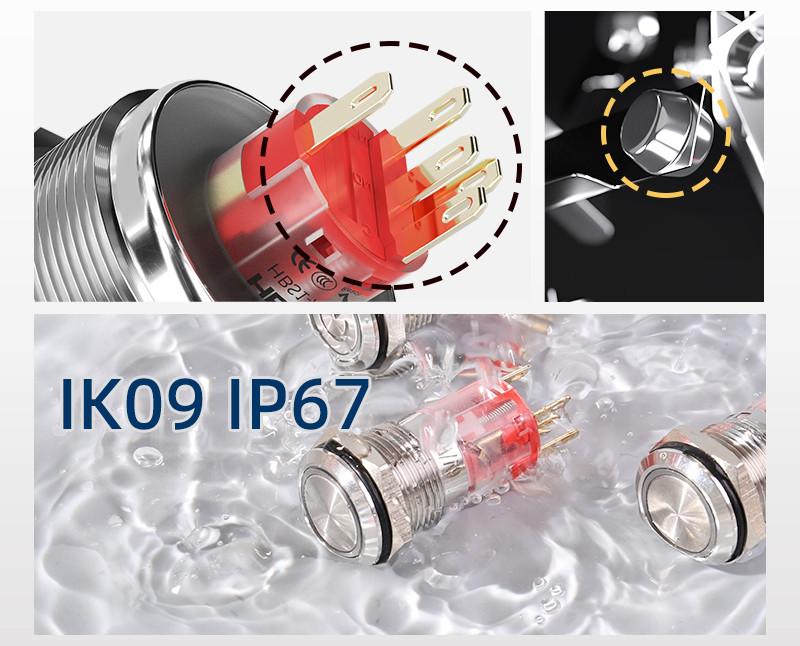

| Waterproof Class | IP67 |
| Shell Material | Stainless Steel |
| Terminal Type | Pin Terminal |

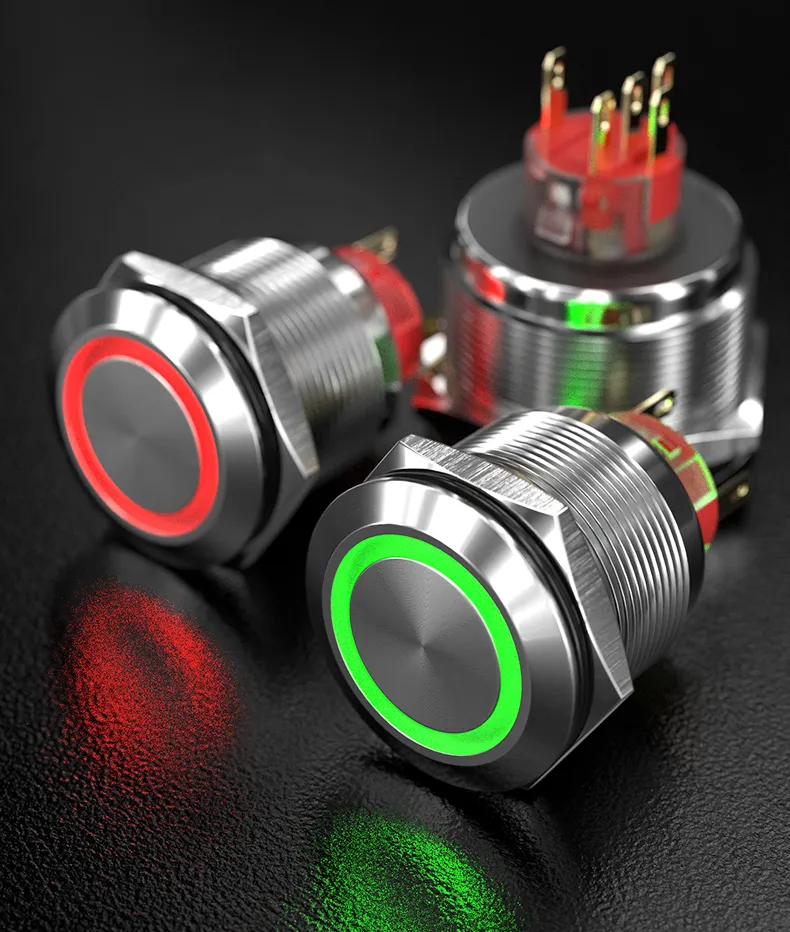

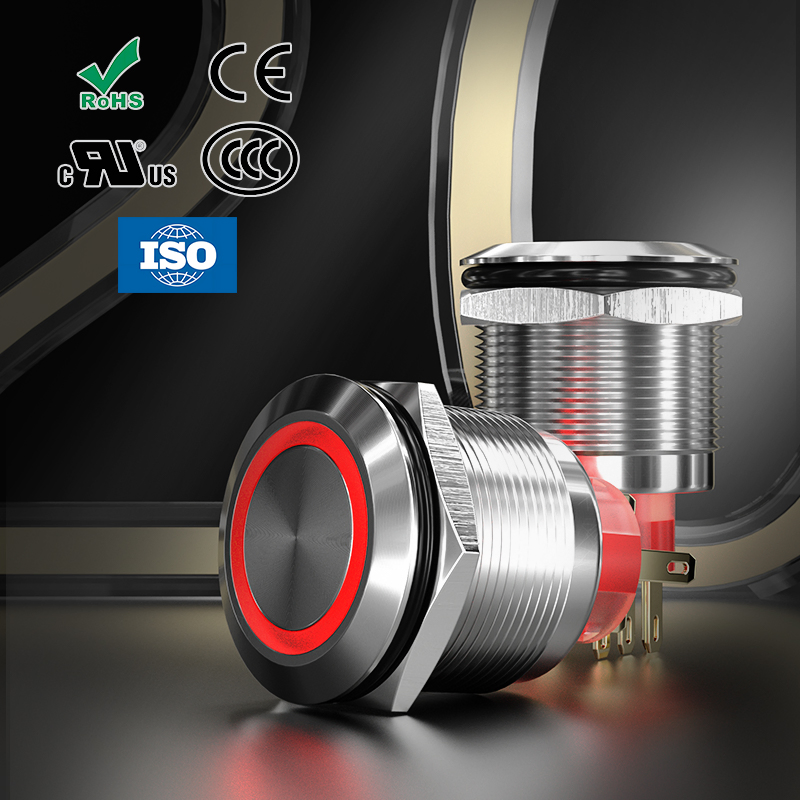

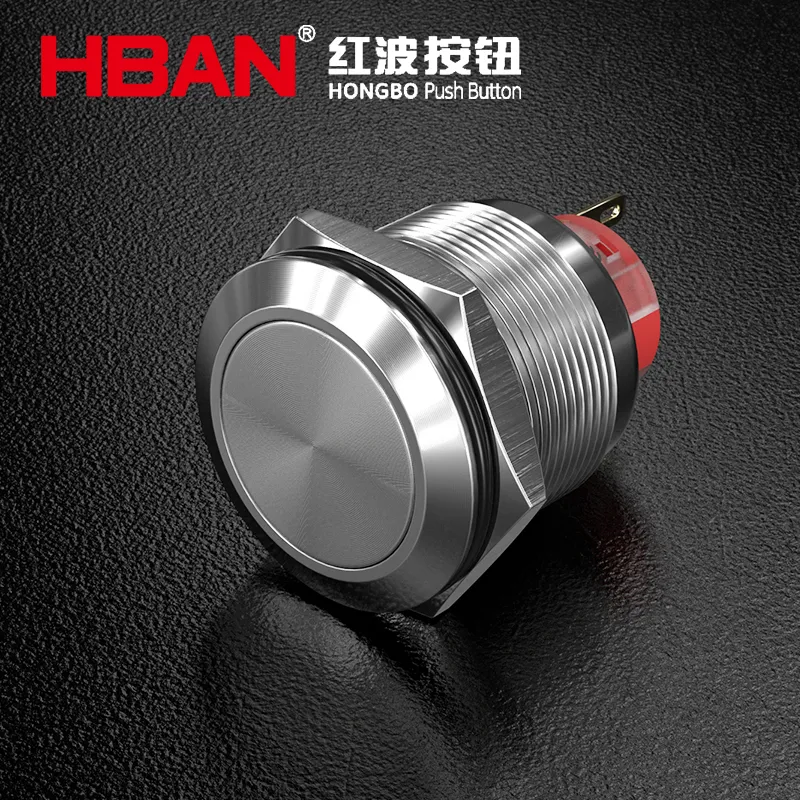

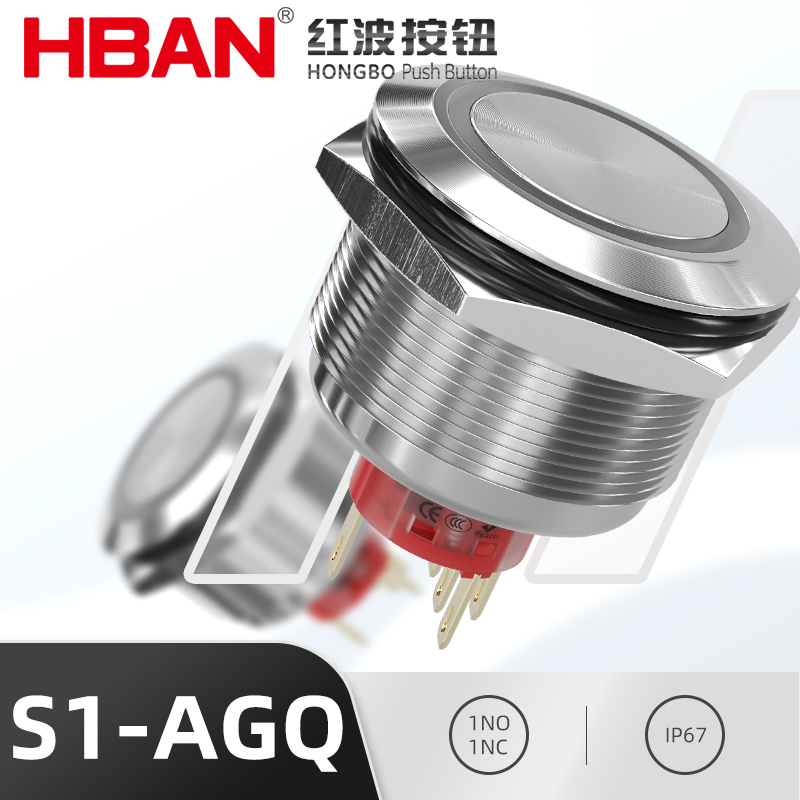

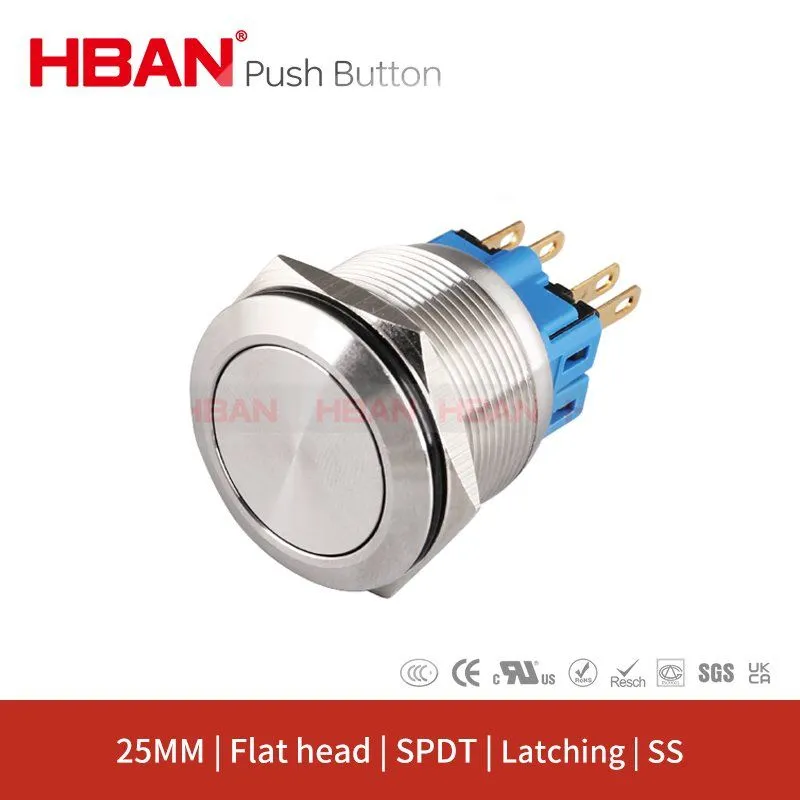

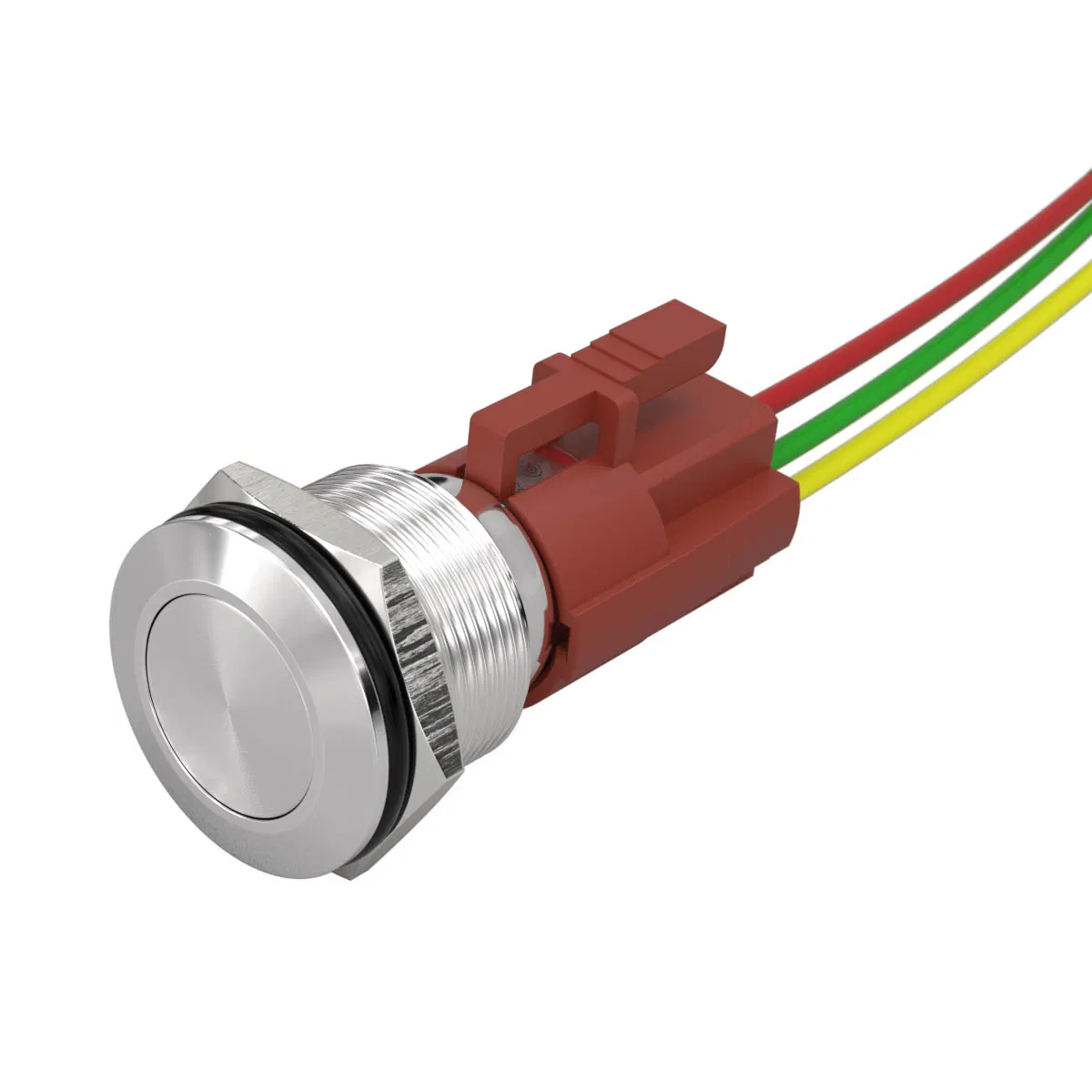

HBAN 25mm Stainless Steel 5 AMP IP67 on-off Latching Push Button Switch
| Mounting hole size | 25mm |
| Switch value | 5A/250VAC |
| Operation type | Latching |
| Mechanical life | ≥1,000,000 times |
| Pins material | Brass gold-plated |
| Contact material | Silver alloy |
| Front Shape | F: Flat head, C: Concave, B: Domed, M: Mushroom |
| Lamp Type | D: Dot LED, E: Ring LED, ET: Ring Power Symbol |
| Operation | Momentary, Z: Latching, X: Selector, Y: Key Switch |
| LED Voltage | 6V, 12V, 24V, 36V, 110V, 220V |
| LED Color | Red, Green, Yellow, Orange, Blue, White |

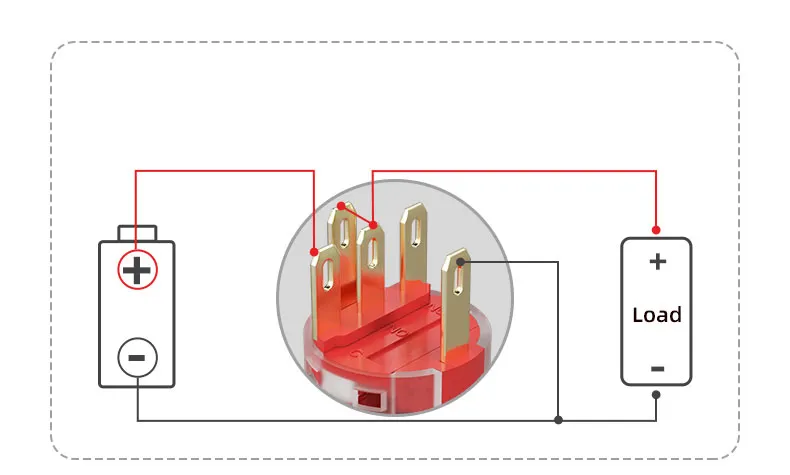

1. Press to Turn ON (NO):
2. Press to Turn OFF (NC):

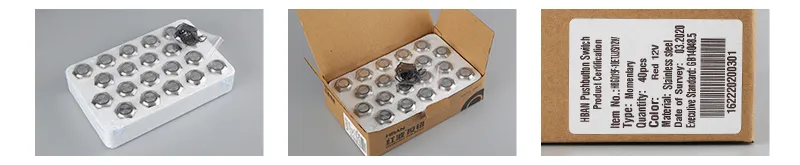

● Standard Pack: 20 pieces per foam box with rubber rings.
● Outer Pack: 25 boxes per 5-layer corrugated export carton.
● Shipping: Worldwide shipping via Express (DHL/FedEx/UPS), Air, or Sea. 3-7 business days lead time.
