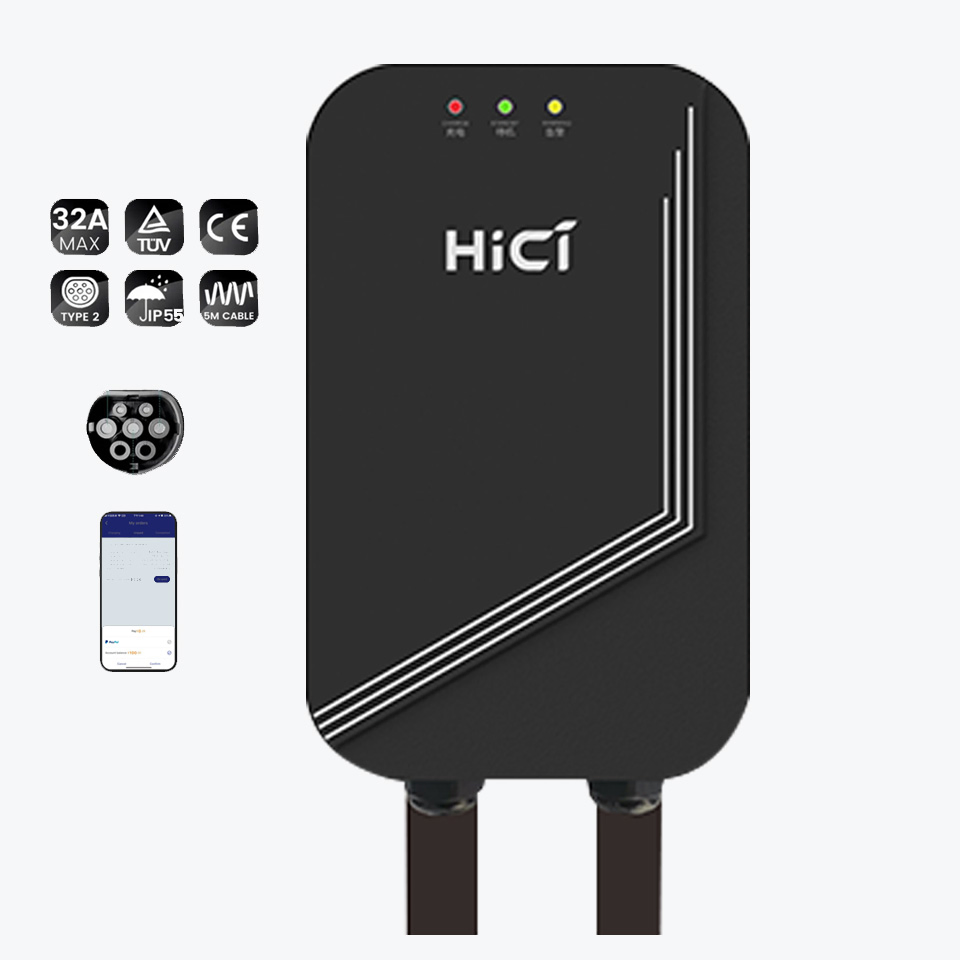

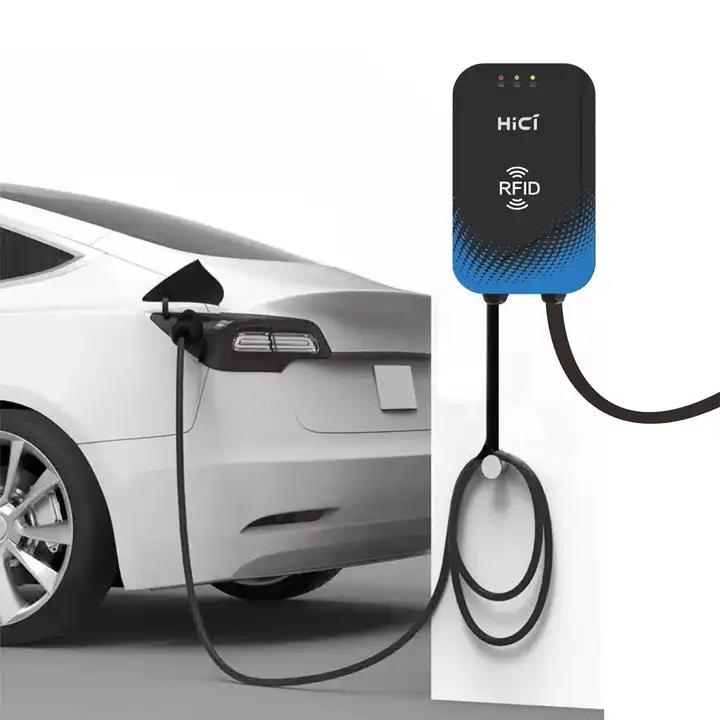

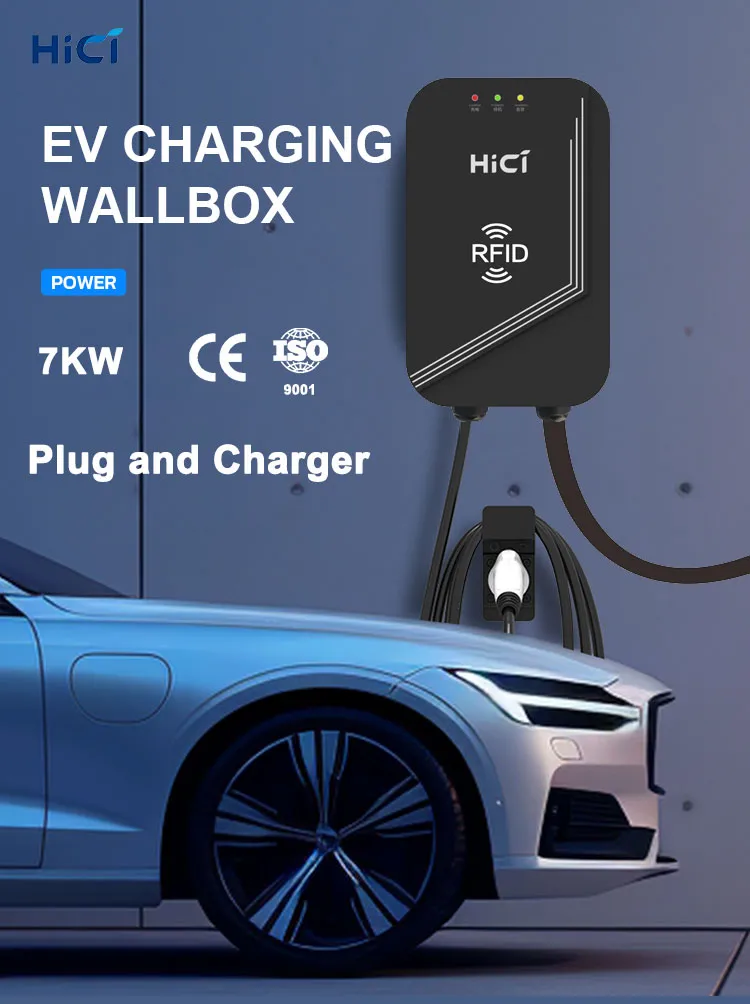

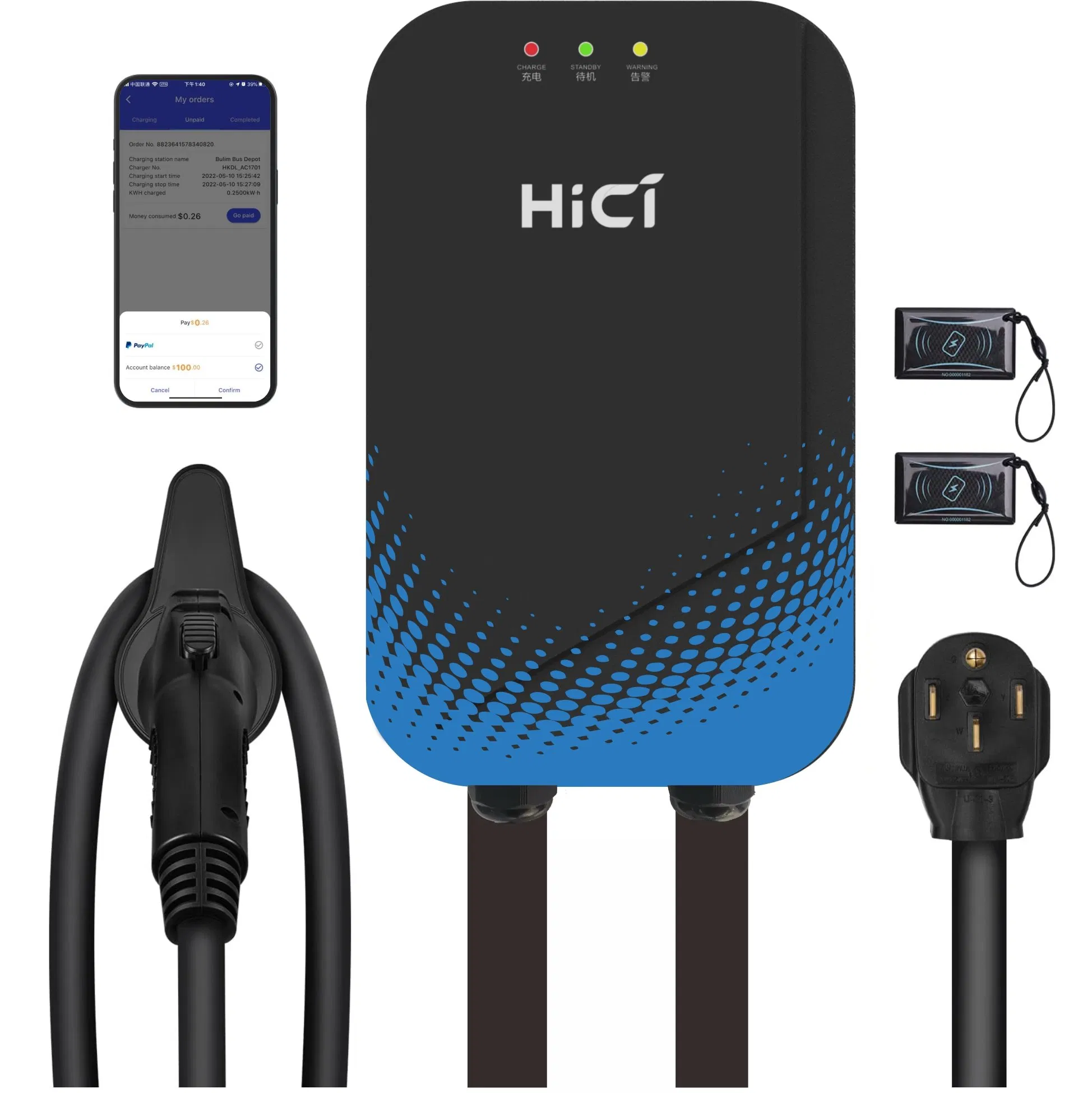

Home Commercial Use 7KW AC Charging Station Charging Point EU Standard
As a leading manufacturer of Electric Vehicle Charging Systems, we develop advanced DC and AC charging solutions ranging from 7KW to 600kW. Our charging systems serve charge point operators, retail centers, fleets, and more worldwide, supporting electric vehicles, transit shuttles, and specialty vehicles.
It's often referred to as the "on-board charger." It converts power from AC to DC and feeds it into the vehicle's battery. This is the most common charging method for electric vehicles today, utilizing standard AC power grids.
| Feature | Specification |
|---|---|
| Charging Type | AC Charger |
| Localization | CE |
| Max AC Output | 7kW |
| Input Voltage Range | 230VAC / 400 VAC +/- 15% |
| Connector Types | 1P + N + PE / 3P + N + PE |
| Power Factor | > 0.99 (Full Load) |
| Standby Power | 10W |
| Protection | Overcurrent, Overvoltage, Ground Fault, Surge Protection |
| Connectivity | 4G, Ethernet, Wi-Fi |
| User Authentication | App, RFID, MAC |
| Communication Protocol | OCPP 1.6 JSON |

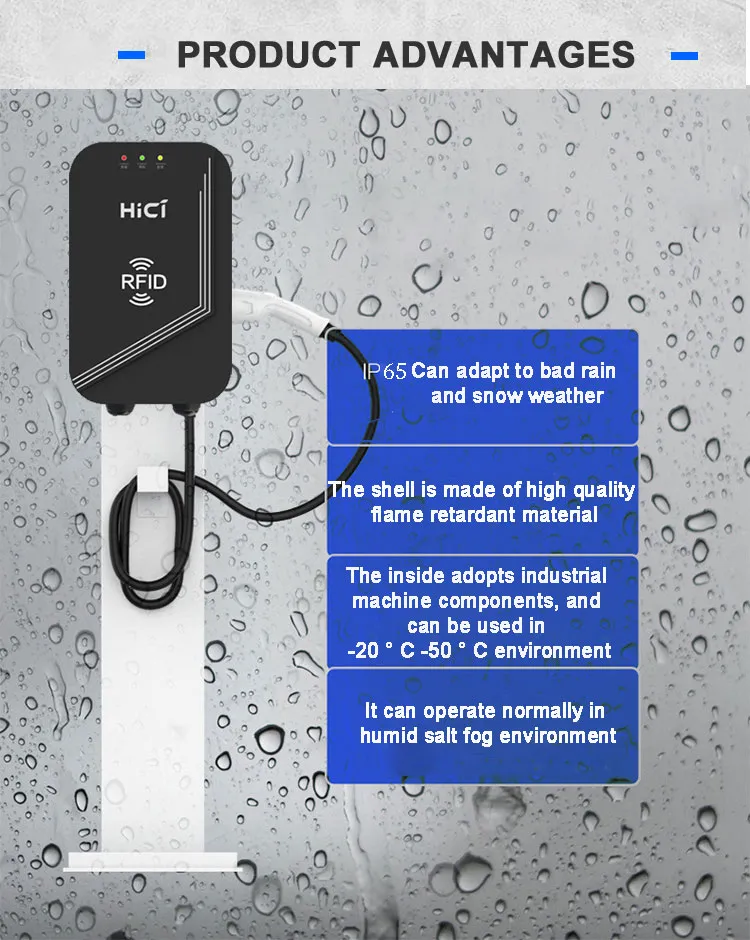

| IP & IK Rating | IP-65 and IK-10 (Cabinet) |
| Operating Temp | -30°C to +55°C |
| Dimensions | 270mm * 138mm * 400mm |
| Cable Length | 5 Meters |
