📊 Basic Information
Connectors
Gbt, CCS2, CCS1, Chademo, Nacs
Dimensions
900mm X 700mm X 1900mm
Output Voltage
200 - 1000VDC
📝 Product Description

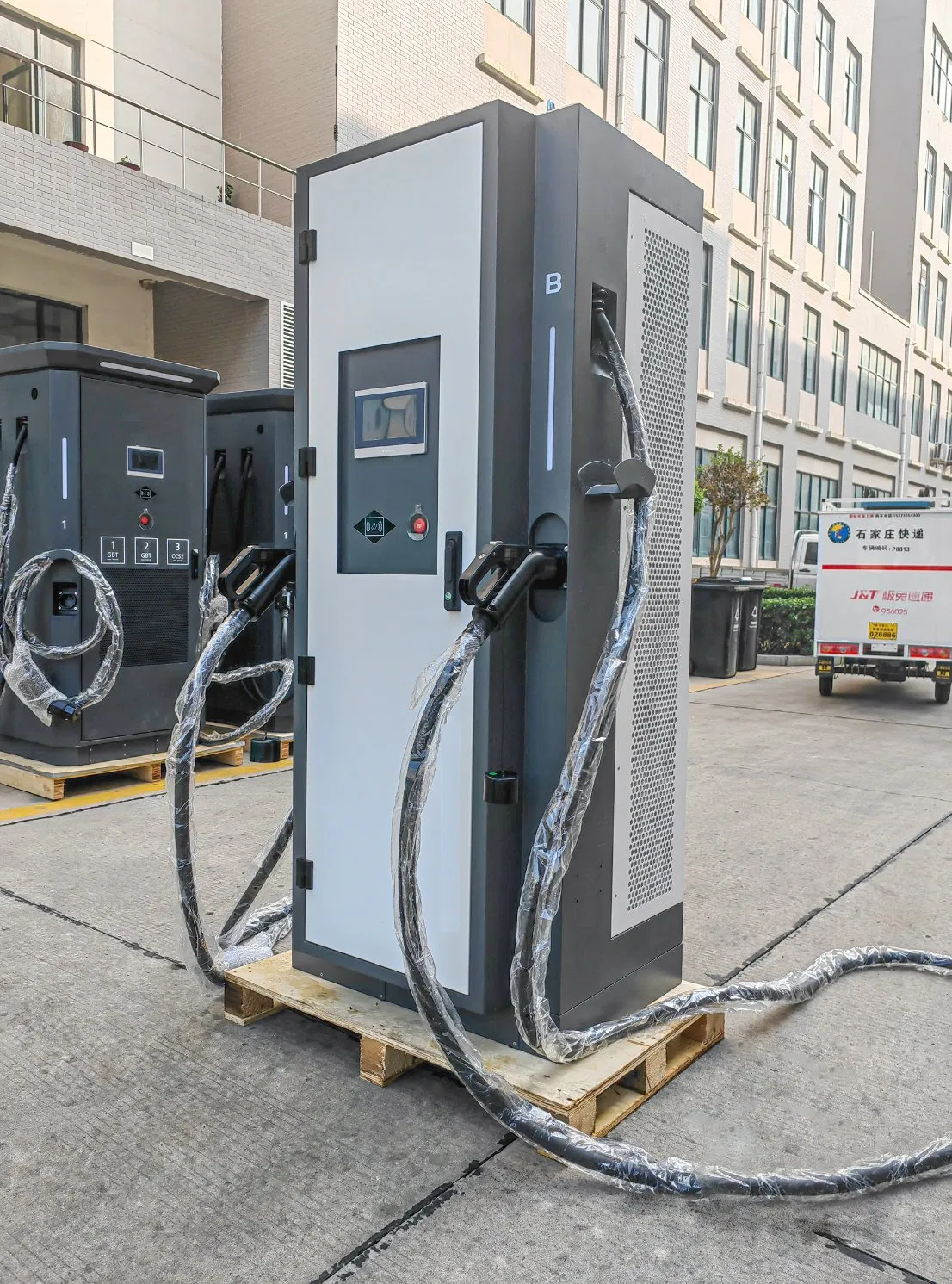

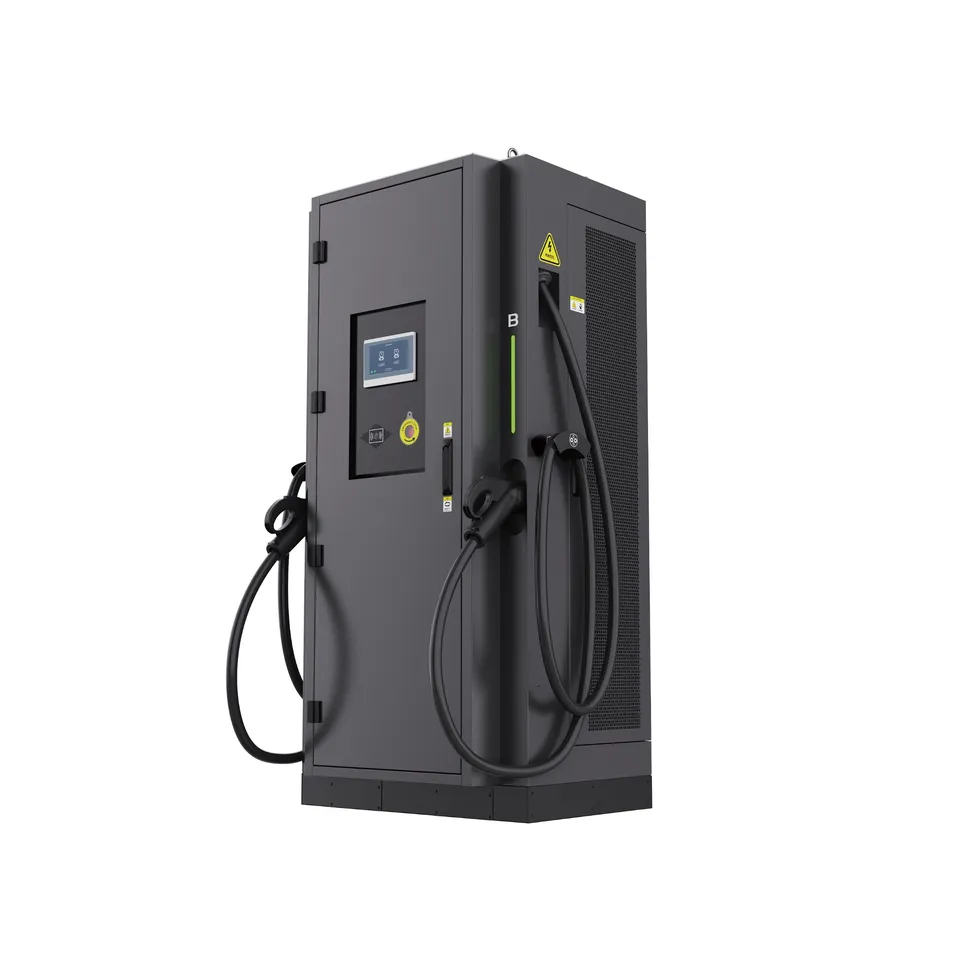

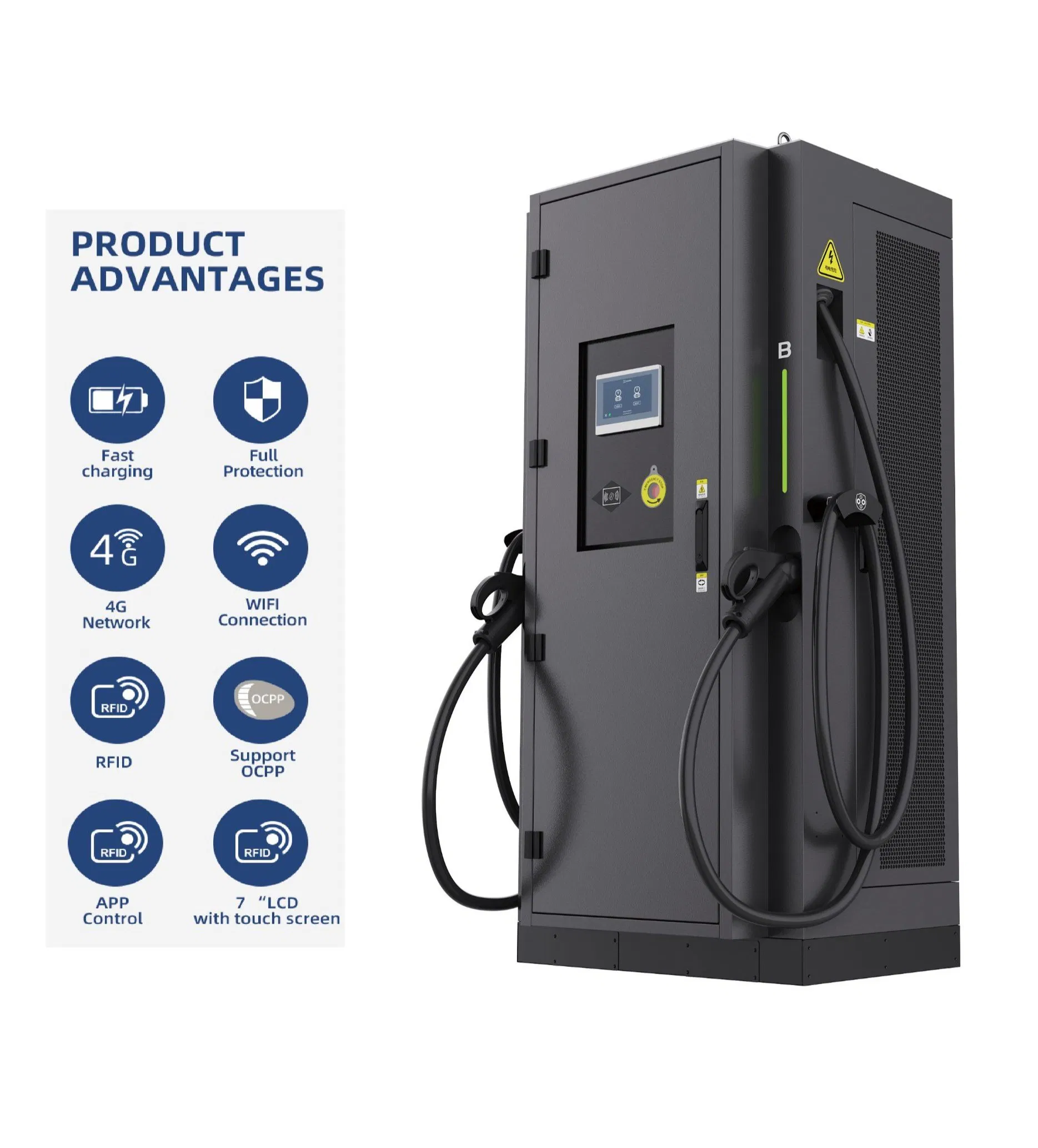

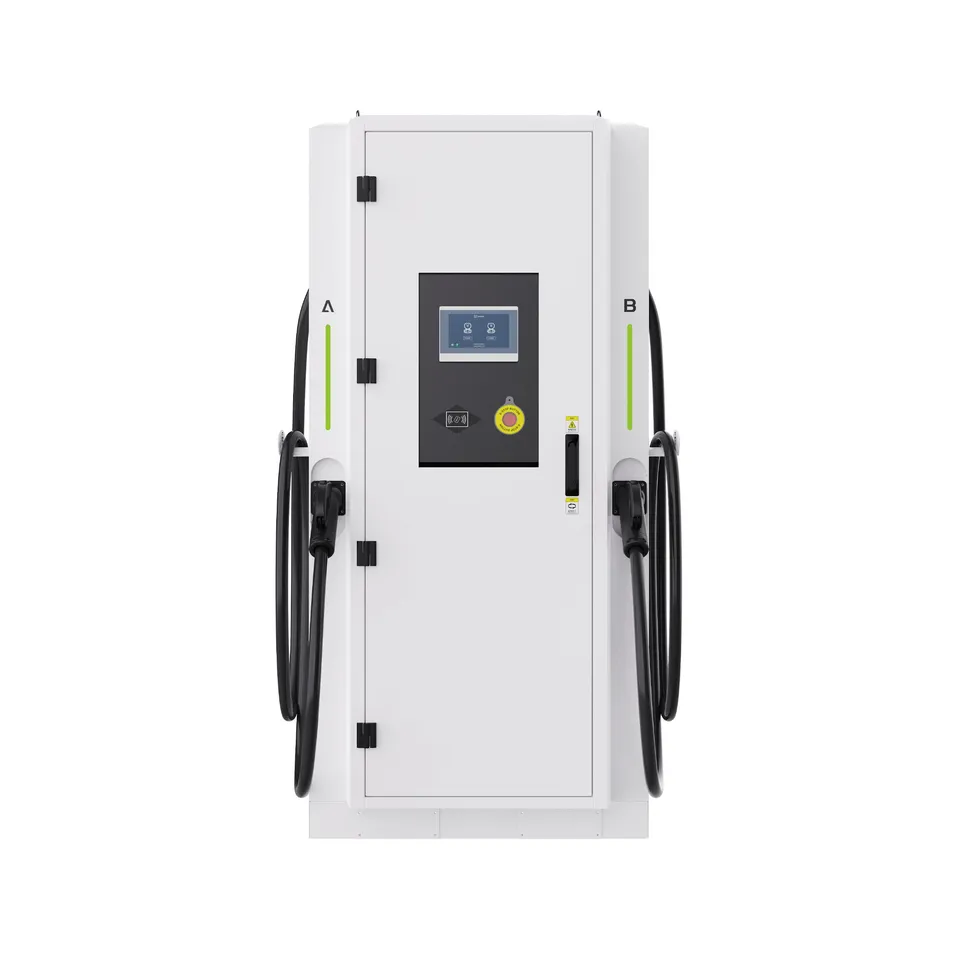

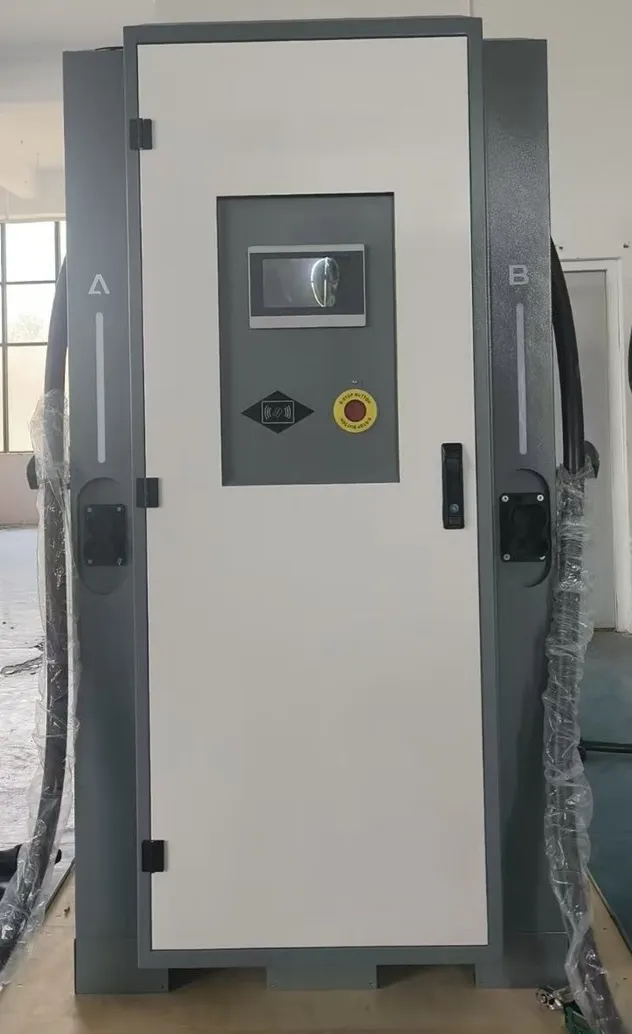

240kW-480kW High-Power Commercial/Heavy-Duty Truck Charging Station
As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent. Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet this era's demands. It is not merely a charging device but a core power engine driving green transformation in logistics, engineering, and specialized operations.
This product adopts a forward-thinking modular and highly scalable design. It comes standard with 12 high-efficiency power module slots, laying the foundation for its robust performance. Even more commendable is its power capacity, which is not fixed but offers exceptional scalability, smoothly expanding up to an impressive 480kW.
⚙️ Technical Specifications
| Appearance |
Dimensions |
900mm x 700mm x 1900mm |
| Weight |
440kg(wall-mounted) |
| Cable Length |
5m-7m |
| Connectors |
GBT, CCS2, CCS1, CHAdeMO, NACS |
| Electrical |
Input Voltage |
400VAC / 480VAC (3P+N+PE) |
| Output Voltage |
200 - 1000VDC |
| Rated Power |
240-480kW |
| Efficiency |
Peak efficiency ≥96% |
| Power Factor |
>0.99 |
| Environment |
Operating Temp |
-30°C to 75°C |
| Protection |
IP54 || IK10 |
❓ Frequently Asked Questions
What is the maximum charging power of this station?
This charging station supports a scalable power output ranging from 240kW up to a maximum of 480kW, making it ideal for heavy-duty trucks and high-capacity commercial vehicles.

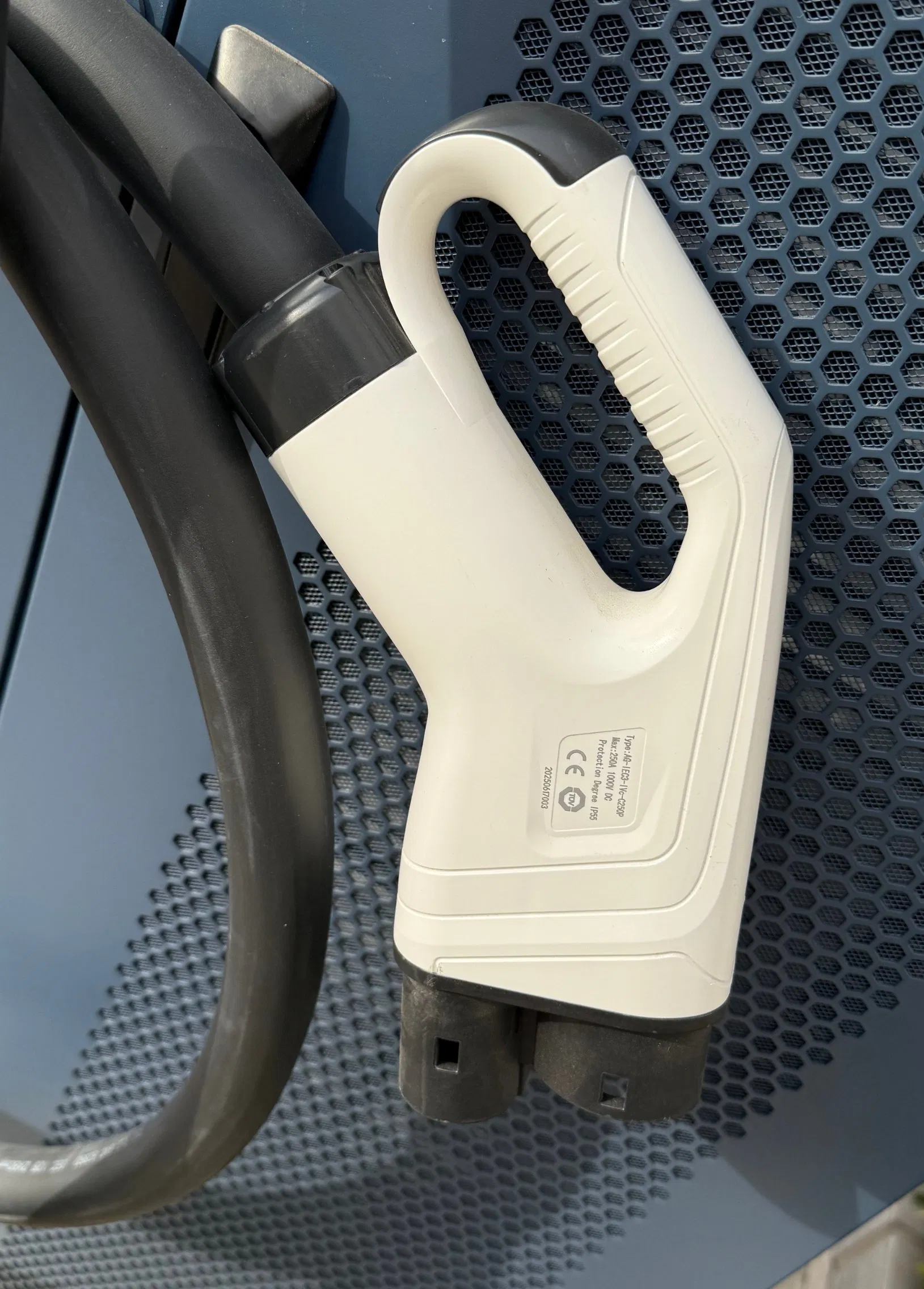

What connector standards are supported?
The station is highly versatile and supports multiple international standards, including GBT, CCS1, CCS2, CHAdeMO, and NACS.
Can it operate in extreme weather conditions?
Yes, the unit is designed for durability with an IP54 and IK10 rating, operating efficiently in temperatures ranging from -30°C to 75°C.
Does the station support remote monitoring?
Yes, it supports communication via WIFI, Ethernet, and optional 3G/4G modems, and is compatible with OCPP and other major operating platforms.
What are the safety features included?
The station includes comprehensive protection against overvoltage, lightning, overcurrent, leakage, and water. It also features a dedicated emergency stop button.
How is the cooling system designed?
The system utilizes an efficient air-cooled power electronics cooling method to maintain optimal performance during high-power charging sessions.
