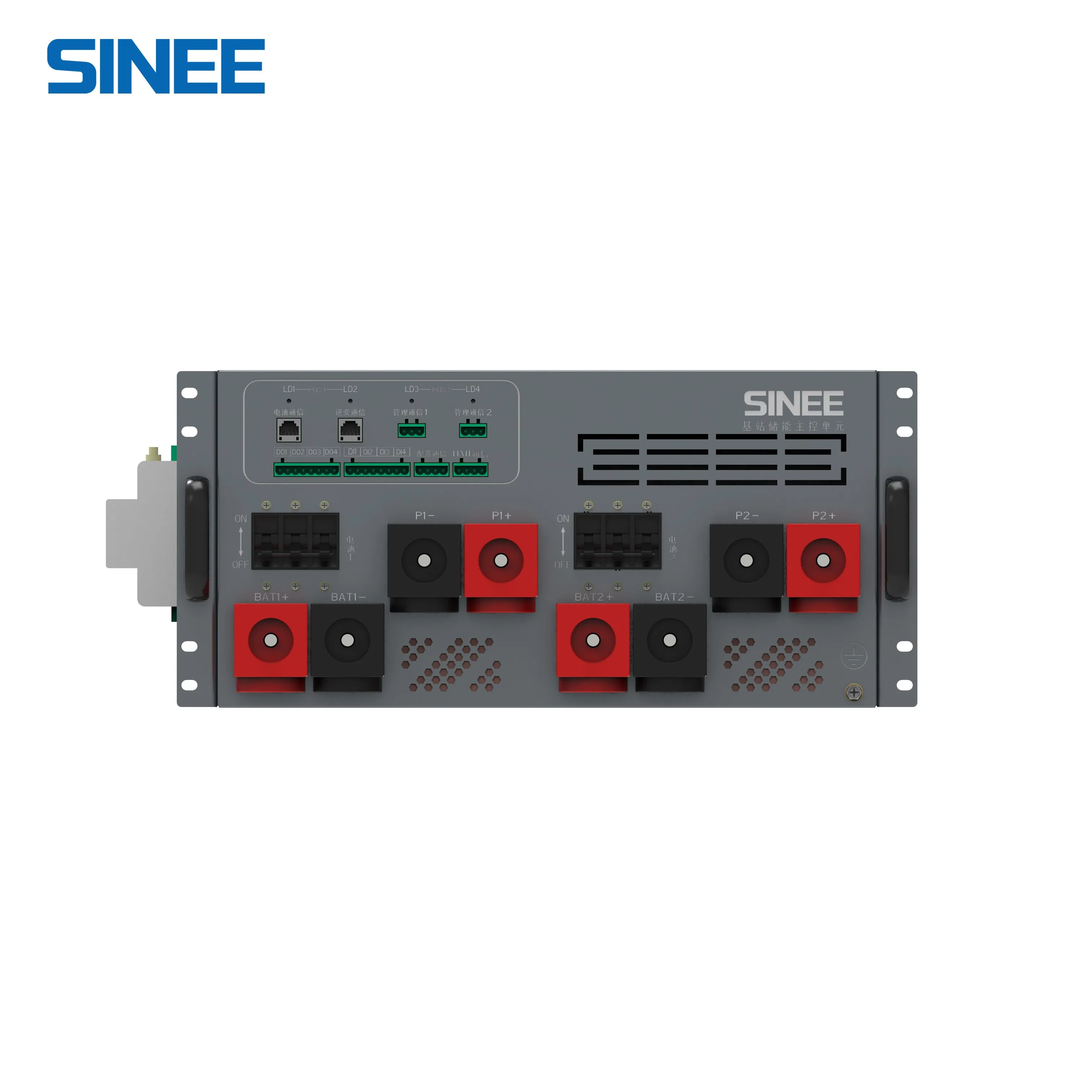

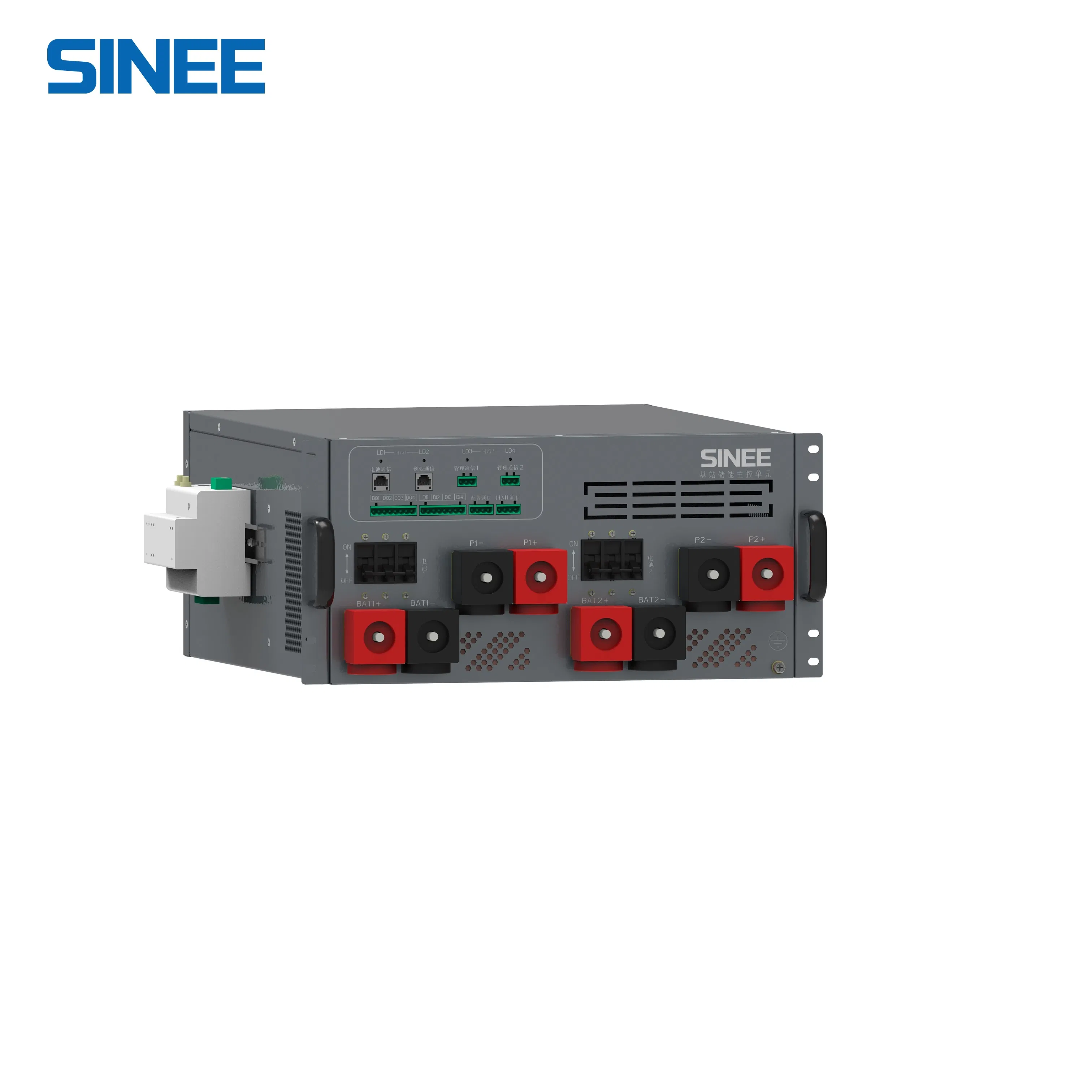

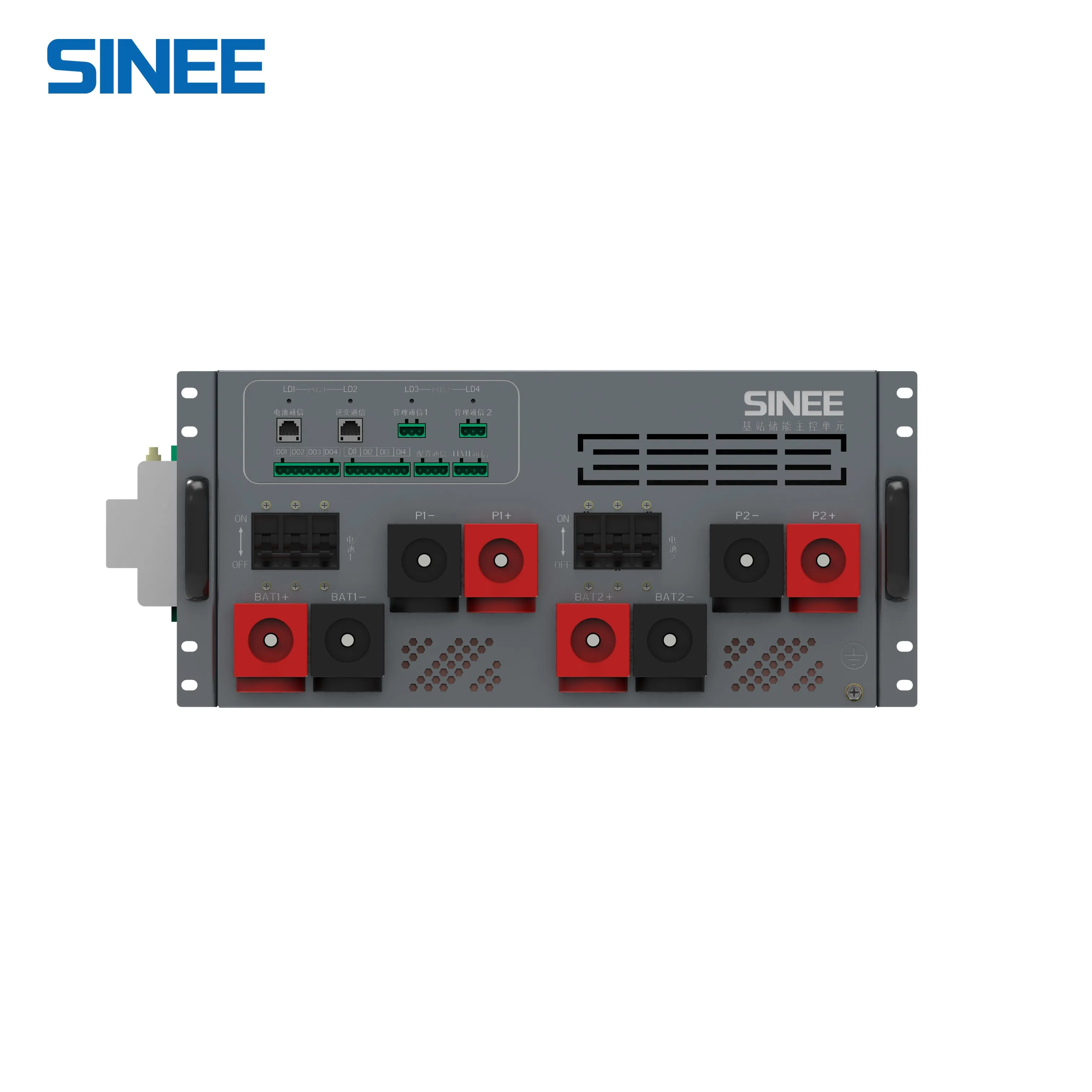

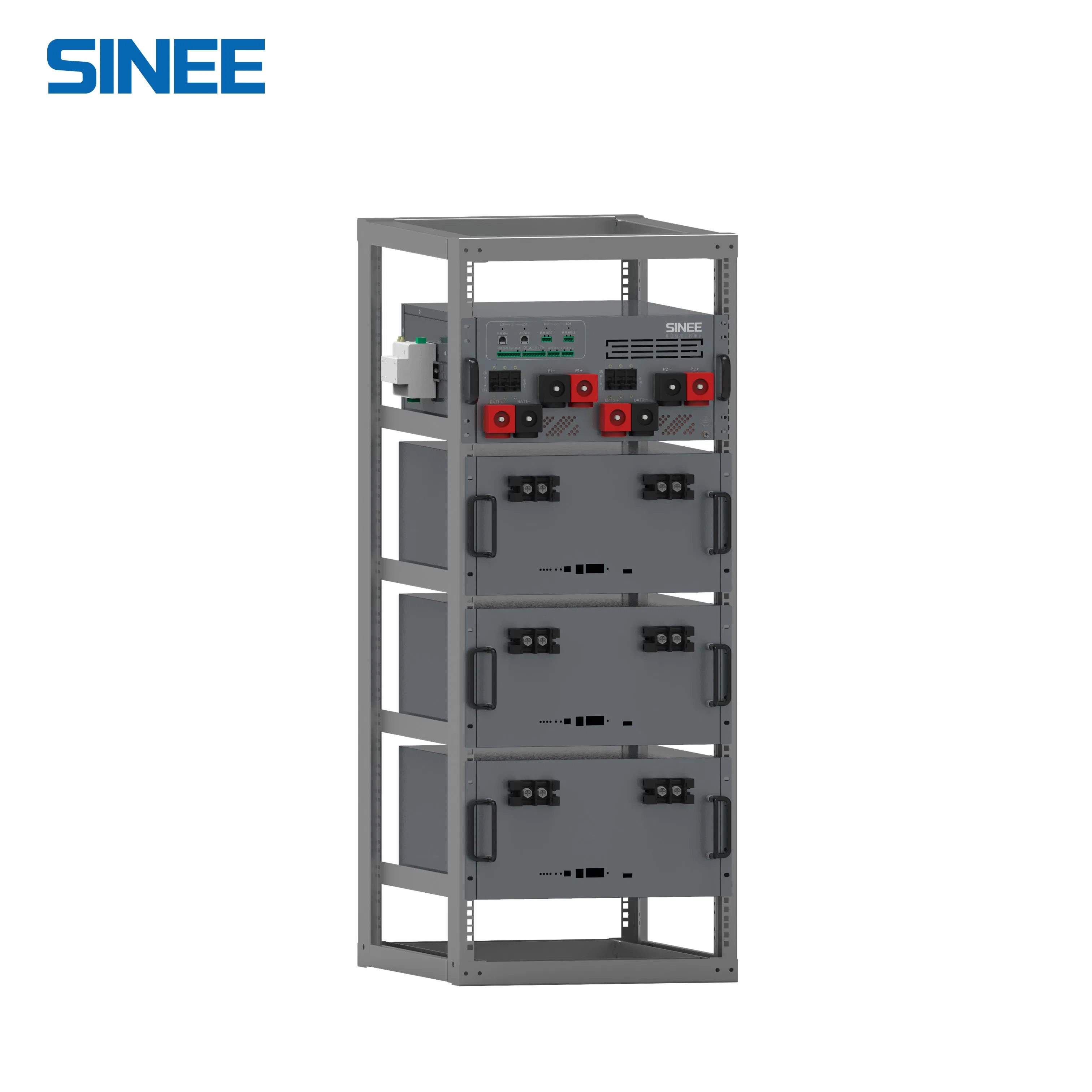

High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
1 / 5
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh
High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh

High-Voltage Industrial Communication Base Station Energy Storage Solutions Stacked Battery 5.12kwh

Customization: Available
Type: Energy Storage
Usage: Electric Power
Send Inquiry

Product Description

Basic Info.
Model NO.
Energy Storage
Nominal Voltage
48V
Discharge Rate
High Discharge Rate
Electrolyte
Li-ion
Installation
Open Frame
Rechargeable
Chargeable
Cooling Method
Air Cooling
Power
33.12kwh
Voltage
DC Bus Side 42vd-58VDC
Protection Level
IP21
Efficiency
>95%
Specification
680mm*489.5mm*1528mm
Product Description

The one-stop energy storage system for communication base stations is specially designed for base station energy storage. Users can use the energy storage system to discharge during load peak periods and charge from the grid during low load periods, reducing peak load demand and saving electricity costs.

Energy Storage System

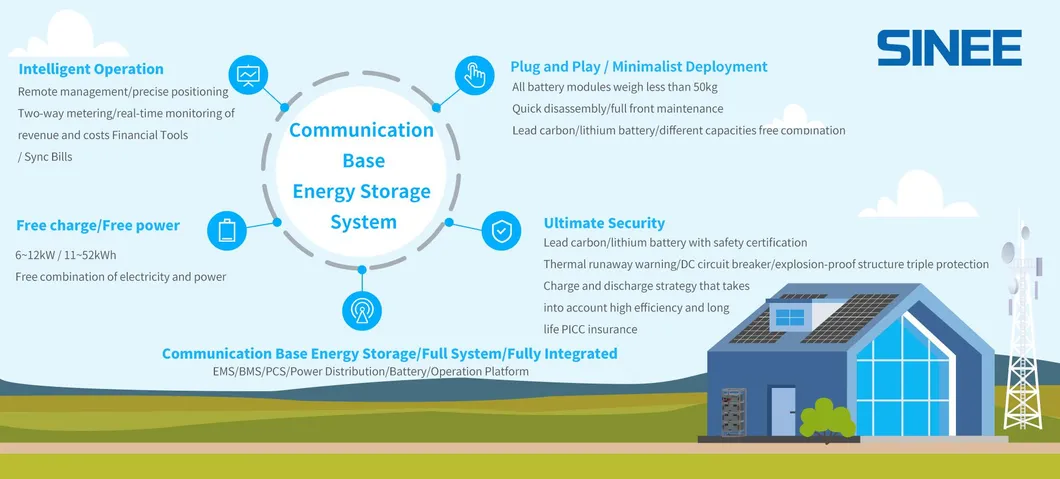

System Interface
System Integration Integrate EMS / BMS / PCS / power distribution / battery / operation platform to provide one-stop system solutions.
Independent Control Each group of batteries is independently controlled, without risk of circulation.
Safe and Stable Thermal runaway warning/DC circuit breaker/explosion-proof structure triple protection design.
Minimalist Deployment Modular design enables quick disassembly and assembly, taking only 15 minutes to complete installation.
Product Parameters
Category Lead Carbon System Lithium Battery System
Mechanical Properties Weight 860kg (2V500Ah) 370kg (3.2V230Ah)
Size(L*W*H) 1040*540*1485mm 680*489.5*1528mm
Cooling Air Cooling Air Cooling
Electrical characteristics Power 22kWh 33.12KWh
Efficiency ≥95% ≥95%
MTBF >100000 Hours >100000 Hours
Installation Instructions

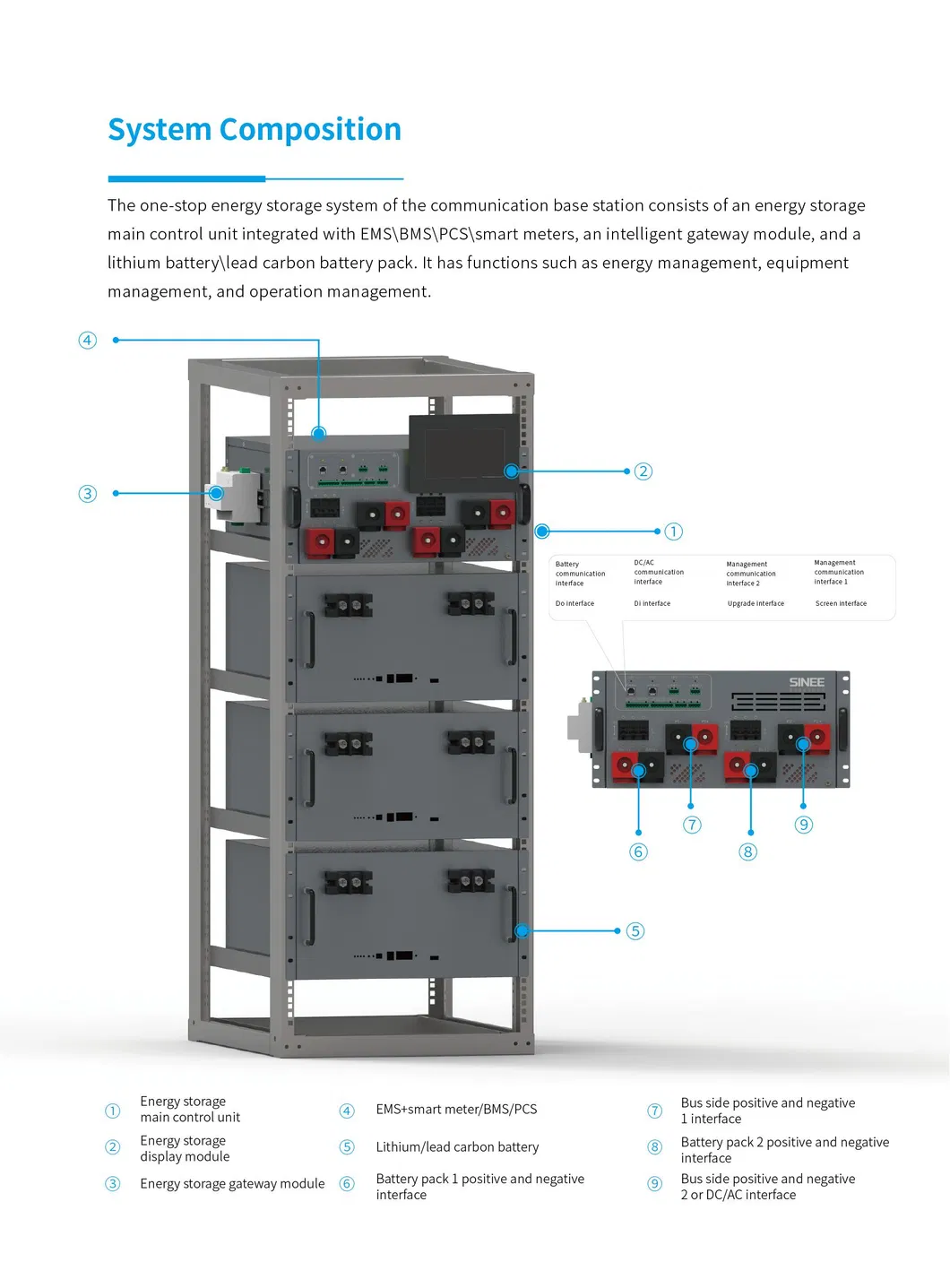

Installation Guide
Performance Visualization
Detailed Performance Chart
Frequently Asked Questions
What is the main application of this battery system?
It is specifically designed for high-voltage industrial communication base stations, providing efficient energy storage and peak load regulation.
How long does the installation take?
Thanks to its modular design, the basic installation for a base station can be completed in approximately 15 minutes.
Is the system safe for indoor use?
Yes, it features triple protection (Thermal runaway warning, DC circuit breaker, and explosion-proof structure) and is rated IP21 for indoor environments.
Can I mix different battery types in parallel?
The system is designed to be compatible with mainstream batteries, allowing different types and capacities to be used in parallel through independent group control.
What is the expected lifespan (MTBF)?
The system has a Mean Time Between Failures (MTBF) of more than 100,000 hours at 25ºC.
What is the efficiency of the energy conversion?
The system achieves high efficiency of ≥95%, ensuring minimal energy loss during charging and discharging cycles.
